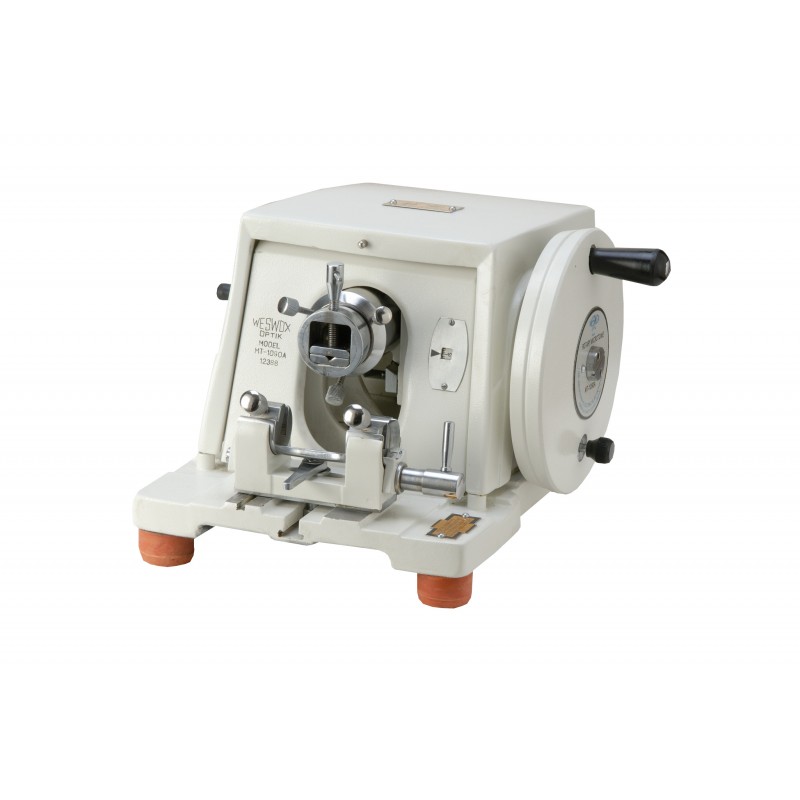

WESWOX SENIOR ROTARY MICROTOME

(SPENCER 820 TYPE). LATEST MODEL

Most suitable for disposable blade attachment

SPECIAL FEATURES :

 Surface grinding on base, horizontal, vertical and inclined slide for smooth and accurate motion.Ratchet wheel, CAM and CAM weight are made of GUN METAL.Axel and catcher made from special steel made on Imported machine.

TECHNICAL SPECIFICATIONS:

Feed adjustment - 1-50 microns (in steps of 1 micron each)

Opening of object Clamp   37x27 mm(Ball and Flange type)

Total feed excursion                     28mm

Overall Size  16"x10"x9" and approx.weight 27Kg.in  cardboard box or 60Kg in wooden case.

STANDARD ACCESSORIES:

RAZOR 120MM WITH BACK & HANDLE IN CASE                ONE

OBJECT HOLDERS DIA 22,25,28 MM                                         THREE

DUST COVER, INSTRUCTION MANUAL & OIL CANE          ONE

Other Description mentioned in e-brochure.
