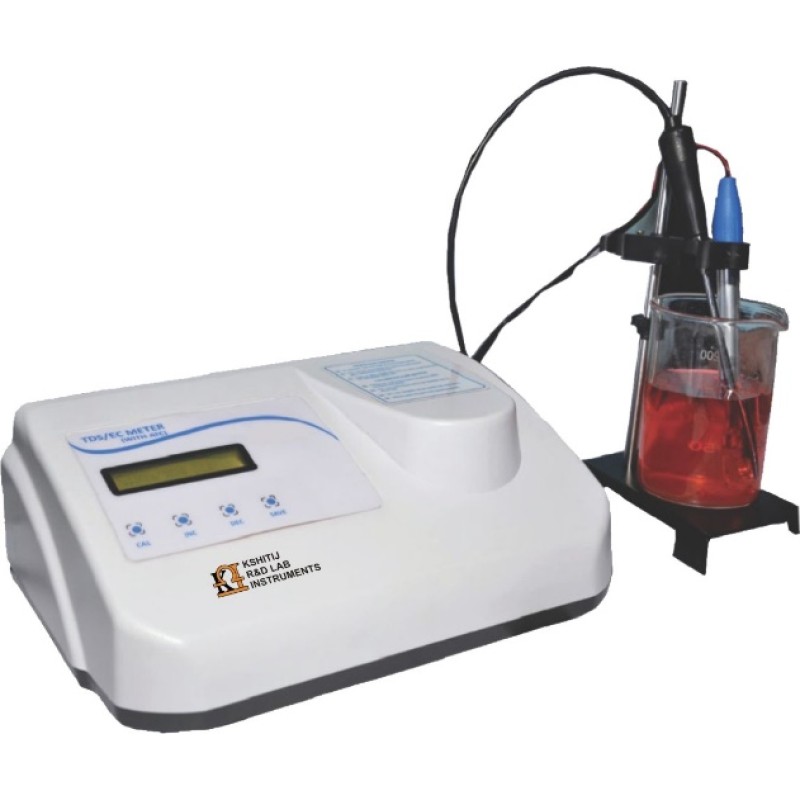

TDS/EC (Conductivity) Meter
Model No.: KI-121
Product Features:
- Auto Ranging
- Automatic Temperature Compensation.
- TDS: a to 1000 ppt Auto Ranging
- EC: a to 1000 ms Auto Ranging
- Microprocessor Based
- The high accuracy had made this our best-selling product so far!
- Total Dissolved Solid (TDS) / Electrical Conductivity (EC) Meter is a very widely used water sensor service. Aimed at measuring the total dissolved solids content in the water sample, the instrument is used for determining water quality for range of processes like purifying water for drinking to using water at commercial levels for manufacturing myriad products.
- The instrument uses the basic principle of conductivity to determine the quality of water. Pure water has the minimum conductivity, hence, through conductance, the purity level or the precise concentration of TDS in the water sample can be measured.
- Undeniably, the device is in huge demand and cater to that, Kshitij Innovation has come with various model designs to fit the purpose well. Our TDS meters feature auto ranging and temperature compensation. With a microprocessor- based controller and an attractive display, our device provides a very high resolution of 0.1 ppm TDS, 0.1 µmhos EC and a temperature resolution of 0.1 degrees Celsius. The measuring cell is made up of platinum DIP type and the device can go upto as high 70 degrees.
- With great client reviews, we have also started with customized range of TDS/ EC meters available with following specifications:
- KI- 121: As described above
- KI- 122: Comes with additional memory storage of upto 1000 samples. Very handy for analytical purposes.
- KI- 123: Our NEW GEN TDS/ EC meter! With an Android based interface and with unlimited memory storage. Most suited for lab, commercial and industrial purposes.
Technical Specifications:
Model
No. | KI-
121 |
Type | Microprocessor
Based |
Function | Display
TDS/EC/ Temperature Simultaneously |
TDS
Range |
0 to 1000 ppt Auto Ranging |
EC
Range |
0 to 1000 ms Auto Ranging |
Temperature | 0
to 70° C |
Resolution | TDS:
0.1 ppm EC: 0.1 µmhos Temp: 0.1° C |
Accuracy | 0.5%
of Range |
Cell
Constant | Adjustable |
Display | 16x2
Alphanumeric |
Measuring
Cell | Platinum
DIP Type |
Temperature
Compensation | Automatic |
Android
App | NA |
Test
Report Save Option | NA |
Power | 230
V ±10 V AC/ 50Hz |
Dimensions
(L x B x H) | 275
x 187 x 94mm(Approx.) |
Weight | 1
kg (aprox) |
Accessories
| Conductivity
Cell/ Cell Stand/ Temp. Probe/ Operating Manual |
