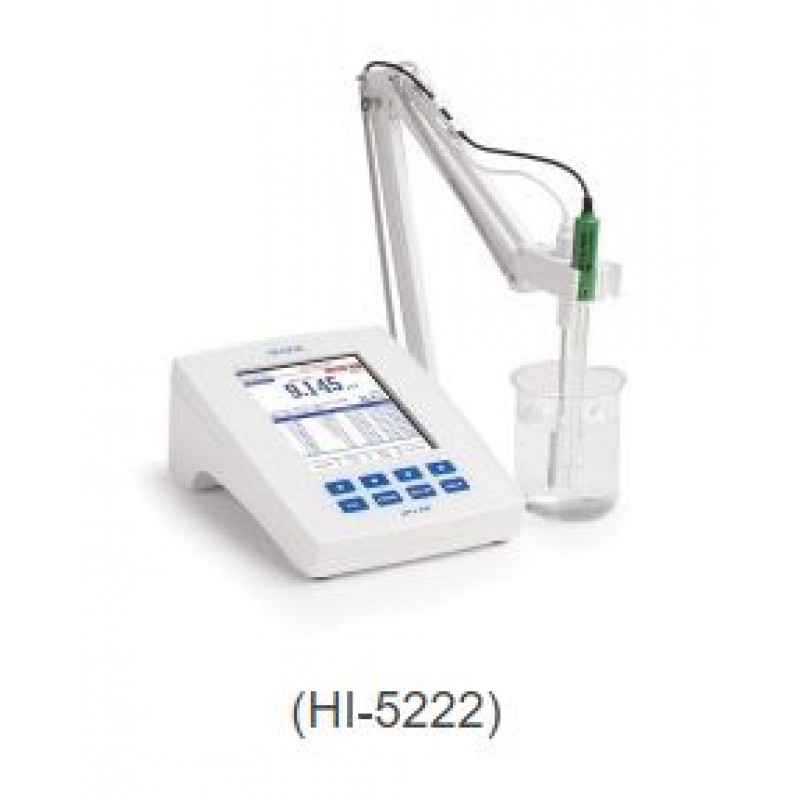

Research Grade pH ISE Meter with Calibration Check

Product Details :

Product Code : HI-5222

The HI5222 is an advanced research grade benchtop pH/mV/ISE dual channel meter that is completely customizable with a large color LCD, capacitive touch keys, and USB port for computer connectivity.

Features at-a-glance

• Highly Customizable User Interface The user interface of the HI5222 allows the user to show measurements in various modes: basic measurement with or without GLP information, real-time graphing, and logging data. Calibration stability criteria can be adjusted from fast, moderate, and accurate. Programmable alarm limits can be set to inside or outside allowable limits.
• Color Graphic LCD The HI5222 features a color graphic LCD with on-screen help, graphic, and custom color configurations. The display allows for real-time graphing and the use of virtual keys provide for an intuitive user interface.
• Capacitive Touch The HI5222 features sensitive capacitive touch buttons for accurate keystrokes when navigating menus and screens. There are four dedicated keys that are used for routine operations including calibration and switching measurement modes and four virtual keys that change based upon use. The capacitive touch technology ensures the buttons never get clogged with sample residue.
• Two Galvanically Isolated pH/ORP/ISE Channels The HI5222 has two input channels that can be used for pH, ORP and ISE electrodes. Each input channel has connectors for BNC probes, reference probes and a temperature sensor. Each channel is galvanically isolated which means that two measurement probes can be in the same solution at the same time and the voltages produced will not interfere with each other.
• Choice of Calibration Automatic buffer recognition, semi automatic, and direct manual entry pH calibration options are available for calibrating up to five points, from a selection of eight standard buffers and up to five custom buffers.
• GLP Data HI5222 includes a GLP Feature thatallows users to view calibration data and calibration expiration information at the touch of a key. Calibration data include date, time, buffers used for calibration, and electrode offset and slope characteristics.

Specifications :

• Electrode/Probe : HI1131B glass body pH electrode with BNC connector and 1 m (3.3) cable (included)
• Temperature Probe : HI7662-T stainless steel temperature probe with 1 m (3.3) cable (included)
• GLP : calibration data including date, time, buffers used, offset and slope
• Logging : record: 100,000 data point storage, 100 lots with 50,000 records/lot; interval: settable between 1 second and 180 minutes max log time; type: automatic, manual, AutoHold
• Input Channels : 2 - pH/ORP/ISE
• Display : color graphic LCD with on-screen help, graphing, and custom color configuration
• Connectivity : USB
• Environment : 0 to 50°C (32 to 122°F; 273 to 323 K), RH max 95% non-condensing
• Power Supply : 12 VDC adapter (included)
• Dimensions : 160 x 231 x 94 mm (6.3 x 9.1 x 3.7)
• Weight : 1.2 kg (2.64 lbs.)
• Ordering Information : HI5222 is supplied with HI1131B pH electrode, HI7662-T temperature probe, HI76404W electrode holder, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachet (2), HI7082 3.5M KCl electrolyte solution (30 mL), 12 VDC adapter and instructions.
