Microprocessor pH
Product Details:
- Measures pH, mV and Temperature
- 5 Point Calibration
- 128 x 64 dots Graphical LCD Display
- Auto Buffer Recognition Facility
- Storage Up to 1000 Samples
- Attachment for Serial Dot Matrix / Thermal Printer

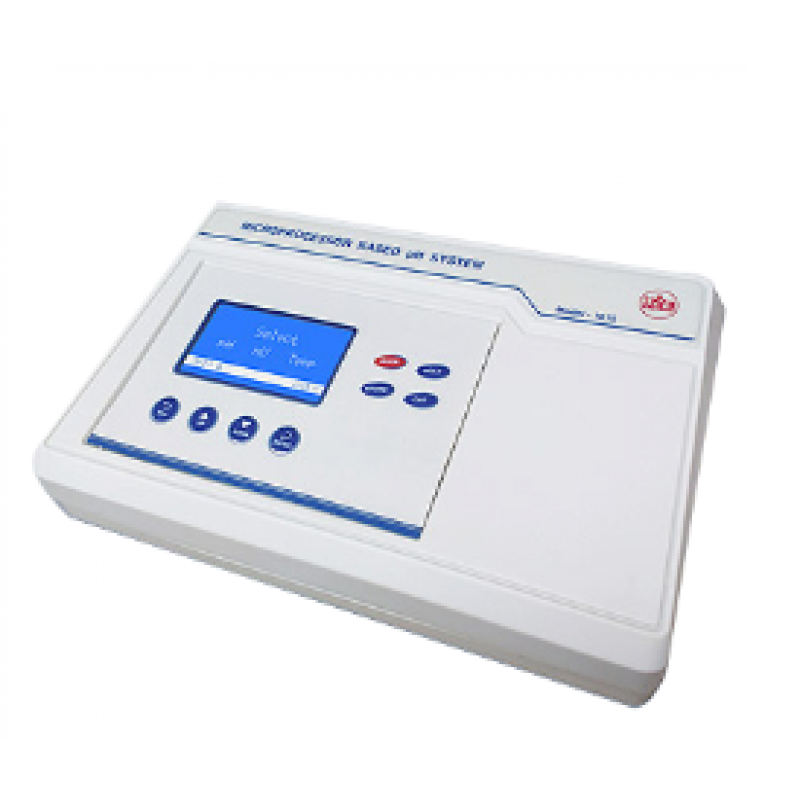

- model-1015NImage-zoom
Microprocessor Based pH Meter Model 1015 is a solid state instrument designed to provide the precise pH and mV measurements. The instrument uses the latest Microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts which guide you through out the measurement process.
The system has 8 soft touch membrane type keys for ease of operation. It has facility for doing upto 5 point calibration. It has the storage facility for 1000 samples, which are retained in the memory even when the system is switched OFF. Provision has also been provided for attachment of dot matrix / thermal printer through serial RS232 so that any of the stored results can be printed.
The instrument is extremely useful for agriculture and soil analysis laboratories, swimming pools, water quality control in boiler feed water, water works department, fertilizer plants, petroleum refineries, breweries, water purification plants etc.
Specifications
pH | |
Range | -2.000 to 20.000 pH |
Resolution | Selectable – 0.1, 0.01, 0.001 pH |
Accuracy | ± 0.002 pH ± 1 digit |
Read Out | 128 x 64 dots Graphical LCD Display |
Calibration | Auto & Manual with 5-points Calibration |
Auto Buffer Recognition | 1.680, 4.000, 7.000, 9.200 & 12.450 pH or User Selectable |
Relative Stability | ± 0.002 pH/Hour |
Temperature Compensation | 0 to 100 °C Auto/Manual |
mV | |
Range | 0 – ± 1999.9 mV |
Resolution | 0.1 mV |
Accuracy | ± 0.1 mV, ± 1 digit |
Temperature | |
Range | -5.0 to 110 °C |
Resolution | 0.1 °C |
Accuracy | ±0.1 °C |
Sensor | Semi Conductor Type |
Power Supply | 12V DC using 230±10% AC Adaptor |
Printer Interface | External Serial RS 232 Dot Matrix/Thermal Printer Interface |
Accessories | Combination pH Electrode, Temperature Probe, Buffer Tablets 4 pH & 7pH, |
