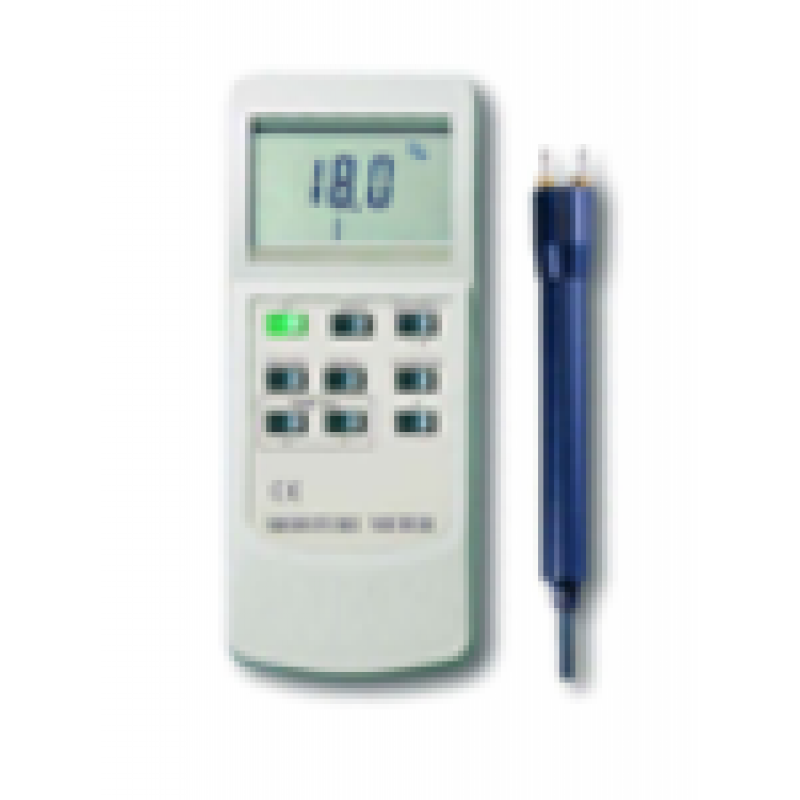

Timber Moisture Meter

We understand the value of moisture content in wood works that excessive moisture can cause major problems in their finished products. This wood moisture meter by Panomex has everything a wood worker needs. This wood moisture meter is designed for measuring moisture content of small as well as large wood samples including wood pallet etc. This handheld wood moisture meter instrument is compact in design, convenient to operate and supplied with hard carrying case, enabling users to carry it safely.

It offers measuring moisture content range over 9 % to 30 % and provides with 9 material species groups in memory calibrations for about 150 different species of wood and timber. This wood moisture meter is technologically advanced device and designed with microprocessor circuit, which assures maximumpossible accuracy, helping users to finish their products with greater efficiency. It is also energy efficient; auto-off function saves battery life and enables the instrument to use for longer time. With data hold function a user can freeze the display reading on the screen.In order to let you experience worry free performance, this wood moisture meter is supplied with a number of accessories including, carrying case, instruction manual, extra contact pins and moisture probes.

Features
Measure moisture content 9 % to 30 %	9 material species groups in memory
Calibrations for about 150 different species of wood / timber are provided	Built-in self-calibration circuit
0 to 50°C manual temp compensation setting	Microprocessor circuit assures maximumaccuracy
Large LCD with dual display	Heavy duty & compact housing case
Records Maximum & Minimum reading with recall	Data hold function to freeze the reading
Auto shut off function	Built-in low battery indicator
Separate pin type moisture probe	Compact design, easy to carry

Specifications
Model	PX-162
Moisture Range	9 % to 30 %
Operating Temperature	0°C  to 50°C
Operating Humidity	Less than 80% R.H.
Sampling Time	Approx. 0.8 second
Data Hold	By push button on front panel
Calibration	Built-in self-calibration circuit by push button on front panel
Temperature Compensation	Manual temperature compensation of the meter in the range of 0°C to 50°C
Probe	Separate 2 pins moisture electrode
Memory Recall	Records Maximum & Minimum reading value
Power Supply	006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery
Extras	Instruction manual - 1 PC. Moisture probe - 1 PC. Extra contact pins - 10 PCs. Hard Carrying Case - 1 PC.
