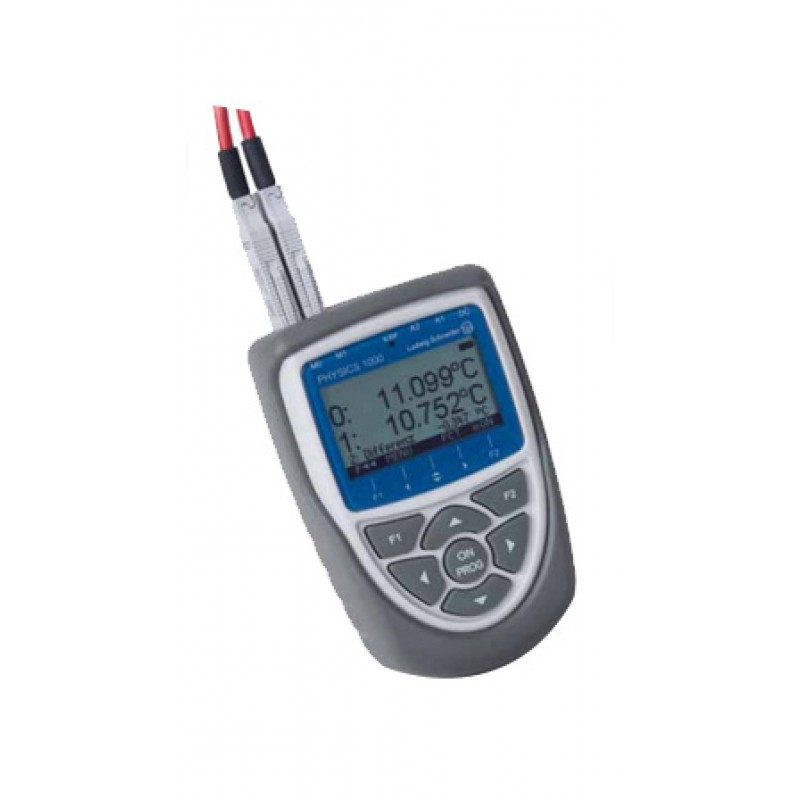

DIGITAL PRECISION THERMOMETERS

DIGITAL PRECISION THERMOMETERS

Product Details :

Digital Measuring device for thermocouples, NTC resistance thermometers, infraed temperature probes, capactivie humidity probes. Digital measuring device for precise measurments with a wide range of measuring units and sensor technologies, e.g. temperature(Pt100,thermocouples,NTC,infrared),air flow,pressure,flow rate, electrical values etc.

Beside the PHYSICS 100-1 type with one input channel was offer also type 100-2 with 2 input channels (both input channels or measuring points can be covered simultaneously.)

Complex digital measuring device with data logger function for precise measurments with a wide range of measuring units and sensor technologies, e.g. temperature (Pt100, thermocouples, NTC, infraed), air humidity, air flow, pressure, flow rate, electrical values etc.


Technical Data PHYSICS 51
Sensors:thermocouples, humidity, NTC
Measuring input:1 input channel
Measuring range:see sensor list
Galvanic isolation:Semiconductor relais (50 V)
Channels:4 function channels e.g. for dual probes
AD coverter:Delta-Sigma 15bit, 2.5 M/s
Resolution:max.0.01k
Output:2 output channels
Display graphic:2 lines,statical 7/16 segments
Display illumination:2 LEDs,white
Keyboard:7 silicon keys
Batteries:3 Mignon Alkaline
Casing:ABS (max.70 c), light gray
Degree of protection:IP54
Dimensions and weight:L 127xW 83xH 42mm, 290g
Ref-No:59235


FEATURES

  • Compact shape and ergonomic design
  • Measuring functions: measuring value, zero-setting, max-/min. value documentation, 2-step adjustment, scaling (optional: multi-point calibration for temperature values)
  • Test functions: segment monitoring, range monitoring, sensor error check, battery check.
  • Interfaces: USB, RS232, Ethemet, Bluetooth, analog
  • Language Selection: German, English, French<
