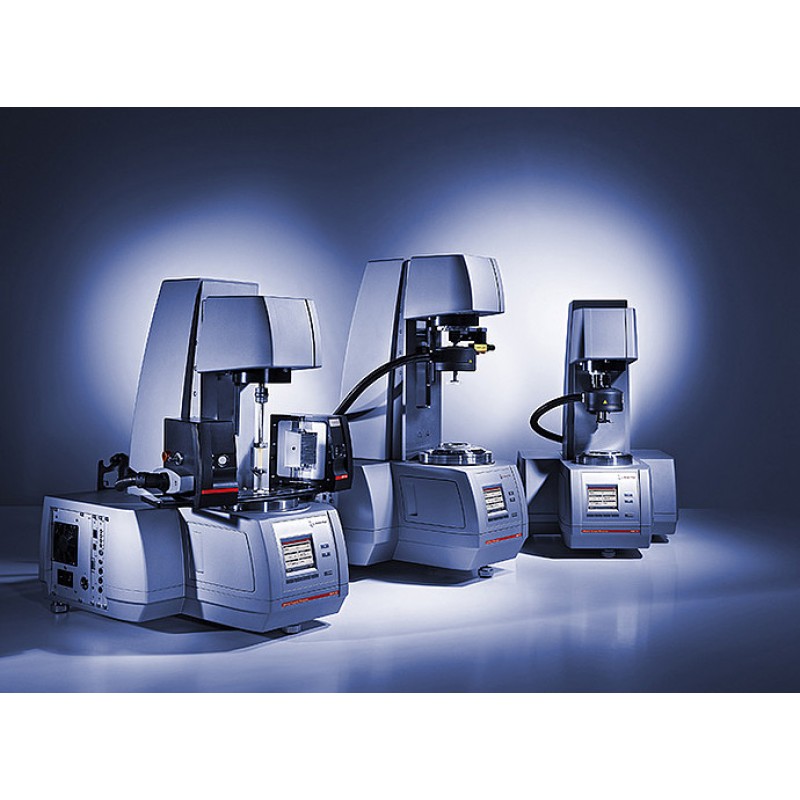

Modular Compact Rheometer:
MCR-102/302/502
Model : MCR 102/302/502 MCR 102
- The basic rheometer model: Your entry-ticket into the world of sophisticated rheological research
- Equipped with a renowned EC motor for highly accurate results
- Upgradable according to your future requirements: Further features like TruRate™ (sample adaptive motor controller) and TruStrain™ (real-time position control) optionally available
Model : MCR 102/302/502 MCR 302
- The established rheometer reference for R&D and advanced QC testing
- EC motor inside – the key to accuracy
- Adaptable according to your specific needs: Special designs e.g. with exposed support plate for special setups available on request
Model : MCR 102/302/502 MCR 302
- The strongest and most versatile rheometer model for special applications
- The integrated EC motor ensures accuracy across a wide viscosity range – from solids to liquids with viscosities lower than water

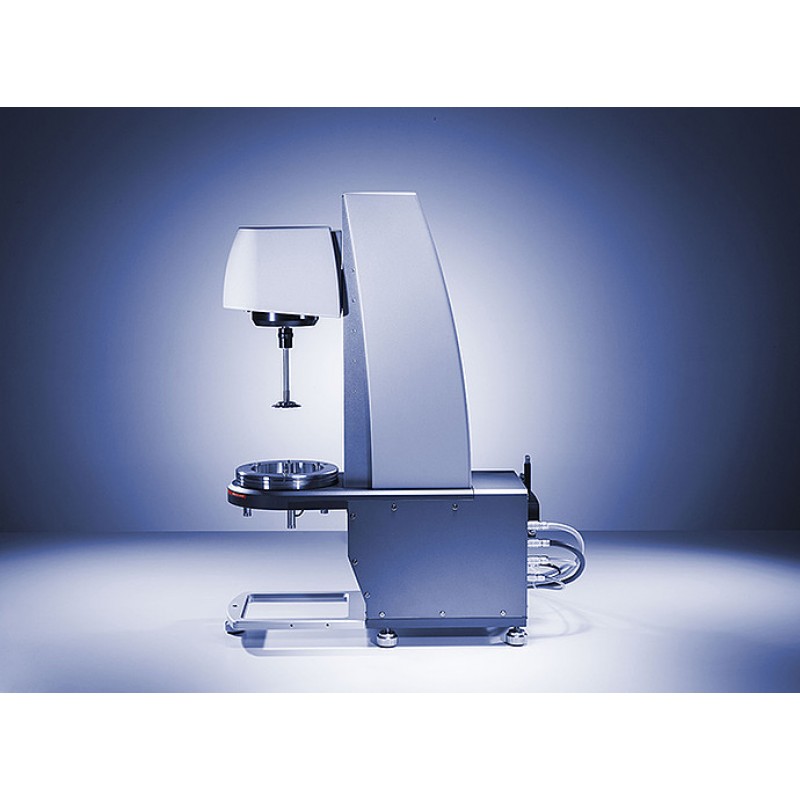

- Full flexibility: MCR 502 WESP can even be equipped with a linear motor for DMA measurements or extensive microscopy setups
The MCR rheometer series is the result of continuous development and based on decades of experience in rheology and rheometry. The combination of innovative and thousandfold field-proven technology with the robust design represents the benchmark in its class. Anton Paar rheometers are built for everyday use in the lab and are the key to all possible kinds of rheological investigations and material characterization. The application field of the renowned MCR series ranges from quality control to high-end research and development tasks.
Key Features
Unique motor and controller technology
The innovative EC-motor in combination with the low-friction air bearing, the integrated normal force sensor, and a high-resolution optical encoder form the heart of an MCR rheometer. The unique sample-adaptive controller TruRate™ (in rotation and step strain) and the fast and accurate strain control due to improved real-time position control TruStrain™ (in oscillation) guarantee highly precise measurements even at the lowest torques (<2 nNm). The steel frame is optimized for mechanical and thermal stiffness and minimizes torsional and axial compliance. The residual compliance is known and corrected during the measurement, eliminating the need for post-measurement corrections.
Designed for easy handling and error proofing
The open design enables easy and fast sample loading and trimming. The lift motor in the stand provides precise gap setting and compensates gap changes related to temperature and normal force. Due to the QuickConnect coupling, measuring systems can be exchanged with one hand. The patented Toolmaster™ technology ensures automatic recognition of measuring systems and accessories and all relevant parameters are automatically transferred to the software. The TruGap™ feature offers real-time detection of the real measuring gap, ensuring accurate gap settings even when the room temperature changes. T-Ready™ reduces the waiting time by detecting sample temperature equilibration.
Rheometer and operating software in perfect unity
The intuitive RheoCompass software offers predefined as well as customized test templates and analysis definitions. Furthermore, it is possible to export rheological data and generate reports. Data can easily be filtered by e.g. year, batch number, or operator, and displayed within seconds. Due to the Ethernet connection, the rheometer can be remote-controlled from anywhere via the company network. Gap setting, adjustments, and tests can also be started directly from the MCR rheometer, minimizing annoying switches between the computer and the device, e.g. during sample preparation.
Modularity and flexibility to meet all needs

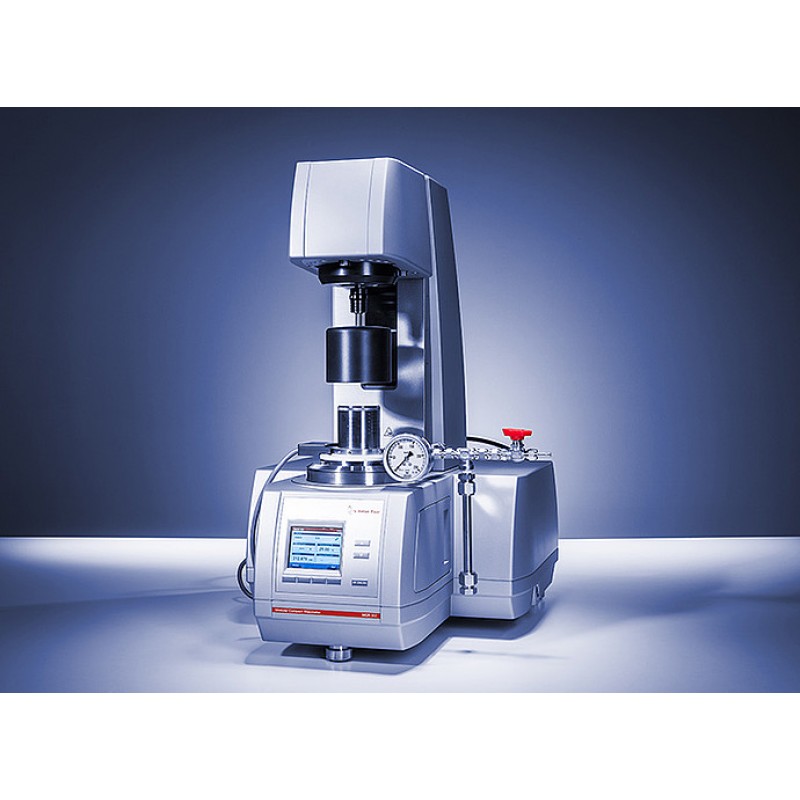

Whatever your rheological applications are and will be in the future – Anton Paar rheometers are quickly and easily adapted to meet your needs. Their flexibility makes them the most cited instruments in scientific publications on rheological investigations. An extensive range of application-specific accessories is available to extend the rheometer’s capabilities, including DMA measurements, extensional rheology, rheo-optics (e.g. microscopy and Raman spectroscopy), magneto- and electrorheology, dielectric spectroscopy, interfacial rheology, UV curing, pressure- and humidity-dependent rheology, tribology, and many more. Temperature accessories in the temperature range from -160 °C to 1000 °C are also available.
Special devices and customized solutions
Special applications demand special and customized solutions. MCR 502 S and MCR 502 WESP offer unique specifications and provide solutions for special demands in the high torque range and for maximum working space and flexibility (e.g. for the combination with a confocal microscope). Based on decades of experience in rheometry and rheology, Anton Paar can make nearly everything possible. Customized products for all kinds of specific applications can be developed and supplied. Don’t hesitate to contact us in order to discuss your requirements and to find a customized solution for your measurement task.
Technical specifications :
All instruments of the MCR series are equipped with the Toolmaster™ system for automatic recognition of the measuring system and accessories. All systems are interchangeable between the different models.
| Technical Data | Unit | MCR 102 | MCR 302 | MCR 502 S | MCR 502 WESP |
|---|---|---|---|---|---|
| Bearing | Air | Air | Air | Air | |
| EC motor | Yes | Yes | Yes | Yes | |
| Maximum torque | mNm | 200 | 200 | 300 | 230 |
| Min. torque, rotation | nNm | 5 | 1 | 100 | 1 |
| Min. torque, oscillation | nNm | 5d | 0.5 | 100 | 0.5 |
| Angular deflection (set value) | µrad | 0.5 to ∞ | 0.05 to ∞ | 0.05 to ∞ | 0.05 to ∞ |
| Min. angular velocity | rad/s | 10-8 | 10-9 | 10-9 | 10-9 |
| Max. angular velocity | rad/s | 314 | 314 | 220 | 314 |
| Max. speed | 1/min | 3000 | 3000 | 2100 | 3000 (6000)a |
| Min. angular frequency | rad/s | 10-7 | 10-7 | 10-7 | 10-7 |
| Max. angular frequency | rad/s | 628c | 628c | 628c | 628c |
| Normal force range | N | 0.01-50 | 0.005-50 | 0.01-70 | 0.005-50 |
| Normal force resolution | mN | 1 | 0.5 | 1 | 0.5 |
| Max. temperature range | °C | -160 to +1000 | -160 to +1000 | -160 to +1000 | -160 to +1000 |
| Toolmaster™ | Yes | Yes | Yes | Yes | |
| QuickConnect | - | Yes | Yes | Yes | Yes |
| Automatic gap control / setting (AGC/AGS) | - | Yes | Yes | Yes | Yes |
| TruGap™ | - | Yes | Yes | Yes | Yes |
| MultiDrive-ready | - | No | No | No | Yes |
| Direct strain controller | - | Yes | Yes | Yes | Yes |
| Direct stress contoller | - | Modular Compact Rheometer
