Microprocessor Haemoglobin Meter

Product Details :

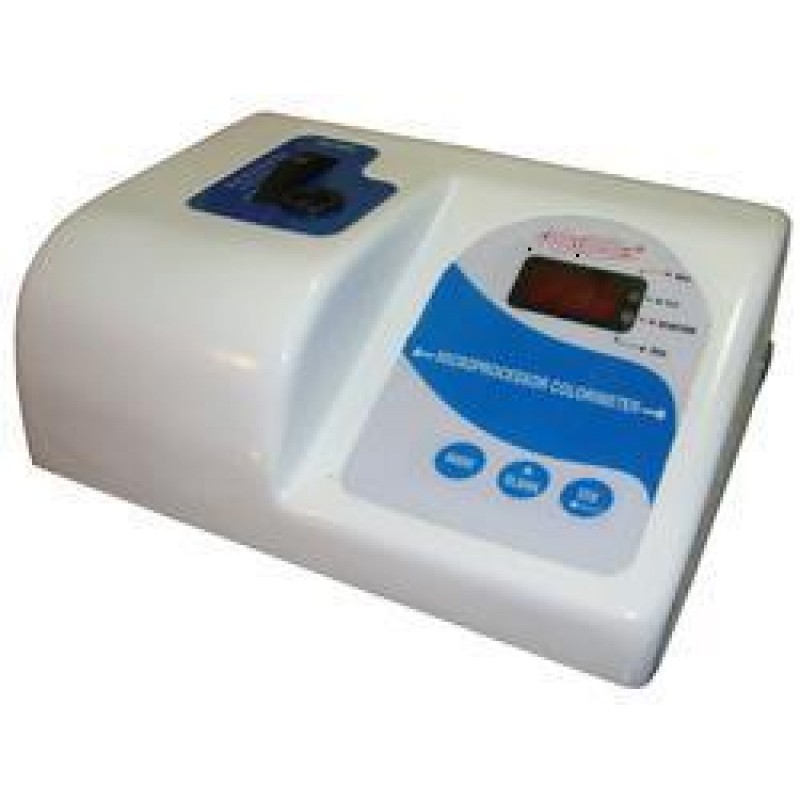

Microprocessor Hemoglobin Meter 917

Features:-

• Direct Display in Hb. units
• 1 ml Sample Volume
• Highly Stable & Easy To Operate
• Storage of Factor in Memory

Microprocessor Hemoglobin Meter – 917 is used to determine the hemoglobin concentration in the blood sample. The measurement hemoglobin concentration is carried out at wavelength of 546 nm. Using state-of-the-art LED technology the green light produced is projected through the sample and measured by sensitive photodiode. The measurements are made using cyanmet hemoglobin method used through the world.Heamoglobin is an iron-containing protein found in the red blood cells .It enables the red cells to carry oxygen from lungs to the rest of the body and carry carbon dioxide back. The haemoglobin level indicates the blood’s oxygen-carrying capacity and can play a major role in the early diagnosis of many illnesses such as thelsemia, sickle cell anemia, leukemia, malaria and hook worm etc.

SPECIFICATIONS

• Measuring Method
• Cyanmethemoglobin
• Measuring Range
• 0 - 30 gm/dl of Hb.

Dilution Ratio

• 1:25 I

Sample Volume

• 1 ml

Display

• 3 Digit 7-Segment Red LED Display

Wavelength

• 546 nm

Keyboard

• 3 Keys, Soft Touch Memebrane Type
• Zero Setting
• Automatic
• Calibration
• Automatic
• Detector
• Highly sensitive silicon photodiode

Power

• 230 V ± 10% AC, 50 Hz

Dimensions

• (L x B x H)
• 195 x 235 x 105 mm (Approx.)

Weight

• 2.5 Kg. (Approx.)

Accessories

• Matched Test Tube: (A set of 5), Spare Lamp,
• Operation Manual and Dust Cover
