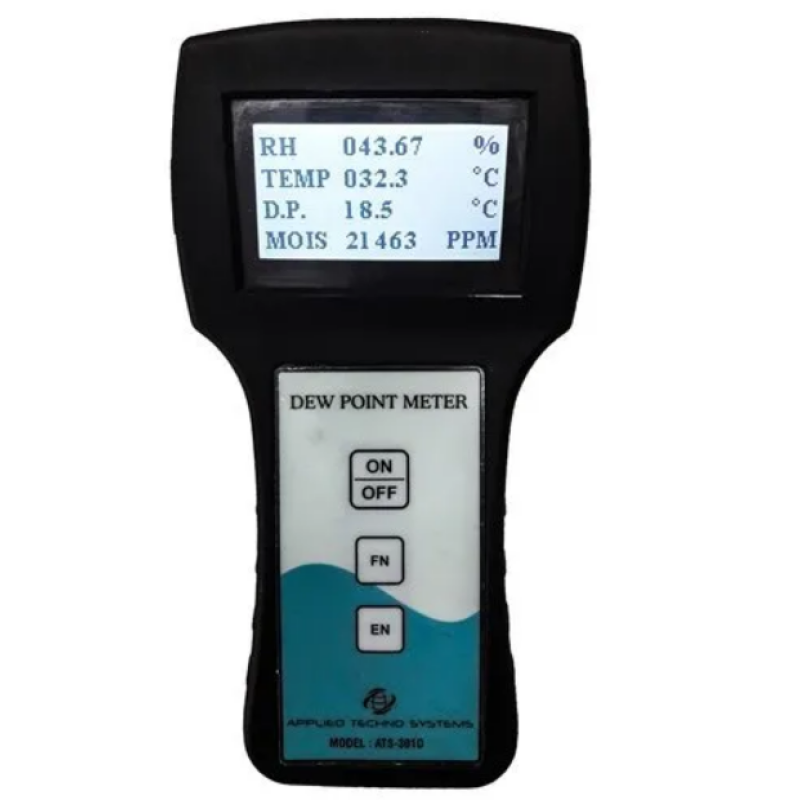

Handheld Digital Portable Dew Point Meter

Product Details:

Usage/Application	Industrial
Brand	Applied Techno Systems
Accuracy	+/- 2%
Material	Plastic
Color	Black
Operating Humidity Range	< 85%RH
Size/Dimension	130 X 250 X 90 mm (W x H x D)
Display Type	Digital
Weight	0.5 Kg.
Country of Origin	Made in India

We are engaged in offering our clients a high quality range of Handheld Digital Portable Dew Point Meter. The offered meter is manufactured as per the set industry standards using quality approved raw-material and latest technology. Offered meter is designed to measures dew point, Moisture and temperature faster and accurately over a wide measurements range .Keeping in mind the diverse necessities of our clients, we provide thus meter in various specifications. In order to ensure the quality of the offered meter products, our skilled professionals perform a series of test against various parameters. Relative humidity and dew point both give us an idea of the amount of moisture in the atmosphere; however only dew point is a true measurement of the atmospheric moisture. Relative humidity is defined by the National Weather Service as the amount of atmospheric moisture present, relative to the amount that would be present if the air were saturated. But what does that really mean In short, the relative humidity is a function of both the moisture content in the atmosphere and the actual air temperature. By itself, it does not directly indicate the amount of moisture present in the atmosphere.

Features:

• Smooth functioning

• Low maintenance

• Sturdiness

Application:

• Dryer & Compressed Air

• Laboratory Analysis

• Light bulb manufacturing

• Industrial gas manufacturing

• Heat treatment/Food Packaging

• Petrochemical / Petroleum industry

Specifications:

• Principle Thin Film Capacitive

• Range Degree C, PPM & % RH

• Resolution 0.1 Unit or 1 Unit (Application based)

• Sampling Method Direct Plug In

• Display 128 X 64 Graphics LCD

• Power Source Built in Lithium Rechargeable battery

• Accuracy +/2%

• Response Time <5 Second

• Data Storage 5000 or 10000

• Computer Interface RS 232, USB

• Sensor Life 2-3 Years

• Operating Time 6 - 8 hours


Environmental:

• Temperature-15degree Celsius Humidity < 85%RH Atmosphere Pressure 86- 106Kpa

• Housing High Impact Plastic

• Dimension in mm 130 (W) X 250 (H) X 90(D)

• Weight 0.5 KG

• Warranty One Year
