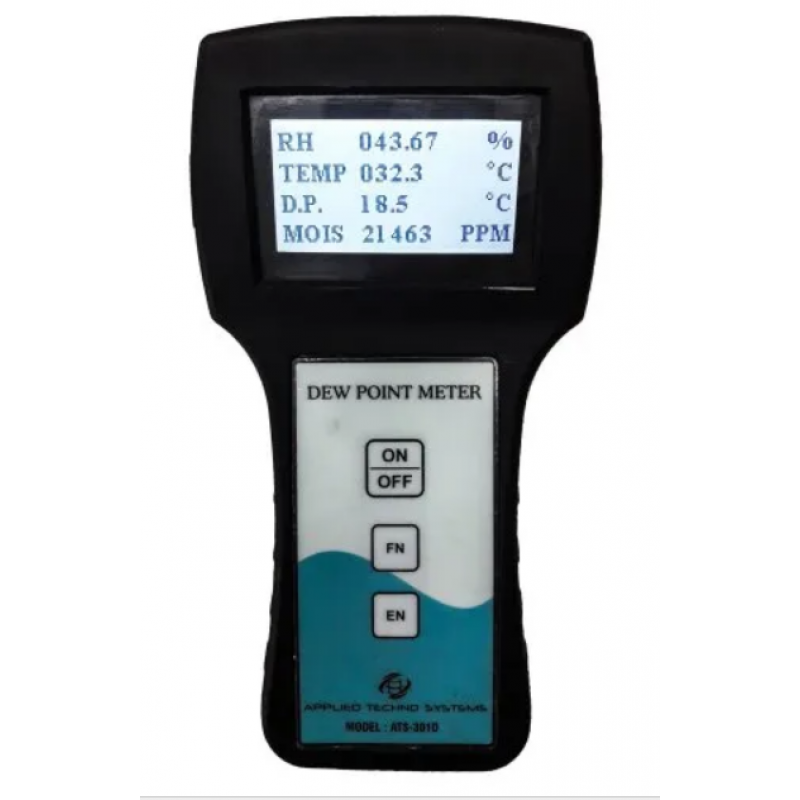

Handheld Digital Dew Point Meter

Product Details:

Usage/Application	Industrial
Brand	Applied Techno Systems
Operating Temperature	15 Degree C
Accuracy	+/- 2%
Material	Plastic
Operating Humidity Range	< 85%RH
Size/Dimension	130 X 250 X 90 mm (W x H x D)
Display Type	Digital
Weight	0.5 Kg.
Country of Origin	Made in India

We are the manufacturer of Handheld Digital Dew Point Meter with range of -80 to + 30 Deg C in India Dew Point Indicator Applied portable handheld battery operated Dew Point Meter model ATS-301D are designed to measures dew point, Moisture and temperature faster and accurately over a wide measurements range . Model ATS-301D is highly optimized to measure the dew point, moisture and Temperature for dryers and compressed air/gases.
Specifications:

• Principle: Thin Film Capacitive Sensor

• Range: Degree C, PPM & % RH

• Resolution: 0.1 Unit or 1 Unit (Application based)

• Sampling Method: Direct Plug In, Optional suction pump

• Display: 128 X 64 Graphics LCD

• Power Source: Built in Lithium Rechargeable battery

• Accuracy: /2%

• Data Storage: 5000 or 10000

• Computer Interface: RS 232, USB

• Sensor Life: 4-5Years

• Operating Time: 6 – 8 hours

• Temperature:-15degree Celsius

• Humidity :< 85%RH Atmosphere

• Sample Inlet Pressure: 12kg/cm2

• Housing: High Impact Plastic

• Dimension in mm: 130 (W) X 250 (H) X 90(D)

• Weight: 0.5 KG

• Warranty: One Year
