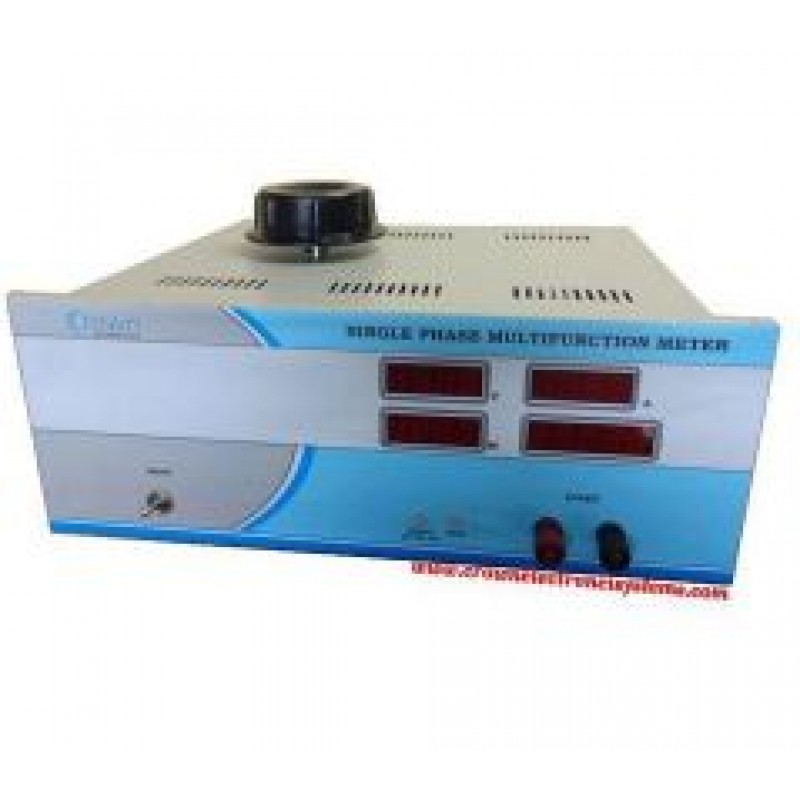

Digital Multi Function Meter with source

Product Description :

Digital Multi function Meter

Our company is a renowned entity famous for manufacturing and exporting an excellent quality range of Digital Multi function Meter. We have manufactured the meter under the strict guidance of diligent professionals. The offered stock of meters has gained immense appreciation among clients due to its salient features such as user friendly operation, accurate results and durability. Multifunction Meter with AC Source is used in transformers, stabilizers, UPS, inverter, CFL and LEDs.

Technical Specifications  of Digital Multi Function Meter with source:

• Input voltage : 20-500 v ac
• Input current : 10ma-2a/50ma-20 a/0.1-80 a
• Measurement : true rms
• Resolution : floating decimal point
• Accuracy : class 0.2 and for p.f. + 0.005
• Display : four rows 7- segment display
• Aux. Supply : 230v + 20%

Further Details:

Source with LED Display is developed to make the testing Simple, Faster, Reliable with its high performing DSP based circuitry It is useful for various industries in Electrical Machines, Power Electronics and Lighting devices. The high speed simultaneous sampling using 24-bit ADC ensures True RMS measurement for the wide range of input Voltage and Current. This instrument displays Voltage, Current,Frequency, Active Power, Power Fac to rand Apparent Power simultaneously in a 7-Segment Display. The measurement is valid at all power factors and gives accurate results even in the presence of harmonics in the system.The Meter is provided with Hold facility. The functionality of the meter is further enhanced with PC interfacing facility through USB Port. The accompanying software in capable of Data Logging and viewing the Meter Variables in real time on computer using the GUI provided. This Meter is provided with SD memory card facility to save up to 10000 test results with serial no. and data can be retrieve later by inserting this card to PC or Laptop.
