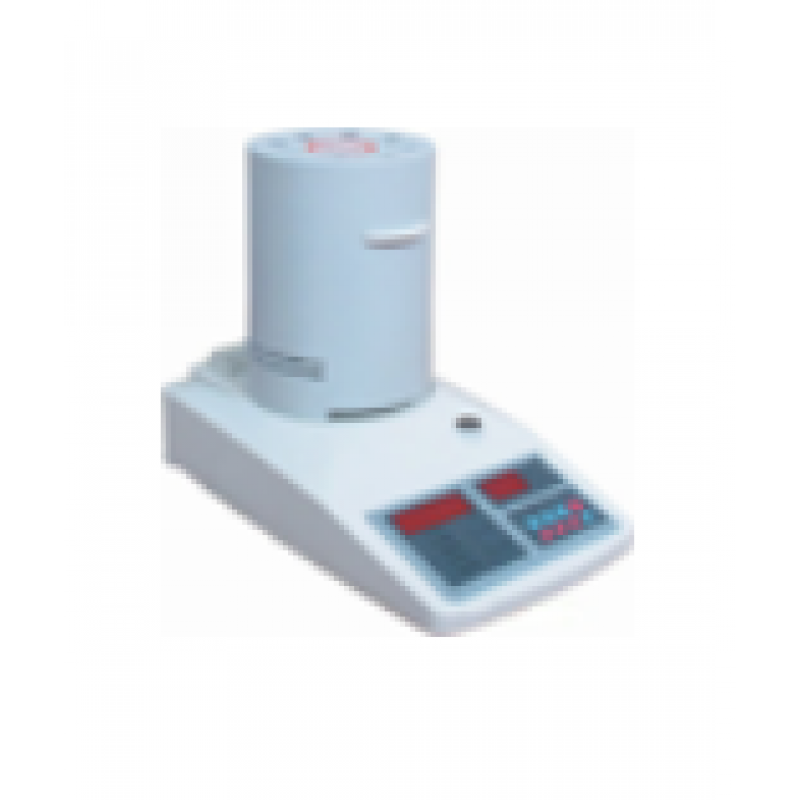

Digital Infrared Moisture Meter

Our digital infrared moisture meter is fast and innovative test instrument that can be used to measure the moisture of any material (excluding the substances which generate dangerous chemical reaction through heating). This portable infrared moisture meter is designed in accordance with the thermo gravimetric principle. While the instrument measures the weight of samples, infrared heating units and water evaporation channels dries samples rapidly too.

In the drying process, instrument measures continually and displays immediately the lost moisture (%) of the samples in the process. When the drying is completed, the finally measured moisture is locked. Press the display button, data such as the moisture value, the starting value of the weight, the initial value and measuring time can be observed.

Infrared heating can be achieved in maximum heating power in the shortest possible time as the samples are dried rapidly in high temperature can greatly accelerate the measurement time. The instrument is perfect for all the fields that need high speed moisture measurement such as, medicine, grain, tobacco, chemicals, tea, foods, textiles, agriculture and forestry, etc. This infrared moisture instrument is able to communicate with computer via RS232 interface. Measuring data of moisture can be printed out though the computer or directly by the printer matched.

Specifications
Model	PX-165
Moisture Range	0% to 100%
Measuring Accuracy of Moisture	0.5% Amount of Samples ≥ 0.5 g
Weight of Measurement Samples	0.5g - 60g
Readability of Moisture	0.01%
Temperature Indication Ranges	Room Temperature -160°C
Display Parameter	7 kinds
Communication Interface	Standard RS232 Interface
Temperature of the Sample	-40°C to 50°C
Temperature of the Working Environment	-5°C to 50°C
Relative Humidity	≤ 80% R.Η.
Baud Rate	9600 / S Bit
Communication Model	MCS51 Series Single-Chip Communication Model 2
Power Supply	220 v± 10% Frequency 50HZ± 1HZ
