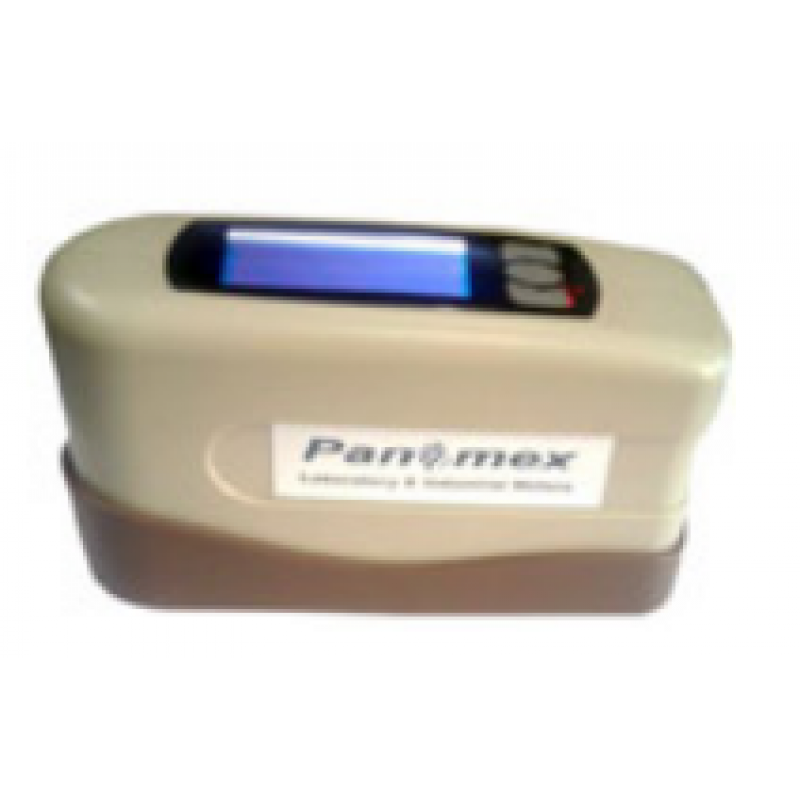

Digital Gloss Meters for Single and Triangle Measurements
Especially designed for accurate gloss values, Panomex Inc. brings to you a range of gloss meters that feature single or triangle measurements with high precision gloss measurements on various surfaces of materials including metals, floors, granite, plastic and paper etc. These instruments are manufactured according to international standards including ASTM D2457 and ISO2813 etc.
Our PX-GMS is all-in-one gloss meter, which simultaneously measures all three geometries 20°, 60°, 85°. It is definitely the best value instrument available on the market today at highly competitive price. It features super clear LCD display and able to perform non-destructive gloss measurement with superior accuracy.
Both of our digital gloss meters are simple to use and can be operated on battery and mains supply. Large memory storage makes it suitable for continuous working and keeps the measurement data safe for further analysis, which can be transferred into computer through USB interface or PC software. There is a provision to attach printer, helps in exporting readings via print. With optional memory SD card you can increase memory as large as you need.
Our PX-GMS is all-in-one gloss meter, which simultaneously measures all three geometries 20°, 60°, 85°. It is definitely the best value instrument available on the market today at highly competitive price. It features super clear LCD display and able to perform non-destructive gloss measurement with superior accuracy.
Both of our digital gloss meters are simple to use and can be operated on battery and mains supply. Large memory storage makes it suitable for continuous working and keeps the measurement data safe for further analysis, which can be transferred into computer through USB interface or PC software. There is a provision to attach printer, helps in exporting readings via print. With optional memory SD card you can increase memory as large as you need.
| Applications | ||
| Painting | Printing | Hardware |
| Plating | Leather | Floors |
| Ceramics | Plastic | Marble |
| Granite | Polished concrete | Stone |
| Paper | Metal | |
| Features | |
| Single or triangle measurements | High precision measurements |
| Battery & mains power supply | Bluetooth and USB interface |
| 900 data memory storage | Simple to use and operate |
| Ergonomic design | PC Software for data transfer |
| Specifications | |||
| Model | PX-GMS | PX-GMS60 | |
| Measuring Range(Gu) | 0~120, 120~2000 @ 20° 0~120, 120~1000 @ 60° 0~120, 120~160 @ 85° | 0~120, 120~1000 @ 60° | |
| Readout Error(Gu) | ±1.5 (0~120) ±1.5%(120~2000) | ±1.5 (0~120) ±1.5%(120~1000) | |
| Repeatability | ±0.5 (0~120) ±0.5%(120~2000) | ±0.5 (0~120) ±0.5%(120~1000) | |
| Aperture (mm) | 20°, 60°, 85° | 60° | |
| Measurement Spot (mm) | 10×10 @ 20° 9×15 @ 60° 5×38 @ 85° | 9×15 | |
| Memory | 900 data or 30 groups, CF card (optional) | ||
| Interface | USB / printer /Bluetooth (Bluetooth is only for PX-GMS) | ||
| Software | Data managing software | ||
| Power Supply | 1.5V, AA x 4 | ||
| Working Environment | 10~40ºC, <85%RH | ||
| Dimension (mm) | 164 × 58 × 88 | ||
| Net Weight(g) | 520 | ||
| Standards | ISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807 | ||
