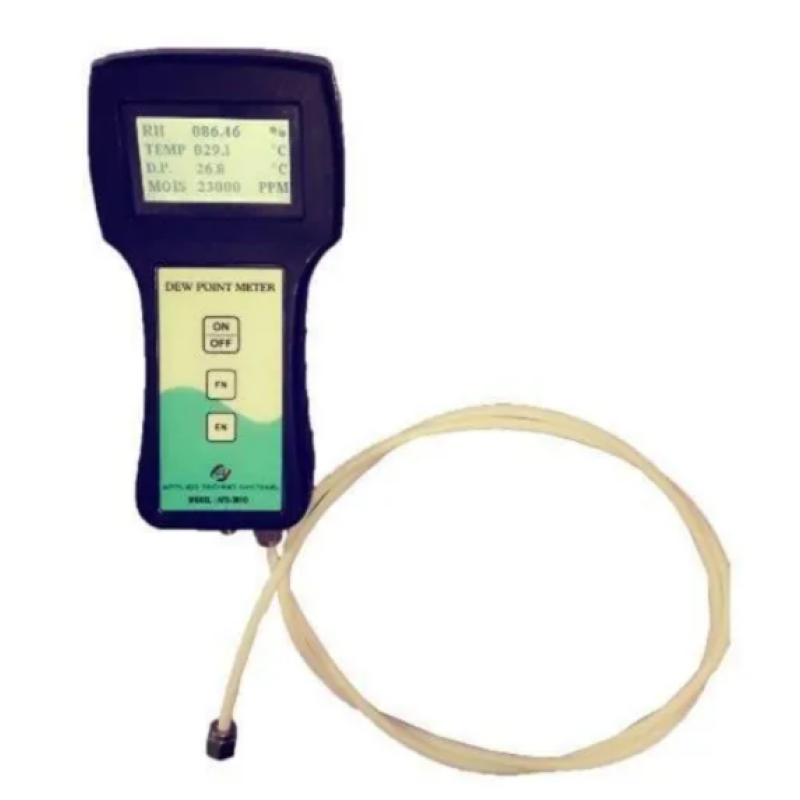

Digital Dew Point Meter

Product Details:

Usage/Application	Dew Point Monitoring of Compressed Air/Gas
Dimension	130 X 250 X 90 mm (W x H x D)
Brand	Applied Techno Systems
Application	Industrial
Accuracy	+/-2%
Moisture Range	0-23000 PPM
Material	ABS Plasitcs
Color	Black
Operating Humidity Range	0-99.9% RH
Battery	Lithium Rechargeable Battery
Display Type	Graphics Display
Analysis Time Approx	less then 30 Sec
Weight	600 Gram
Max Resolution	0.1 unit

Being the market leader in this domain, we are actively committed towards offering a wide range of Digital Dew Point Meter. It is highly optimized to measure the dew point, moisture and Temperature for dryers and compressed air/gases. The dew point (dew point temperature) is the temperature at which dew forms and is a measure of atmospheric moisture.The dew point is the saturation temperature for water in air. The dew point is associated with relative humidity. A high relative humidity implies that the dew point is closer to the current air temperature. Relative humidity of 100% indicates the dew point is equal to the current temperature and that the air is maximally saturated with water. When the moisture content remains constant and temperature increases, relative humidity decreases. This meter is manufactured by our professionals using best grade factor inputs in compliance with industry quality standards. To ensure quality and flawlessness, the entire array is well tested against various quality parameters. Further, clients can avail this meter from us at affordable prices within stipulated time frame.
Features:

• High efficiency,

• Require less maintenance,

• Industry approved design

Specifications:

• Principle: Thin Film Capacitive ,

• Range: Degree C, PPM & % RH

• Resolution: 0.1 Unit or 1 Unit (Application based)

• Sampling Method: Direct Plug In

• Display: 128 X 64 Graphics LCD

• Power Source: Built in Lithium Rechargeable battery

• Accuracy: /2%

• Response Time

• Data Storage: 5000 or 10000

• Computer Interface: RS 232, USB

• Sensor Life: 2-3 Years

• Operating Time: 6 – 8 hours

• Temperature:-15degree Celsius

• Humidity :< 85%RH

• Atmosphere Pressure: 86- 106Kpa

• Housing: High Impact Plastic

• Dimension in mm: 130 (W) X 250 (H) X 90(D)

• Weight: 0.5 KG

• Warranty: One Year.
