Application :

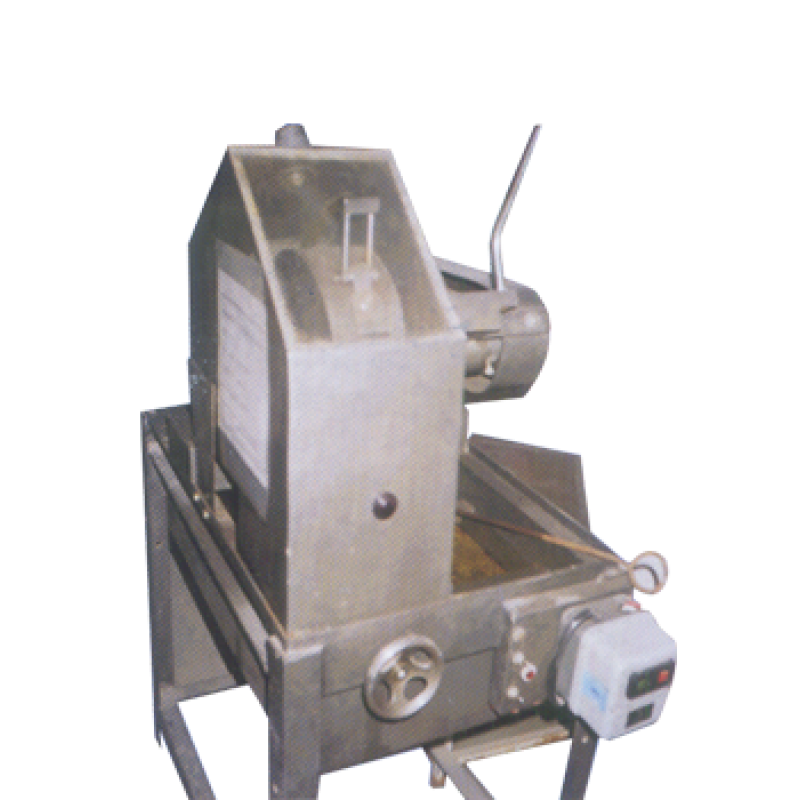

The MOICT04 is a Specialized Circular Disk Cutting devised with specialized. application of cutting the samples Quickly and Cleanly, The Sample may be from rods or tubes or other irregular shapes and small pieces of rocks and minerals by using appropriate diamond impregnated cutting wheels. A chop stroke type midget table model suitable for using diamond wheels up to 10" Diameter round or square stocks. the basic arrangement is spindle Arm sea-saw tupe. The protection cover of the cutting chamber is provided.
Technical Specification :
| Description | Specification |
| Electric motor | 440 volts AC/ 2 HP TEFC |
| Speed | 2800 RPM |
| Instrument Dimensions | 1000 mm x 1000 mm (LXB) |
| Operating Height | 1250 mm |
| Weight of the machine | 200 kgs |
| Input Power requirement | 440 V three phase supply |
| RPM of the Spindle | 2800 RPM |
| Cooling | Coolant delivered by a small pump from tank. |
| Suction / Blower Motor | 1 HP 415 /50 /3 AC Supply |
Feature of the Spectro Polisher
- Compact in Size
- It has cutting capacity : samples of 2.5" to 2.75" dia round or square stokes.
- Ease of paper replacement
- State of Art Design as per the recommendations of the IS and ASTM.
- Can be used for different cutting application by different cutting abrasive discs.
- Front panel with individual starter and the Isolation Switch with 3 phase indicators.
Spectrographic Cutter
