• Motorized Shake Table - The shake table utilized to test various models of structures
• under uni-axial (horizontal component) shaking with supporting frame. Input
• motion of the machine can controlled by software.
• SINCE 1999

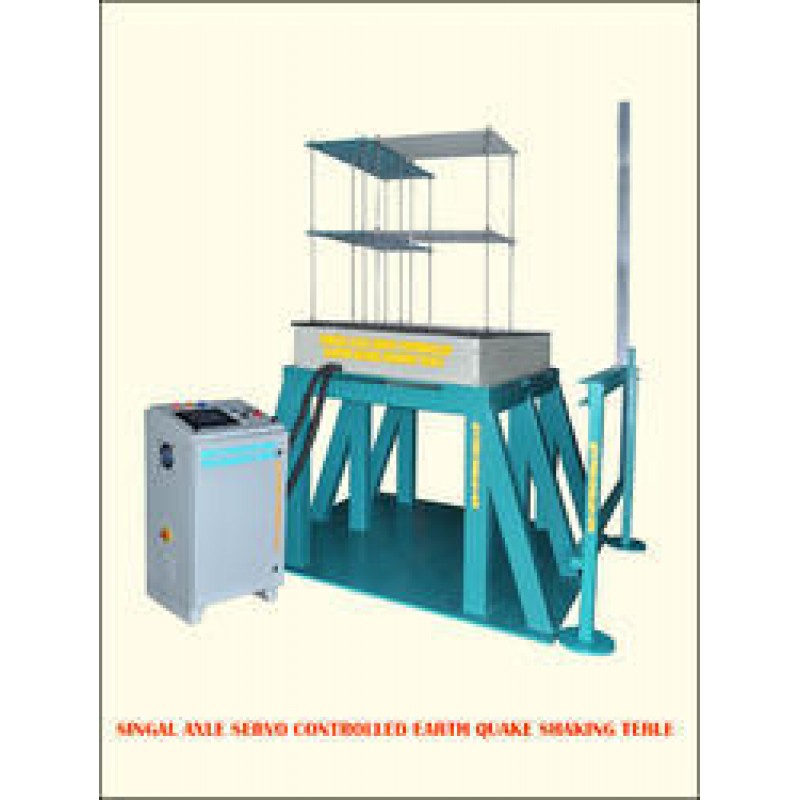

• UNI AXLE SERVO CONTROLLED EARTH QUAKE SHAKING TABLE
• MODEL NO.- KJE ST-909
• Features ( Specification ) :-
• Shake Table with one Translational axis which can upgraded in future to further
• axes of interest
• Shake Table size : 5 ft x 3 ft
• Payload capacity : 1000 kg
• Excitation Signal : Simulation excitation
• Frequency Range : 0.1 to 50 Hz
• Driving Mechanism : Servo controlled motor and gear box operated by electronics
• controlled panel with user friendly software.
• Additional sensors to checks respective displacement of sample putted on table.
• LVDT Displacement Sensor, 0.01 mm x 25 mm travel.
• Load Cell for Weight Masearement.
• Digital Data logger wiyth saperate channel Indicator.
• Computer Software for Data Logging Analisys.
• User Frient Software with Load V/S. Time , Load V/S. Displacement, Displacement V/S. Time, Separete Graphs Online.
• User Friendly Data Analysis Sheet can be provide as per custmer Requirement.
• Table Top : Made up of MS plate of minimum 16 mm thickness or greater to control
• deflection under payload.
• The plate shall have circular slots of 12 mm dia. @ 100 mm c/c both ways leaving the
• 150 mm edge distances along periphery.
• Supporting frame : The supporting frame have manufactured by high stiffness square
• cross sectioned to avoid resonance and vibrations to the body structure.
• Servo- controlled motor : It controls the shake table by software supported pre
• programmed as per desire recipe given by the operator within its maximum and
• minimum limits by dynamic force rating of that can excite the platform with payload
• at an acceleration .
• The stroke length is ± 50 mm. The actuator designed with an integral user friendly
• software.
• Separate additional displacement sensors also would be provide to display the
• samples displacement with respective to bottom shaking plate.
• All the parameters must be readable as well as data storage and graphical image will
• be displayed on line and off line and analysis the same on your p.c. through user
• friendly software.
• P.C. connectivity through Ethernet and USB port.
• Machine operates on 3 Phase A.C. 450 volts supply.
