pH/mv (ORP) Electrodes
Product Description :
pH measurement is usually done with the use of a combination electrode. The combination electrode is an electrode system formed by a glass sensing half-cell and an internal reference half-cell. As the reference junction acts as the medium of conductor between the reference electrolyte and the sample to be measured, it must allow free movement of electrons through the junction and into the sample
The selection of a suitable electrode depends on the types of application

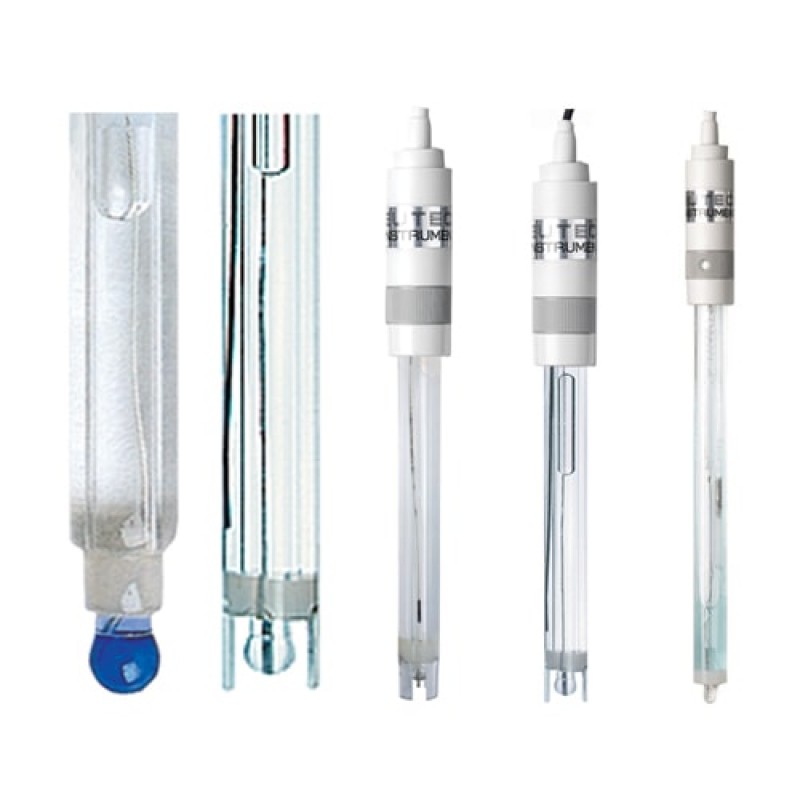

Eutech’s pH /ORP combination electrodes offer the convenience of having the reference and measuring electrodes combined in a single housing. They are offered in a variety of configurations to suit most laboratory and field application needs. Choose from two models: single-or double-junction, sealed (gel-filled) or refillable
Single Junction
- Ideal for general-purpose applications. Ag+ ions are in contact with junction and this can cause chemical interaction with sulphur. Not suitable for biological samples or tris buffers
Double Junction
- Prevents interference between the inner fill solution and sample. Electrolyte is free of Ag+ ions. Suitable for use with biological samples. Can be used in place of calomel reference electrodes
Sealed(gel-filled)
- No refill hole. The reference electrolyte is usually a gel. Replacement of the electrode is necessary when it gets contaminated. Virtually no maintenance is required
Refillable
- Refill hole allows reference electrolyte replenishment. Can be used many times over. Needs refilling when fill solution is low
- Choose single junction ORP electrodes for field, clean water, and other general-purpose applications or double junction electrodes for samples containing heavy metals and organics. Platinum sensors are suitable for most general uses
pH Electrodes (General Glass) & (General Plastic)
| Models | ECFG6350601B | ECFG7350401B | ECFG7370101B | ECFG7351101B | ECFG4390401B | ECFG6351101B | ECFG7252001B |
| pH Electrodes (General Glass) |  |  |  |  |  |  |  |
| Parameter | pH | pH | pH | pH | pH | pH | pH |
| Range | 0 to 13 pH | 0 to 13 pH | 0 to 13 pH | 0 to 13 pH | 0 to 13 pH | 0 to 13 pH | 0 to 12 pH |
| Temp. Range | 0 to 100 0C | 0 to 100 0C | 0 to 100 0C | 0 to 100 0C | -5 to 80 0C | 0 to 100 0C | 0 to 100 0C |
| Liquid Junction Type | Annular ceramic | Annular ceramic | Annular ceramic | Sleeve | Annular | Annular ceramic | Annular ceramic |
| Internal Reference Type | Ag/AgCl | Ag/AgCl | Ag/AgCl | Ag/AgCl | Calomel | Ag/AgCl | Ag/AgCl |
| Sealed/ Refillable | Refillable | Refillable | Refillable | Refillable | Refillable | Sealed | Refillable |
| Reference Junction | Single | Single | Double | Single | Single | Single | Single |
| Refilling Reference Electrolyte | ECRE001 | ECRE001 | ECRE002 | ECRE001 | – | – | ECRE001 |
| Dimensions (Shaft) | 55 x 8 mm | 130 x 12 mm | 110 x 12 mm | 110 x 12 mm | 55 x 4 mm | 55 x 8 mm | 110 x 12 mm |
| Cable Length | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m |
| Connector | BNC | BNC | BNC | BNC | BNC | BNC | BNC |
| Description | General purpose glass-body pH electrode. Suitable for high viscosity samples where frequent cleaning of reference is required. Comes with 10 ml electrolyte | General purpose glass-body pH electrode with protective sensor guard. Suitable for samples with low temperature measurements. Comes with 10 ml refilling electrolyte | Clog free double junction glass pH electrode, ideal for samples containing TRIS buffers, sulfides and more. Easy to operate fill hole sleeve mechanism | General purpose glass-body pH electrode with sleeve design for faster response in high viscosity solutions, where frequent cleaning of reference is required | Micro pH electrode for micro sample measurement. Tris buffers ,clinical and biological media containing proteins , creams ,fats and cosmetics | Glass-body pH electrode for solid or semi-solid samples | Flat surface electrode. Used for surface measurements such as paper, skin, textile, leather, agar |
| Used With | All pH meters with BNC input connector | All pH meters with BNC input connector | All pH meters with BNC input connector | All pH meters with BNC input connector | All pH meters with BNC input connector | All pH meters with BNC input connector | All pH meters with BNC input connector |
| Models | ECFC7252101B | ECFC7352901B | ECFC7352901W | ECFC7252201B | ECFC7252205B / ECFC7252203B |
| pH Electrodes (General Plastic) |   |   |   |   |  |
| Parameter | pH | pH/Temperature | pH/Temperature | pH | pH |
| Range | 1 to 13 pH | 1 to 13 pH | 1 to 13 pH | 1 to 13 pH | 1 to 13 pH |
| Temp. Range | 0 to 80 0C | 0 to 80 0C | 0 to 80 0C | 0 to 80 0C | 0 to 80 0C |
| Liquid Junction Type | Porous HDPE pin | Porous HDPE pin | Porous HDPE pin | Porous HDPE pin | Porous HDPE pin |
| Internal Reference Type | Ag/AgCl | Ag/AgCl | Ag/AgCl | Ag/AgCl | Ag/AgCl |
| Sealed/ Refillable | Sealed | Sealed | Sealed | Sealed | Sealed |
| Reference Junction | Single | Single | Single | Double | Double |
| Dimensions (Shaft) | 90 x 12 mm | 90 x 12 mm | 90 x 12 mm | 90 x 12 mm | 90 x 12 mm |
| Cable Length | 1 m | 1 m | 1 m | 1 m | 5 m / 3 m |
| Connector | BNC | BNC & 2.5 mm phono | BNC & 6 – pin | BNC | BNC |
| Description | General purpose plastic-body pH electrode | General purpose plastic-body “3-in-1” pH/ Temperature combination electrode | General purpose plastic-body “3-in-1” pH/ Temperature combination electrode | General purpose plastic-body pH electrode | General purpose plastic-body pH electrode. Available with 3 m cable (ECFC7252203B) |
| Used With | All pH meters with BNC input connector | pH 5+ /pH 6+ / pH 11 / pH 110 /pH 510 / pH 700 / pH 2100 / pH 2700 / Ion 6+ / Ion 6+ / Ion 700 / Ion 2700 / PC 2700 | PC 510 / pH 150 / pH 450 | All pH meters with BNC input connector | All pH meters with BNC input connector |
