At KLINOTECH, we Design & Manufacture Laminar Air Flow benches to provide a work area completely bathed in a high-efficiency perfect air, which is free from any kind of particulate contamination or impurities.
Types of Laminar Air Flow:

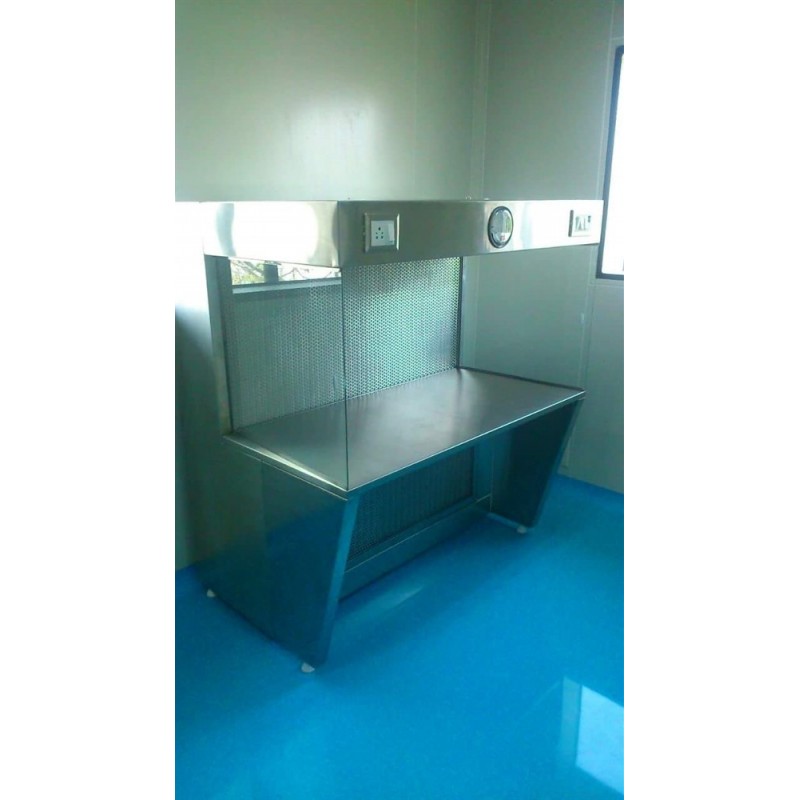

- Horizontal Laminar Air Flow
- Vertical Laminar Air Flow
- Ceiling Laminar Air Flow
SPECIFICATION:
| MOC | SS304 / SS 316 / Customized |
| AIR CLEANLINESS | Class 100 ( As per ISO 14644-1) |
| AIR VELOCITY | 0.45±0.1 m/sec (90±10 FPM) |
| FILTRATION | 2 Stage up to 99.99% down to 0.3µ |
| MOTOR BLOWER ASSEMBLY | FLP/NON-FLP Motor: Statically & Dynamically balanced with suitable rating & size |
| PRESSURE GAUGE | Magnehelic Differential Pressure Gauge |
| PROTECTIVE LIGHT | UV Light wit hour meter |
| NOISE LEVEL | Less than 70 db |
| VIBRATION LEVEL | Minimum |
| ILLUMINATION | Optimum |
Laminar Air Flow Benches
- Views: 244
-
Klinotech Systems India - Product Code: KSI0000003
- Availability: In Stock
- ₹0
