Product Details:

• Minimum Order Quantity 01 Unit
• Brand Care
• Available Nominal Size (mm) 40, 50, 63, 80,100,150 ,250
• Accuracy in FSD 1 %

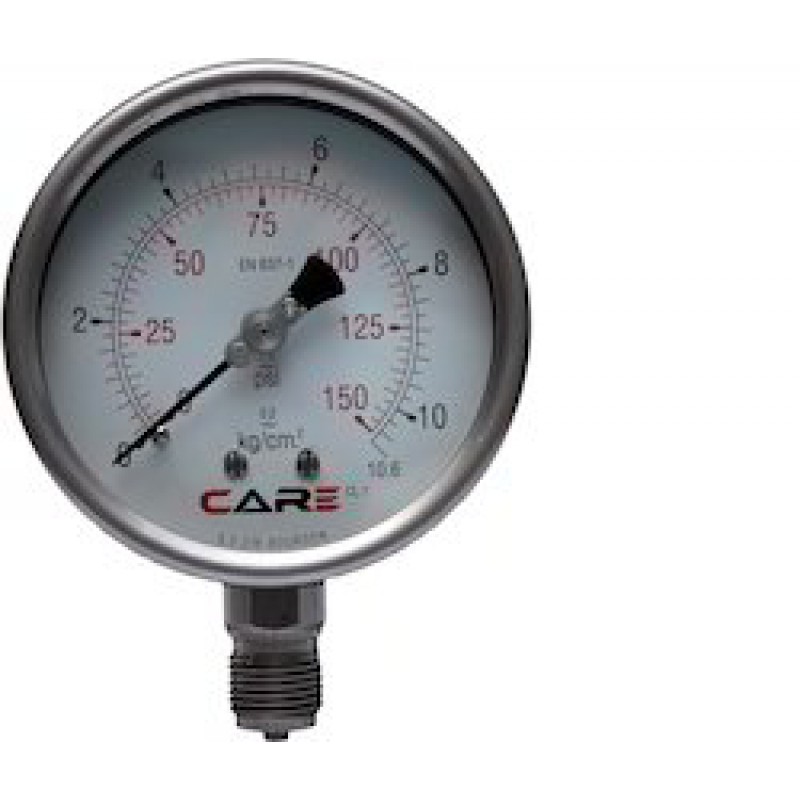

We source and supply quality range of Pressure Gauge in different wetted parts like Brass, SS 304 and other material on request. Widely used in Chemical & Petrochemical industry, Plastic & Paper Pneumatic Control System and Air conditioning purposes these are preferred by our clients across the globe. The detailed specification of our product is given below:

Specifications:

• Nominal Size (mm) 40,50,63,80,100,150 ,250
• Scale Range Vacuum to 700 kg/cm2 & above on request
• Accuracy in FSD 1.00%
• Thread Connection 1/8", 1/4", 3/8", 1/2" BSP & NPT, M-10, M-12, M-20
• Mounting of Gauge Bottom, Surface, Back, Panel with 3 holes, Panel with bracket
• Case and Bezel Drawn steel, SS 304
• Pressure Elements Bourdon Tube
• Diaphragm Nil
• Optional IBR Approved & Liquid Filled
