Product Details:
- Minimum Order Quantity 01 Piece
- Accuracy Class A
- Application Industrial
- Material Stainless Steel
- Power Source 24V DC
- Temperature Range As per requirments

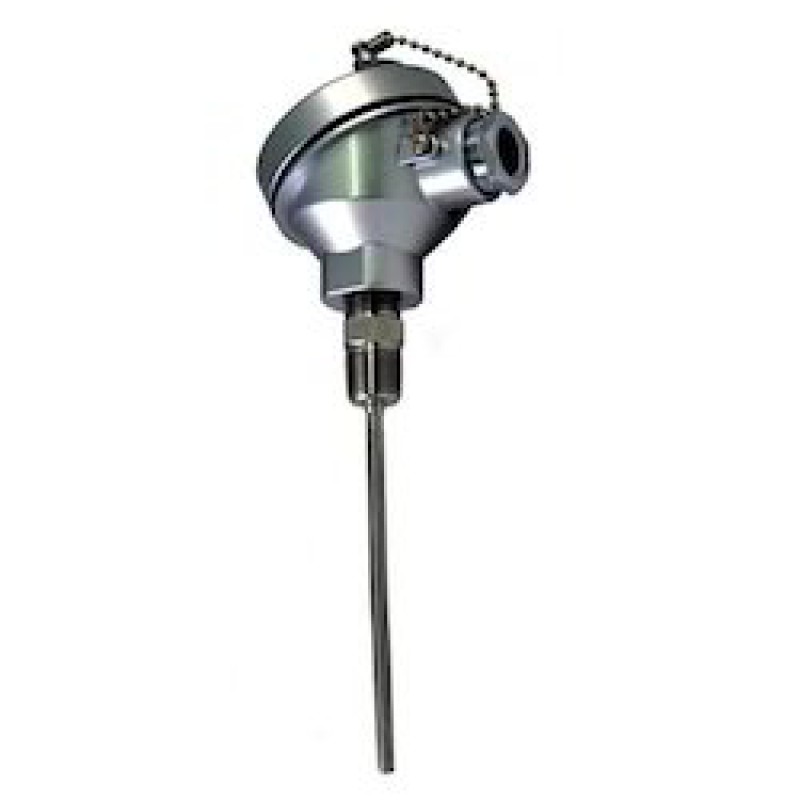

With our gained expertise, we are engaged in manufacturing and supplying of an extensive range of RTD Thermocouples. These are in simplex type in 2 3 wires and duplex type in 4 6 wire systems in simplex type and duplex type respectively.
Specifications:
- Resistance Temperature Detector (RTD) type (PT-10, PT-50, PT-100, PT-200, PT-1000 CU-53) to measure temperature from -400oC to 600oC. Available ith class-A, B sp. Tolerance thin film or wire wound ceramic coated bulb
- Thermocouple type (copper-constantan) for temperature up to 400oC
- Thermocouple type (iron-constantan or Fe-K) for temperature up to 800oC
- Thermocouple type (chromel alumel or Cr.Al or Ni.cr-Ni) or temperature up to 1000oC/1200oC maximum
- All sensors available in metallic protection sheath Thermowell made of SS 304, SS 316, SS310, HRS 446, Inconel 600/800 with insulation by ceramic beads and hand-filled mgo
- MI (Mineral insulated) protection sheath in SS 316, SS 310, Inconel 600 are used in special application
RTD Thermocouples
