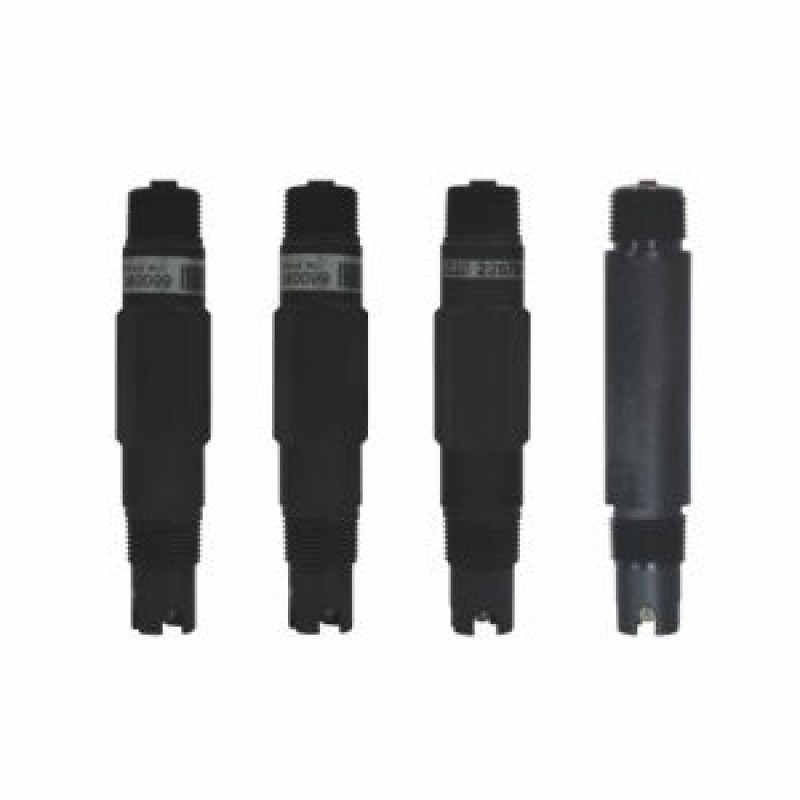

pH/ mV (ORP) Electrodes
Product Details :
Variety of pH combinations and ORP electrodes available in Ryton body and plastic body
Product Description :
Online / Process pH Electrodes
Order Code | EC100GTSO20B | EC100GTSO10B | EC100GTSO05B | ECARGTSO05B | ECARHTTSO05B | ECARTSOHF05B | ECARTSO05B | ECFC7252205B | |
pH Electrodes | ![]() | ![]() | |||||||
Classification | pH | ||||||||
pH range | 0 to 14 | 0 to 14, HF resistant | 0 to 14 | 1 to 13 pH | |||||
Reference | Annular PTFE ,Double Junction | Ag/AgCl Double Junction Sealed | |||||||
Reference electrolyte | Saturated KCl, polymerized gel | – | |||||||
Operating temperature | 0 to 80 °C /32 to 176 °F | 0 to 110 °C /32 to 230°F high temp. | 0 to 80 °C /32 to 176 °F | 0 to 80 °C | |||||
Pressure tolerance | 6 bars (87 psi) | 9 bars (130 psi) | 6 bars (87 psi) | – | |||||
Temperature Sensor | Pt100 | – | |||||||
Potential Matching Pin/liquid ground | Platinum | – | Porous HDPE pin | ||||||
Material | PPS (Ryton) | ||||||||
Thread | ¾” NPT | ||||||||
Cable | Integral 20 m (65.6 ft) low- noise semi- conductor Screened | Integral 10 m (32.8 ft) low- noise semi- conductor Screened | Integral 5 m (16.4 ft) low- noise semi- conductor Screened | 5 meter | |||||
Connector | BNC | ||||||||
Dimensions | Length | 151 mm (excludes cable) | 90 mm | ||||||
Diameter | 26 mm (external) | 12 mm | |||||||
Weight | 950 g | 850 g | 650 g | 430 g | – |
Online / Process ORP Electrodes
Order Code | ECHTAUTSO05B | ECHTPTTSO05B | ECFC7960205B | |
ORP Electrodes | | |||
Classification | ORP | |||
Sensor | Gold | Platinum | Platinum Pin | |
ORP range | ± 1000 mV | -1000 to 1000 mV | ||
Reference | Annular PTFE ,Double Junction | Ag/AgCl Double Junction Sealed | ||
Reference electrolyte | Saturated KCl, polymerized gel | – | ||
Operating temperature | 0 to 80 °C /32 to 176 °F | 0-80 °C | ||
Pressure tolerance | 6 bars (87 psi) | – | ||
Potential Matching Pin/liquid ground | Platinum | No | ||
Material | PPS (Ryton) | Engineering Plastic | ||
Thread | ¾” NPT | |||
Cable | Integral 5 m (16.4 ft) low- noise semi- conductor Screened | 5 meter | ||
Connector | BNC | BNC Termination | ||
Dimensions | Length | 151 mm (excludes cable) | 90 mm | |
Diameter | 26 mm (external) | 12 mm | ||
Weight | 430 g | – |
