TECHNICAL SPECIFICATION

• For storing devices and chemicals in accordance with DIN EN 14727
• For working heights of 750 mm & 900 mm
• Not suitable to store the flammable liquids, gas cylinders and self-igniting or self-decomposing substances.
• Not suitable for storing acids and alkalis.

AVAILABLE OPTIONS

• Under bench unit on castors
• Suspended under bench unit
• Self-supporting under bench unit for fume cupboards
• Under bench unit for sinks

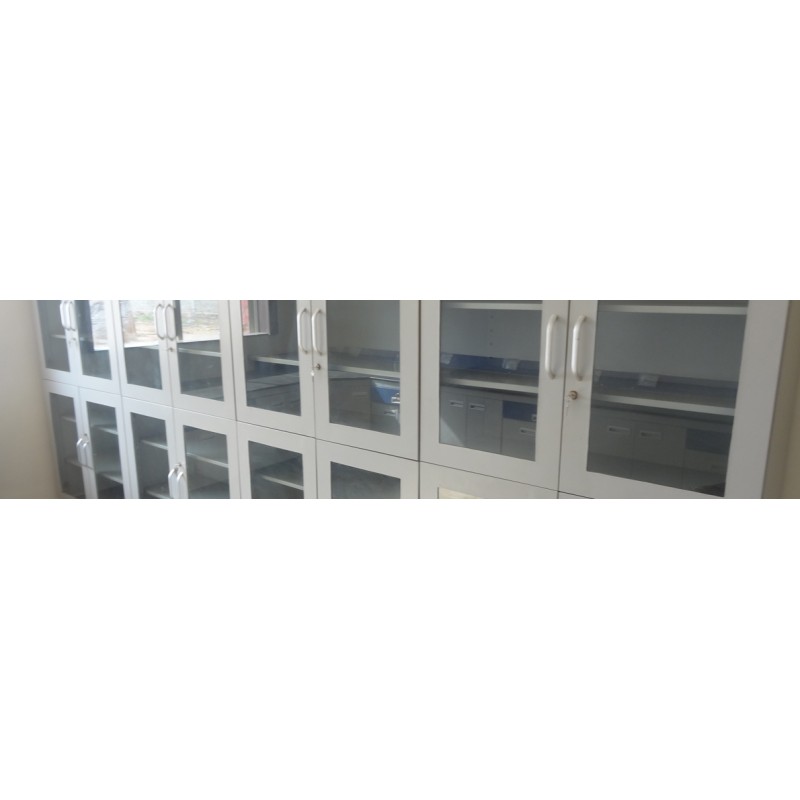

LARGE NO. OF AVAILABLE VARIANTS FOR FAST ACCESS AND SAFE STORAGE IN THE LABORATORY :

• For maximum flexibility in the laboratory, we offer a large variety of cabinet / under bench unit. Pushed in under bench units (Either Movable or on Plinth) ought to easily fit under C-frame, Pedestal-frame and Base frames designs, with their own supporting structure.

SPECIALIZED ACCESSORIES:

• The Aluminum flush type handles without joints are resistant to chemicals and easy to clean. Our suspended cabinets are fastened to the service spine or wall without a visible gap.

HINGES, LOCK & SLIDER:

• We do provide the”Hattich / Hafele” German make Hinges, Lock & Sliders, to get the long life service.

SURFACES ARE WELL PROTECTED

• We do provide the Epoxy duly powder coated sheet with minimum coating layer of 80 Microns.

MATERIAL OF CONSTRUCTION

• Module Panel: Min. 20 SWG Sheet.
• Module Drawer & Shutter Panel: Min. 22 SWG Sheet.
• Adjustable Shelves: Min 20 SWG Sheet.
