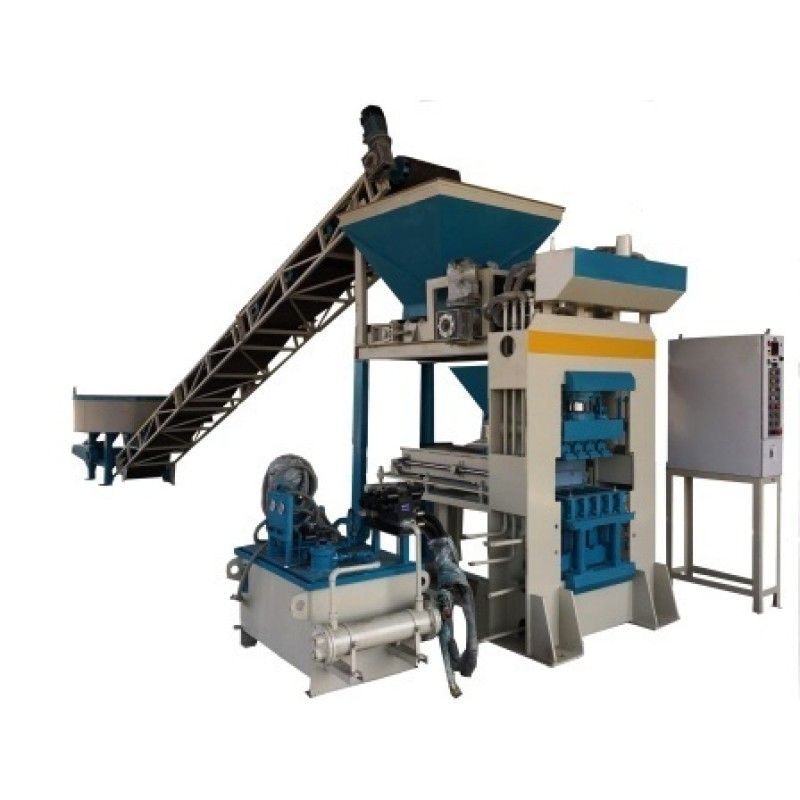

Block Making Machines

Product Details:

Minimum Order Quantity 1 Piece

Brand/Make MIX WELL

Model/Type AUTOMATIC

Capacity 11520 BRICK IN 8 HOUR


WE manufacturing, trading and supplying Fully Automatic BRICK & Block Making Machine. This block making machine is used in various construction industries for block making. Our block making machine is developed from the finest quality material & contemporary techniques keeping in pace with industry norms. The offered block making machine is accessible in assorted specifications to meet the needs of the customers.


Features:

Less maintenance

Optimum performance

Low power consumption

Specifications:

Main body from HEAVY PLATES & PIPES guide rod will be chromium plated

3 Stroke in a minute

6 Pavers in a Stroke

8 bricks in a stroke


Pan Mixer Details:

Pan Ø: 1500 mm

Side wall height: 500 MM height

Bottom plate: 10 mm M.S.

Side wall plate: 4 mm M.S

Motor: 7.5 h.p ,1440 rpm 3 phase


Power (Load):

Hydraulic: 10 HP

Taper conveyor: 2 HP

Down Conveyor: 1 HP

Vibrator: 2 H.P

Pan Mixer: 7.5 HP X 2 NOS

Total Power: 30 HP


Hydraulic Cylinder:

Ramming: 1 no

Box: 2 nos

Feeder: 1 no

Wooden Pallet Conveyor: 1 no

Total: 1 nos


Conveyor Belt:

Conveyor belt thickness: 8 mm & length 22 foot


P.L.C Control:

Well designed plc control system

Auto pallet function: for hydraulic

Tank capacity for hydraulic oil: 300 litres

Single Layer Feeder box Electrical Plc control panel

Bricks removal: through 10 ft conveyor

Total weight: 3500 kg

Operating pressure: 220 bar-100 ton

Mixing rough material: from pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box



Request

Callback

Yes! I am interested

Block Making Machine

Block Making Machine

Block Making Machine

Get Best Quote

Approx. Price: Rs 13 Lakh / Set

Product Details:

Brand/Make mix well

Model/Type automatic

Capacity 11520 brick


Specifications:

In a one pallets – 4 brick will be done.

Pallet size – 600x300x25xmm (pvc type pallet)

System – hydraulic power compacting.

Tonnage of hydraulic pressure –100 ton

Total power required 31.5 hp

Conveyor 20 foot length

Fully plc control system

Pan Mixer Specification:

Pan ø: 1500 mm

Side wall height: 500 mm height

bottom plate: 10 mm m. S.

side wall plate: 5 mm m. S

Roller size: 16 “x 7 1/2 “(d x w)

Motor: 7. 5 h. P ,1440 rpm 3 phase

Production capacity:

Brick size: 230 x 110 x 75 mm (with frog)*

Production capacity: 1680 bricks/hour (rated) **

No. Of bricks / stroke: 4 bricks / stroke

No. Of strokes / hour: 420 strokes / hour (7 strokes / min)
