YL9300 HPLC (High Performance Liquid Chromatograph)

Product Details:

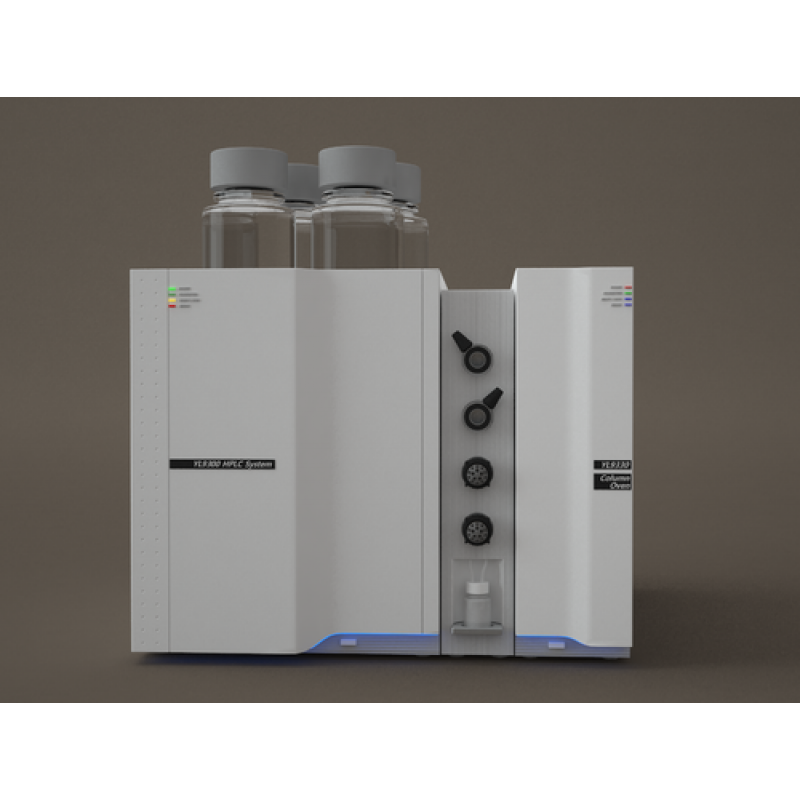

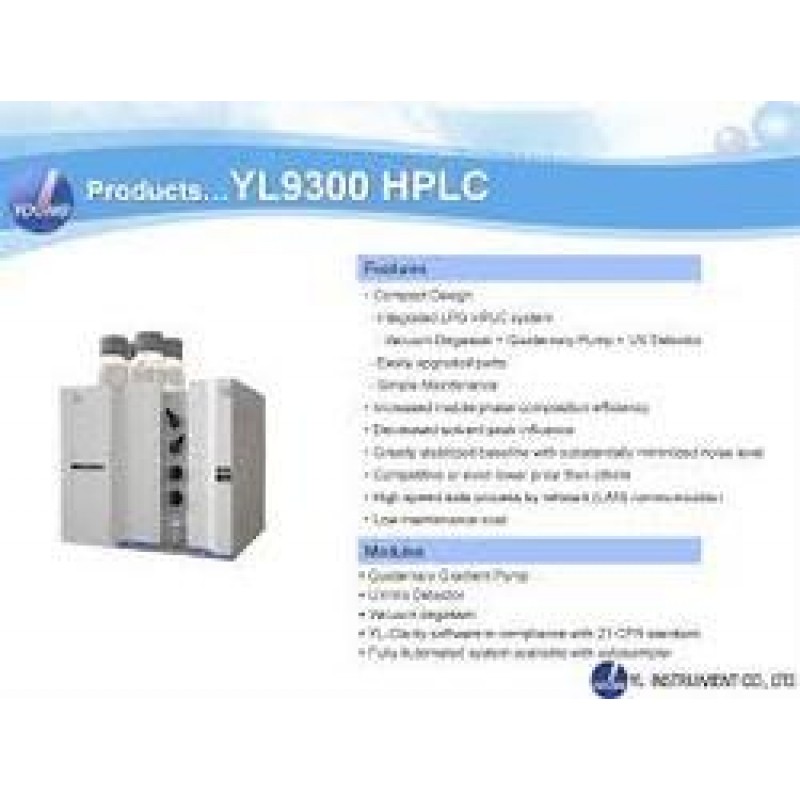

YL9300 HPLC (High Performance Liquid Chromatograph)

               YL9300 HPLC is an integrated HPLC system in a compact design including a vacuum degasser (mixer),quaternary pump and UV/Vis detector at a competitive price. The focus corrected optical design efficiently reduces mobile phase RI effect and provides enhanced baseline stability with a substantially minimized noise level especially in short wavelength range, which brings decreased solvent related peaks.
Compact Design- Integrated LPG(Low Pressure Gradient) HPLC system
Simple maintenance: Pump & Vacuum Degasser modules in a sliding drawer
Perfect Performance- Increased mobile phase composition efficiency- Decreased solvent peak influence- Narrow spectral bandwidth- Substantially stabilized baseline with minimized noise level
Impact to Competitors- Competitive or even lower price than others- High speed data process by network (LAN) communication- Low maintenance cost


Features :

• Vacuum Degasser
• Number of channel: 4 CHs
• Maximum flow rate: 10 ml/min per channel
• Internal volume per channel: 925 ul per channel
• Solvent contact materials: Teflon AF, PEEK and Glass-filled PTFE
• Quaternary Pump- Flow range: 0.001-10 ml/min
• Flow rate accuracy:  +-1% at 1 ml/min
• Flow rate precision: < 0.1% RSD at 1 ml/min
• Number of eluent lines: 4
• Pressure pulsation: +-0.5 % at 1 ml/min
• UV/VIS Detector
• Wavelength range: 190~600 nm (Standard) /190~900 nm (Option)
• Spectral bandwidth: 5 nm
• Wavelength accuracy: +-1 nm
• Wavelength precision: +-0.1 nm
• Linearity: > 99.5% at 2.5 AU (Acetone, 254 nm)
• Noise level: < +-0.35 X 10-5 AU, 254 nm, dry cell
• Drift: < 1 X 10-4 AU/hour
• System Information- Data
• communications: LAN
• Dimension: 375 X 470 X 545 mm (W X H X D)
• Weight: 27 Kg
• Safety & maintenance: Leak detection, Diagnostics, Error detection
• Power consumption: 150 W
• YL9330 Column Compartment
• Temperature range : 4 Degree C (Cooling) - 90 Degree C
• Temperature stability : +-0.05 Degree C
• Temperature accuracy : +-0.5 Degree C, with 2-point temp. calibration
• Temperature programs : 40 Steps
• Column capacity : three columns up to 300mm length(max OD: up to 18mm)Column
• switching (Option): automatically 6-port SS(PEEK)valve up to 2 ea
• Communications: LAN
• Safety & maintenance : Leak detection, Diagnostics, Error detection
• Dimensions : 185 x 476 x 480mm (W x H x D)
• Line Voltage : 100-240VAC, +-10%, automatic voltage selection
• Line frequency : 50/60Hz, +-5%
• Power consumption : 150W
