Weigh Bridge

(Weigh Bridge & Systems)

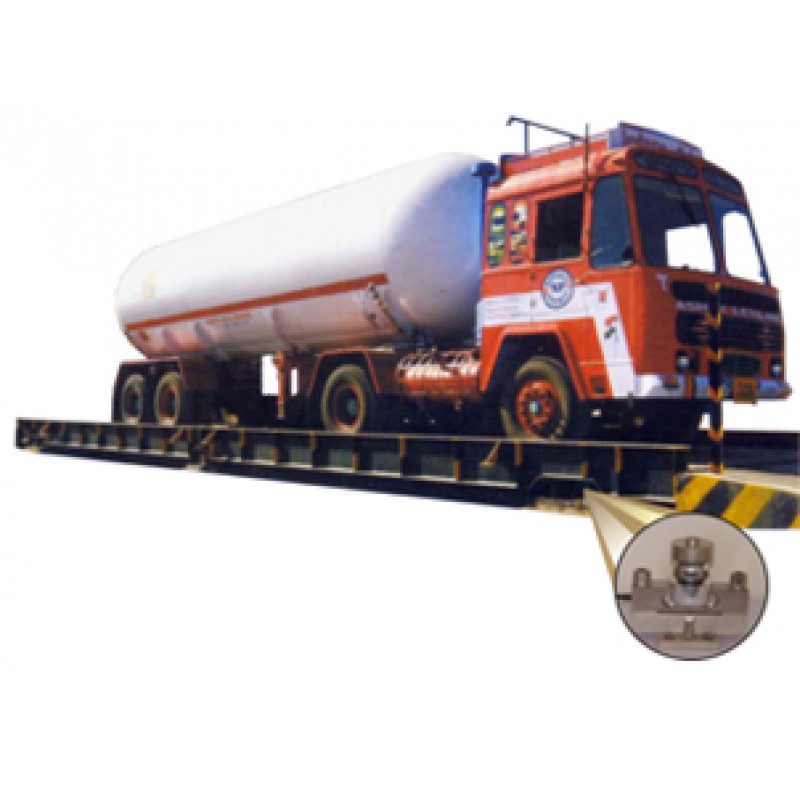

Aczet manufactures Electronic Truck Weighbridges suitable for heavy duty weighing of bulk carriers used for highway transportation as well as for heavier off-road hauling applications in construction operations, mining etc.

Our weighbridges are available in two configurations - Pit Type & Pitless Type - and in a wide variety of platform sizes and capacities.

Weighbridges come with anti-skid steel decks fabricated with high tensile strength mild steel mounted on Strain Gauge based double-ended Shear Beam Loadcells that are hermetically sealed as per IP 68 standards. They are designed for rugged outdoor applications under extreme weather conditions. The system's user-friendly software is compatible with WINDOWS operating system and the load indicator and associated electronics can be conveniently located within a distance of 20 meters from the platform.

Weighbridge Platform comes in Pit / Pitless composite type. It is Rust free & has Longer durability. No painting is required. It is completely maintenance free, more economical & trouble free as compared to steel weighbridge. It saves transport cost as it is constructed at the site.

SPECIAL FEATURES

• Weigh Bridges are easy to install.
• Standardized output:
• Ideal for multi cell application.
• Surge Voltage Protection (SVP) offers protection from lightning strikes.
• No corner weight difference.
• Load Cells are compiled with various quality standards such as CE, OIML & IP ratings.
• Side load immunity.
• Made in Steel Alloy.
• Highly rugged and accurate.
• Hermetically sealed - IP68.
• Suitable for Wash Down applications.
• Safe load limit: 150%
• Ultimate load : 300%
• Suitable for Hazardous Area.

WEIGHBRIDGE INDICATORS

• O.I.M.L. certified. PC based Weight Indicator.
• Micro Controller based.
• Full Digital Calibration
• Auto Zero Tracking.
• 0.8 inch bright LED weight display.
• RS 232C for computer interface Inbuilt.
• Jumo Remote Display connectivity.
• Flame Proof Indicators certified by CMRI, Dhanbad.

INTELLIGENT WEIGH TERMINAL

• Intelligent Terminal. No PC required.
• PC key board for data entry.
• RED LED display for weight indicator
• Backlit LCD display 2 line and 20 characters for operating instructions.
• Non volatile memory upto 3,000 transaction
• Full digital Calibration.
• Auto Zero Tracking.
• Report generation customer wise, Sr. No. wise etc.
• Can store 2 lacs memory.
• Provision for Ptain & Pre-Printed Stationary. TYPICAL ARRANGEMENT OF WEIGHBRIDGE SYSTEM.

• Technical Data
