Photometer MD 610

Modern, mobile photometer for rapid, reliable water testing



Highlights

• Easily transfer testing data directly from the field using the AquaLX app

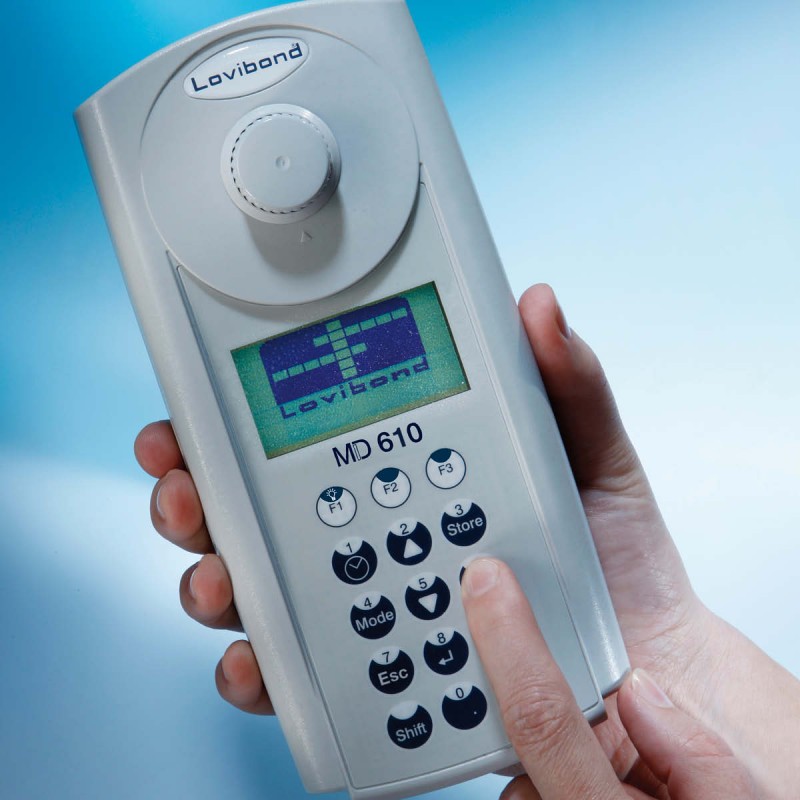

• Portable instrument for use in the lab, plant or out in the field
• Multi-Parameter Testing device combines all of the key water testing parameters and testing ranges

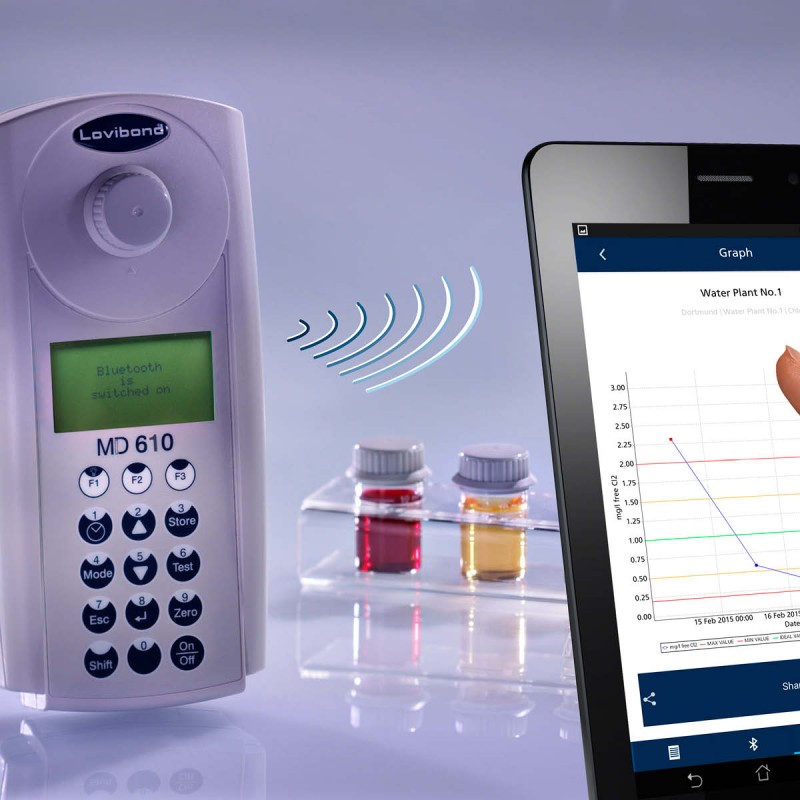

The MD 610 multi-parameter photometer features a Bluetooth® interface which allows for the sending and sharing of testing data directly from the field. Pre-programmed with over 120 water testing parameters and ranges, it is the ideal field instrument for a variety of applications and industries.



App AquaLX®

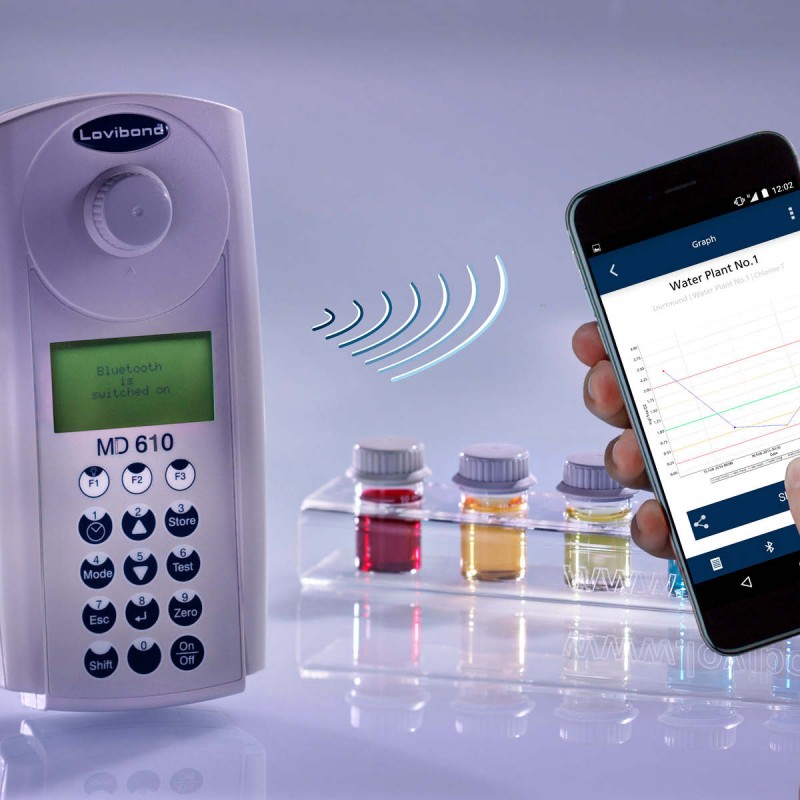

• The free app AquaLX® is ideally designed for use in on-site measurements. Compatible with IOS®- and Android®-based smartphones and tablets, it enables uncomplicated data transmission. It maps all measured values ​​as an illustrative graphic with minimum and maximum limits and supports the export of the data as an Excel®-compatible CSV file.
• The PC software makes it possible to import data directly from the photometer to the Windows-based PC. As a stationary solution, it facilitates the transfer of data through a quickly established, permanently wireless connection. Further processing of the results can be done both in the software itself and by exporting the data to Excel or as a CSV file.
• The set of software and Bluetooth® dongle is available as a separate accessory under item no. 2444480 available.



Applications

• Boiler Water
• Cooling Water
• Disinfection Control
• Drinking Water Treatment
• Galvanization
• Pool Water Control
• Pool Water Treatment
• Raw Water Treatment
• Waste Water Treatment



Easy Access to new testing parameters and ranges

• Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website.

On-screen access to important test information

• Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it's easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units.

No Need to memorize method numbers to access a testing method

• The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see,

Data Storage and Transfer Capabilities

• Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file.

Choice of Reagent Platforms

• With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents.

Create User-Defined Calibration Curves

• Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It's easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented.

Accurate, Reproducible Results

• The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in.

One-time-Zero Function

• Don't waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.



Technical Data :

OpticsLEDs, interference filters (IF) and photo sensor in transparentsample chamber Wavelength range:430 nm IF Δλ = 5 nm530 nm IF Δλ = 5 nm560 nm IF Δλ = 5 nm580 nm IF Δλ = 5 nm610 nm IF Δλ = 6 nm660 nm IF Δλ = 5 nmIF = interference filterWavelength Accuracy± 1 nmPhotometric Accuracy2 % FS (T = 20 °C – 25 °C)OperationAcid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeperDisplayBacklit graphic-displayInterfacesBluetoothUpdatesSoftware updates via InternetInternal Storageapprox. 500 data setsPower Supply4 batteries (Mignon AA/LR6)Battery Life Timeapprox. 26 hAuto – OFFYesBeeperexistingPortabilityBenchtopEnvironmental ConditionsTemperature:  5 - 40 °C rel. humidity: 30 - 90 % (non condensing)ComplianceCEProtection ClassIP 68Languages User InterfaceGerman, English, French, Spanish, Italian, Portuguese, Polish, IndonesianDimensions95 x 45 x 210 mmWeight450 g





Range :



TestparameterMeasuring RangeMethod No.Chemical MethodAlkalinity-m HR T5 - 500 mg/l CaCO3M31Acid / IndicatorAlkalinity-m T5 - 200 mg/l CaCO3M30Acid / IndicatorAlkalinity-p T5 - 500 mg/l CaCO3M35Acid / IndicatorAluminium PP0.01 - 0.25 mg/l AlM50Eriochrom Cyanine RAluminium T0.01 - 0.3 mg/l AlM40Eriochrom Cyanine RAmmonia HR TT1.0 - 50 mg/l NM66SalicylateAmmonia LR TT0.02 - 2.5 mg/l NM65SalicylateAmmonia PP0.01 - 0.8 mg/l NM62SalicylateAmmonia T0.02 - 1 mg/l NM60Indophenole BlueBoron T0.1 - 2 mg/l BM85AzomethineBromine PP0.05 - 4.5 mg/l Br2M81DPDBromine T0.05 - 13 mg/l Br2M80DPD

Chloramine (M) PP

0.02 - 4.5 mg/l NH2Cl as Cl2M63Indophenole methodChloride L (A)0.5 - 20 mg/l Cl-M92Mercury Thiocyanate / Iron NitrateChloride T0.5 - 25 mg/l Cl-M90Silver Nitrate / Turbidity

Chlorine (free) and Monochloramine

0.02 - 4.50 mg/l Cl2M64Indophenole methodChlorine dioxide PP0.04 - 3.8 mg/l ClO2M122DPDChlorine dioxide T0.02 - 11 mg/l ClO2M120DPD / GlycineChlorine HR (KI) T (105)5 - 200 mg/l Cl2M105KI / AcidChlorine HR PP0.1 - 8 mg/l Cl2M111DPDChlorine HR T0.1 - 10 mg/l Cl2M103DPDChlorine L0.02 - 4.0 mg/l Cl2M101DPDChlorine MR PP0.02 - 3.5 mg/l Cl2M113DPDChlorine PP0.02 - 2 mg/l Cl2M110DPDChlorine T0.01 - 6.0 mg/l Cl2M100DPDChromium PP0.02 - 2 mg/l CrM125DiphenylcarbazideCOD HR TT200 - 15000 mg/l CODM132Dichromate / H2SO4COD LMR TT15 - 300 mg/l CODM133Dichromate / H2SO4COD LR TT3 - 150 mg/l CODM130Dichromate / H2SO4COD MR TT20 - 1500 mg/l CODM131Dichromate / H2SO4Copper L0.05 - 4 mg/l CuM151BicinchoninateCopper PP0.05 - 5 mg/l CuM153BicinchoninateCopper T0.05 - 5 mg/l CuM150BiquinolineCyA HR T10 - 200 mg/l CyAM161MelamineCyanide L0.01 - 0.5 mg/l CN-M157Pyridine-barbituric AcidCyA T10 - 160 mg/l CyAM160MelamineDEHA PP0.02 - 0.5 mg/l DEHAM167PPSTDEHA T (L)0.02 - 0.5 mg/l DEHAM165PPSTFluoride L
