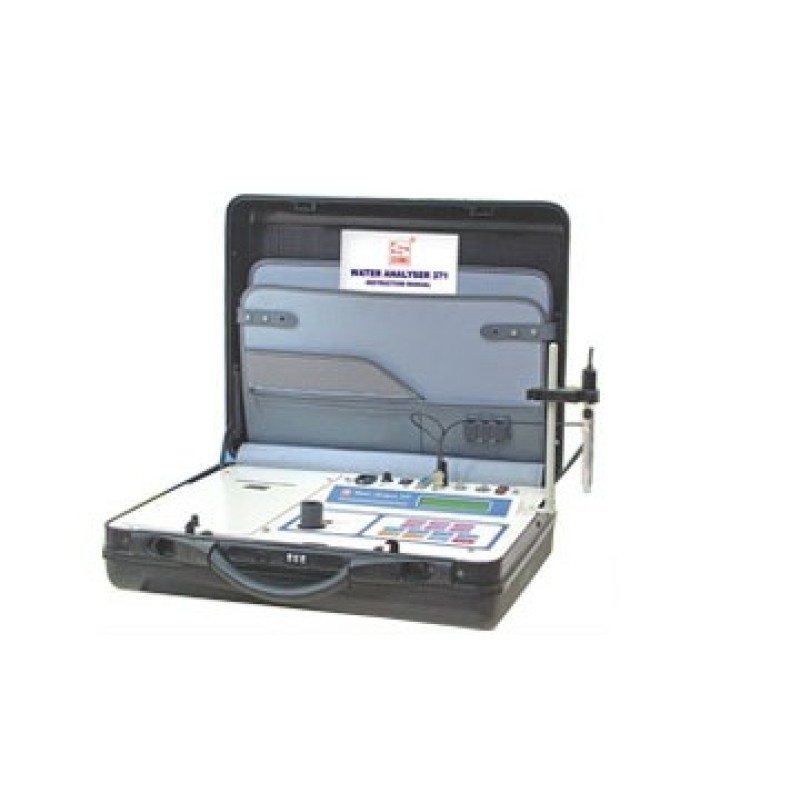

Water Analyzer Model 371 Systronics

Product Details:

The advantages of the Water Analyzer 371 at a glance:

• Micro controller Based
• Measures pH
• Measures mV / ORP
• Measures Conductivity / TDS
• Measures Salinity
• Measures Dissolved Oxygen
• Measures Temperature
• Measures Colorimeter
• Measures Turbidity

mV / ORP :

• Range : 21988 mV
• Resolution : I mV
• Accuracy : +/-1 mV +/-1 Digit
• Sensor : Combined Electrode

Conductivity /TDS:

• Range : 0 to 100 mS (5 range.) 0 ppm to100 ppt (5 ranges) at TDS factor 0.5 (Approx) & TEMPCO 2%
• Accuracy : +/-1% of FS +/-1 Digit
• Sensor : Conductivity Cell (Acceptable from 0.1 to 5.0 cell constant)
• Temp. Compensation : Auto/ Manual

Salinity:

• Range : 0 to 40 ppt
• Resolution : 0.1 ppt
• Accuracy : +/-2% of FS +/-1 Digit
• Sensor : Conductivity Cell (Acceptable from 0.1 to 5.0 cell constant)
• Temp. Compensation : Auto/Manual

Dissolved Oxygen:

• Range: 0 to 20 ppm
• Resolution : 0.1 ppm
• Accuracy : +/-1% of FS +/-1 Digit +/-0.1
• Sensor : Au / Ag Probe
• Temp. compensation : Auto/ Manual

Temperature:

• Range : 0 to 100 Deg C
• Resolution : 0.1°C
• Accuracy : +/-0.5° C +/-1 Digit
• Sensor : PT 100

Colorimeter:

• Range : 0 to 2.00 Abs 0 to 100 %T Conc :0 to 1999
• Accuracy : ±.0.05 Abs
• Resolution : 0.001 Abs /0.1 %T
• Sensor : Photodiode
• Source : Tungsten Larne
• Filters : Blue (440 nm) Green (540 nm) Red (660 mm)

Turbidity:

• Range : 0 to 1 NTU, 0 to 10 NTU, 0 to 100 NTU
• Accuracy : +/-2% of FS
• Sensor : Photodiode
• Source : Tungsten lamp
