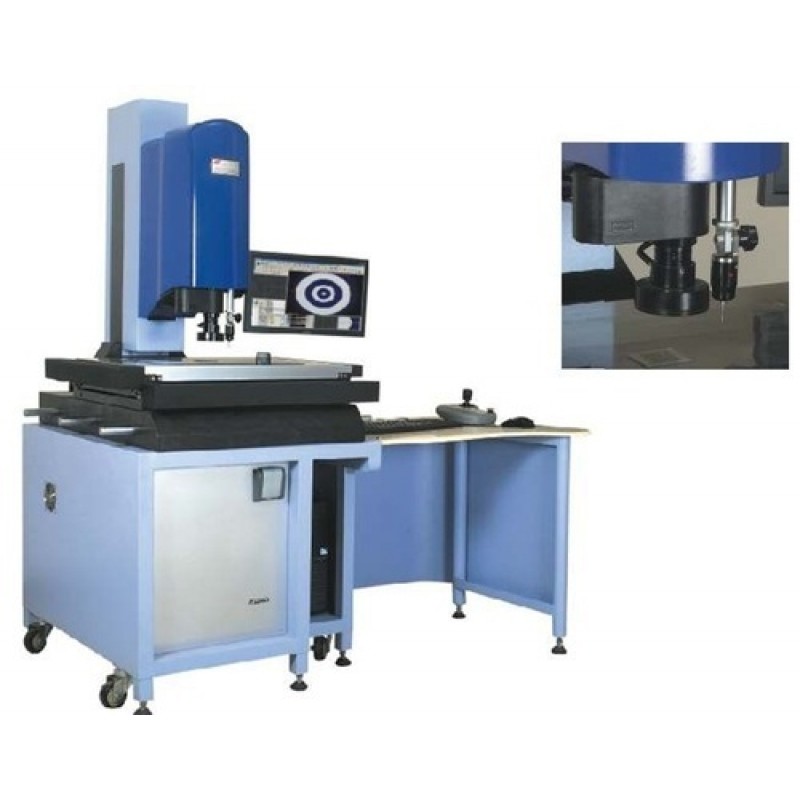

Vision Measuring Machine

Product Details :

The Vision Measurement Machine adopts a High resolution, ultra-low distortion enlarging system combined by a high-resolution CCS and telecentric lens. The machine enlarges accurately a part together with high precision worktable and grid scale to measure, check and view the part.By means of various high efficient automatic measuring functions provided by the measuring software. It is possible to enlarge the part as big as 20-125 times of the part size. It's working efficiency is largely higher than a traditional optical projector.The Machine, equipped with the color CCD Vision magnifying system, displays the part in different color/material on a computer screen with results much better than a traditional optical projector. It is especially suitable for measuring a curve or a hyperfine part etc. that can't be measured by a slide caliper rule or another kind of gauges.The machine worktable can be placed on a high precision datum marble platform. Because of its optical system it is much simpler than an optical projector, It is extremely easy to achieve high geometric accuracy and measurement accuracy. owns a complete series of Vision Measurement Machines from manual type machine, NC type automatic measurement machine, to CNC fully automatic measurement machine with off-line programming, high speed and efficiency function in order to meet different customer's requirements.All  Vision Measurement Machines are compatible with RENISHAW high accuracy touch trigger probe to measure parts in Z-axis or simple-3 Dimensional measurement.SPC statistical analysis software is a standard configuration for all  Vision Measurement Machines. It allows customers to carry out scientific analysis for the production flow to find error trend in the flow and problems in the operations. In addition, all measurement results may be exported to popular office software, such as Excel, Word to make customers save results conveniently for working out a quality inspection report or analyzing further. Vision Measurement Software can export results in image file DXF to the popular CAD software, e.g., AutoCAD, Master CAM etc. to facilitate customers to copy the results. Vice-versa, image files in DXF may also be loaded into  Vision Measurement Software to compare measurement results visually.
