We manufacture and export Viscosity Bath. Viscosity Bath is designed by our technical designer and our professionals ensure to deliver the unmatchable quality products to our customers that satisfy their specific requirements in all possible manners. Furthermore, we offer customization facility to our esteemed customers at market leading prices.
Features:
Temp Range : Above ambient to 99.9ºC, 0ºC TO 99.9ºC, -10ºC to 99.9ºC
Accuracy : ±0.1ºC TO 0.5ºC
Application : Equipment specially designed for tests in the field of medical, agricultural, bio-chemical, R & D & Q. C. Laboratories
Construction : Double walled, exterior of CRCA /GI, non-contaminant epoxy powder coated & inner chamber of AISI S.S. 304, with PUF insulation, S.S. Lid on top with provision fro Holding viscometer holders
Circulations : Efficient motor of 1440 RPM Top mounted is installed for stirring to get temp uniformity
Heaters : S. S. Tubular Heaters for maintaining of temp.
Refrigeration Systems : Hermetically sealed compressor provides temp. for below ambient conditions, Refrigerant CFC free
Temp. Control : Solid State Electronic Digital Temp. Control Panel housing all the control switches with PT – 100 sensor.
Optional : Models available as per GMP, Complete S.S unit, Strip Chart Recorder. Microprocessor based PID temp. Control with printer interface, RS 232 CPC, RS-485 interface for multiple networking of controller.
Validation Protocols : Validation Protocols for IQ OQ PQ & DQ complete documentation with reports, Calibration & Test Certificate traceable to National & International Standards.
Safety Features : Safety thermostats for over shooting of temp. safety circuit to cut off the whole system in case of malfunction ( Applicable to microprocessor based models only) HRC fuses for compressor heaters & mains, time delay circuit for safety of compressor
Special care : A suitable K.V.A. servo controlled voltage stabilizer is recommended.
Approx. Price: Rs 30,000

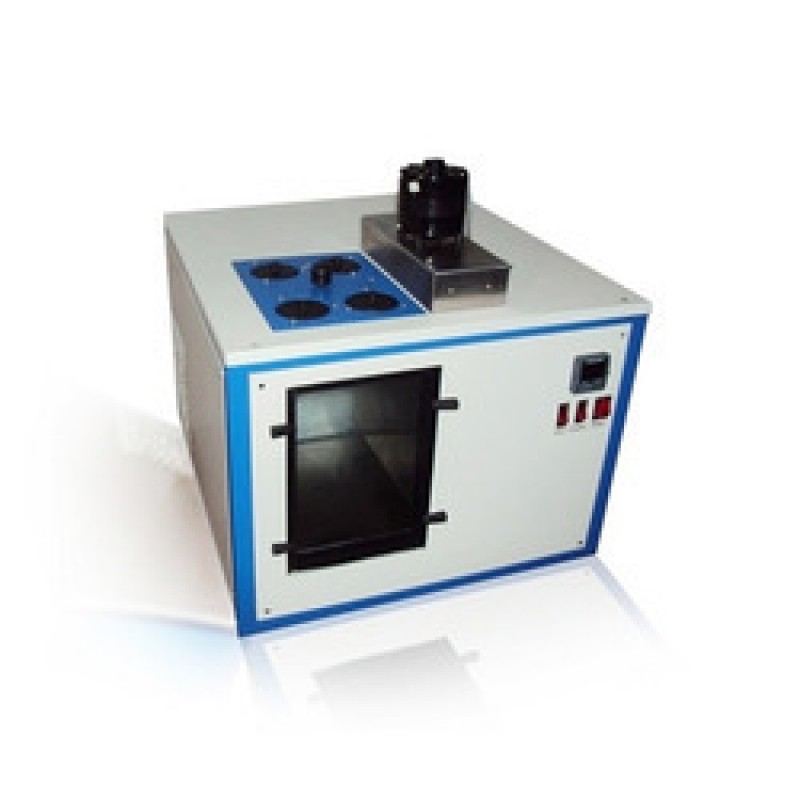

Viscosity Bath
