Unevenness Indicator (Merlin)

Product Details:

Minimum Order Quantity	1 Unit
Brand	Rajco
Material	Steel
Automation Type	Automatic
Usage/Application	Laboratory
Type	Unevenness Indicator

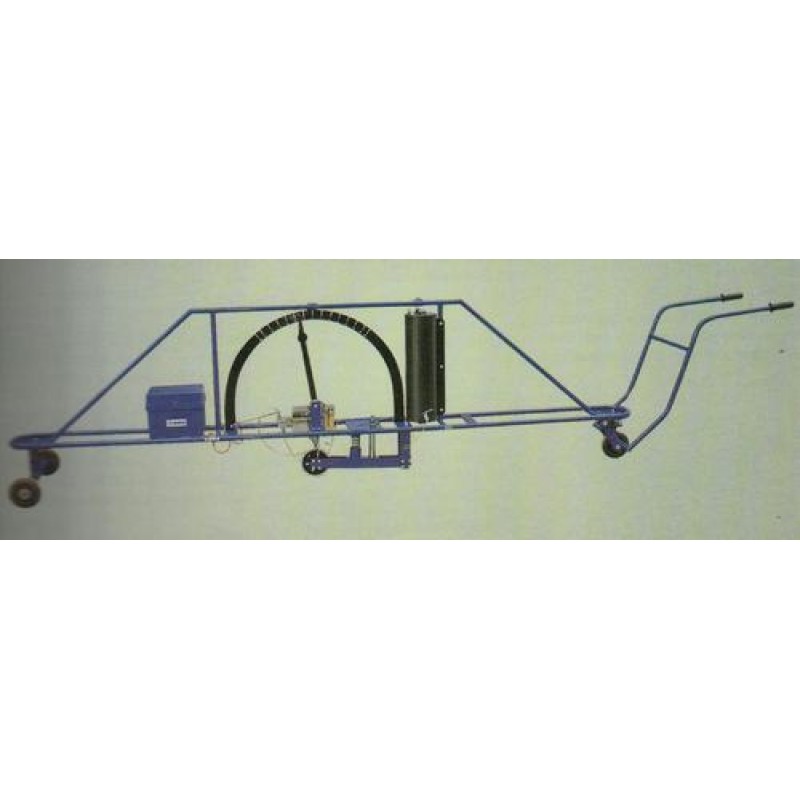

Consists of a mobile frame of metallic tubing mounted on two datum wheels, which provide a line of reference with respect to which the irregularities are determined. A probe wheel is mounted in the line of the datum wheels. Movement of the probe wheel is taken to the pointer through a sprocket wheel.
The pointer moves over a graduated dial. Handles are provided at either end of the frame for easy operation.As the instrument is moved along a line on the test surface probe wheel undulates with the undulations in the test surface leading to electric buzzing whenever the unevenness exceeds the set value. Automatic spraying of colors at locations where the unevenness is larger than the pre-set maximum permissible value.
The extent of bumps (protrusions & depressions) is instantaneously indicated by the pointer readable on the dial
