Ultrasonic Cleaners
Product Details :
| Tank Capacity | 1.2L |
| Power Supply | 110~240V |
| Frequency | 42, 000Hz |
- US Models (steel housing, SUS tank)
- All parts are made of durable 304 stainless steel tanks, cover and powder coating steel housing.
- Maximum heater temperature is 70℃.
- Digital LED display using splash-proof keypads: timer (1 to 99 min), temperature monitor.
- High-frequency 40 kHz sound waves provide greater cleaning power and increased reliability.
- Multiple frequency on 3 stages for both gentle cleaning and intensive cleaning.

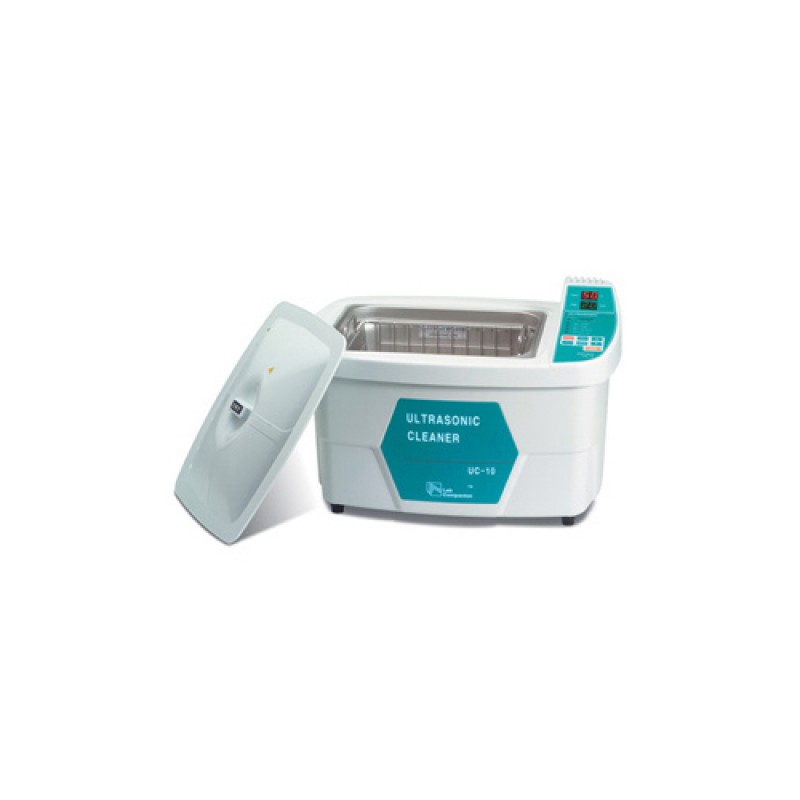

- UC Models (ABS / PBT housing, SUS tank)
| Model | UC – 02 | UC – 10 (10P) | UC – 20 (20P) | |
|---|---|---|---|---|
| Temperature Range (℃ / ℉) | 2 / 0.07 | 10 / 0.35 | 20 / 0.70 | |
| Bath Volume (L / cu ft) | Amb. ~ to 50 / Amb. ~ to 12 | Amb. ~ to 70 / Amb. ~ to 158 | ||
| Ultrasonic Power (W) | 70 | 200 [300] | 400 [500] | |
| Dimension | Bath Internal(W×L, D) (mm / inch) | 142×132, 104 / 5.6×5.2, 4.1 | 300×240, 150 / 11.8×9.4, 5.9 | 495×292, 150 / 19.5×11.5, 5.9 |
| Overall(W×L×H) (mm / inch) | 290×210×200 / 11.4×8.4×7.9 | 490×368×297 / 19.3×14.5×11.7 | 721×451×297 / 28.4×17.8×11.7 | |
| Net Weight (kg / lbs) | 2 / 4.4 | 11 / 24.3 | 17/ 37.5 | |
| Electrical Requirements(230V, 50 / 60Hz) | 0.3A | 0.9A (1.3A) | 1.7A (2.2A) | |
| Cat. No. | BDH53015 | BDH53045 (BDH53055) | BDH53065 (BDH53075) | |
| Electrical Requirements(120V, 50 / 60Hz) | 0.6A | 1.7A (2.5A) | 3.3A (4.2A) | |
| Cat. No. | BDH53013 | BDH53043 (BDH53013) | BDH53063 (BDH53073) | |
US Models (steel housing, SUS tank)
| Model | US-05 (05P) | US-10 (10P) | US-20 (20P) | |
|---|---|---|---|---|
| Bath Volume (L / cu ft) | 5.7 / 0.20 | 10 / 0.35 | 20 / 0.70 | |
| Temperature Range (℃ / ℉) | Amb. ~ to 70 / Amb. ~ to 158 | |||
| Ultrasonic Power (W) | 150 [200] | 200 [300] | 400 [500] | |
| Dimension | Bath Internal(W×L, D) (mm / inch) | 300×150, 150 / 11.8×5.9, 5.9 | 300×240, 150 / 11.8×9.4, 5.9 | 495×292, 150 / 19.5×11.5, 5.9 |
| Overall(W×L×H) (mm / inch) | 380×236×300 / 15×9.3×11.8 | 360×300×300 / 14.2×11.8×11.8 | 565×360×300 / 22.2×14.2×11.8 | |
| Net Weight (kg / lbs) | 9 / 19.8 | 12.5 / 27.6 | 19 / 41.9 | |
| Electrical Requirements(230V, 50 / 60Hz) | 0.7A (0.9A) | 0.9A (1.3A) | 1.7A (2.2A) | |
| Cat. No. | BDH53125 (BDH53135) | BDH53145 (BDH53155) | BDH53165 (BDH53175) | |
| Electrical Requirements(120V, 50 / 60Hz) | 1.3A (1.7A) | 1.7A (2.5A) | 3.3A (4.2A) | |
| Cat. No. | BDH53126 (BDH53136) | BDH53146 (BDH53156) | BDH53166 (BDH53176) | |
