Three Cylinder Four Stroke Petrol Engine Test Rig

Product Details :

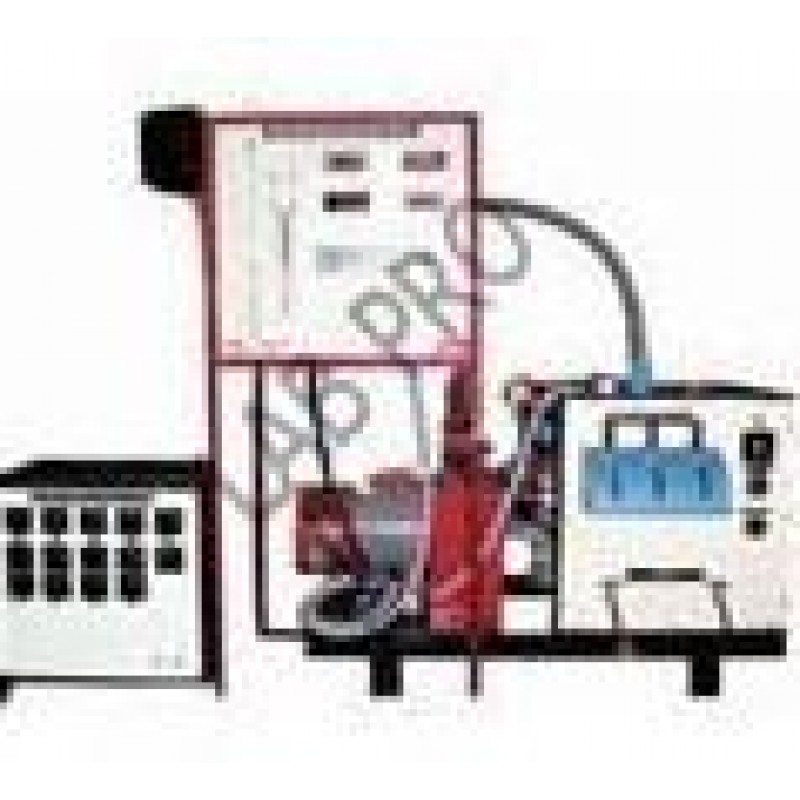

The setup consists of three cylinder, four stroke, petrol engine connected to dynamometer for engine loading. The setup has stand-alone type independent panel box consisting of air box, fuel tank, manometer, fuel measuring unit. Engine jacket cooling water inlet, outlet and calorimeter temperature is displayed on temperature indicator. Flowmeters are provided for cooling water and calorimeter flow measurement. Provision is also made for conducting Morse test.

Experiments

• Study of engine performance for power, efficiencies, fuel consumption, air fuel ratio and heat balance
• Morse test

Utilities Required

• Electric supply: Provide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. (Neutral – Earth voltage less than 5 VAC)
• Space: 3500Lx4000Wx2000H in mm,
• Water supply: Continuous clean and soft water @4000 LPH, Head 10 m.(min), Connection 1” BSP with tap/valve.
• Drain: Provide drainpipe 2 NB size.
• Exhaust: Provide exhaust pipe 1 NB size.
• Fuel, oil: Petrol: @ 10 liter, Lub. oil: @ 3.5 liter (20W40)
