Shear Test Apparatus

Product Details :

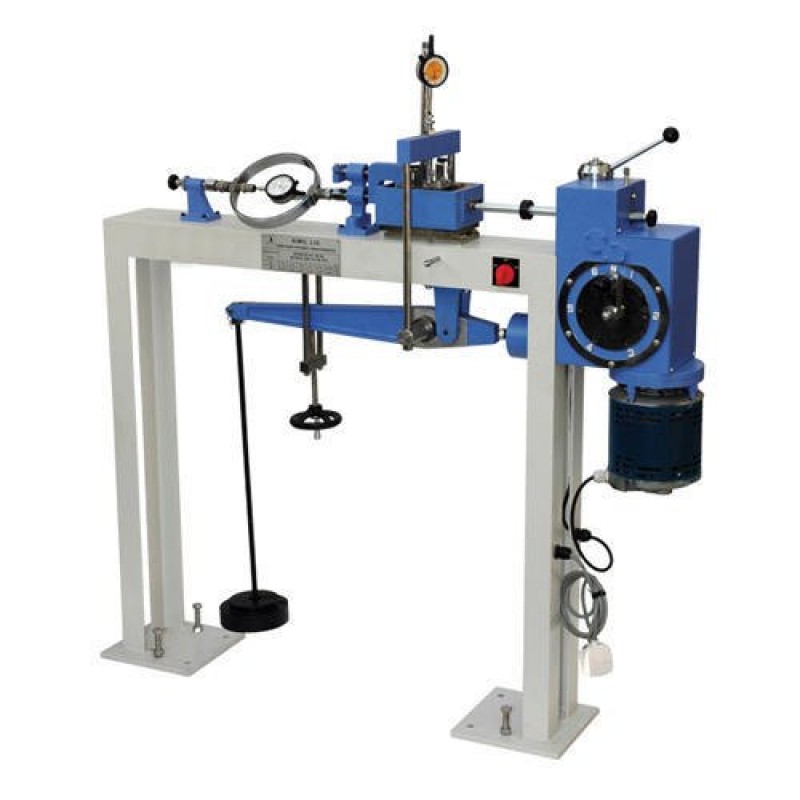

The Direct Shear test apparatus consist of a square or circular box divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the sections of the shear box. This force causes a shear failure along the juncture between the box sections of this. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has V-strips on which the shear box housing rests. The load yoke in these direct shear test apparatus helps counter balance the loading system. The lead screw connected to the shear box housing helps application of shear stress.
