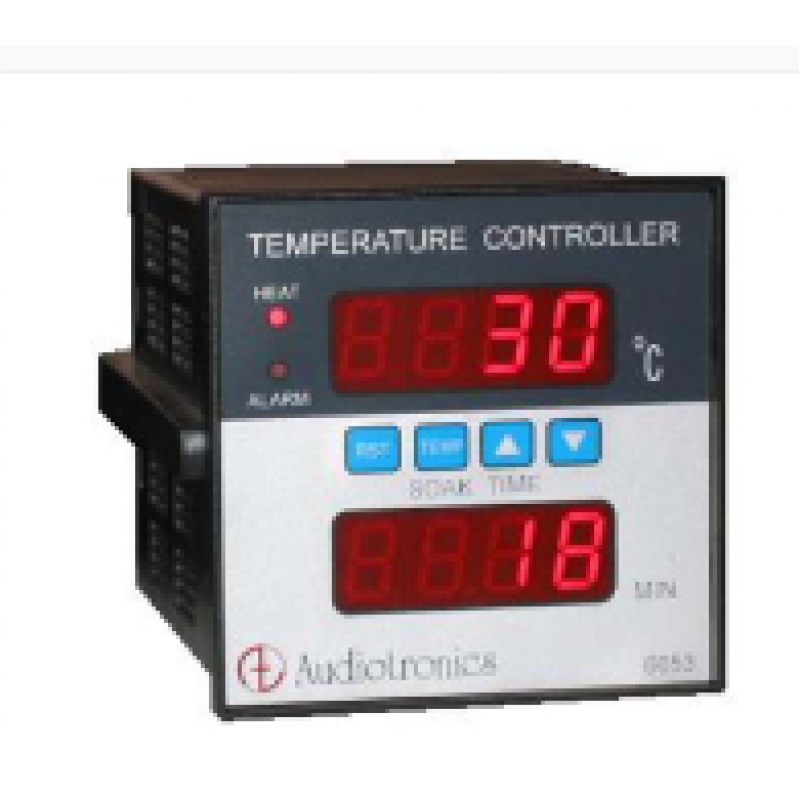

Temperature Controller with Soak Timer
Product Details:

• Microprocessor based controller, K thermocouple with Auto cold junction compensation
• Separate displays for Temperature and Timing

• Heater relay output to control temperature
• Soak Time settable from 1-999mins and activated after set temperature is reached

• Alarm relay output to indicate end of soak time and any intermediate heater failure
• Current status of soak timing saved on power failure

• Non-volatile memory to save settings
• Parallel reset switch at rear for rugged usage for restarting each cycle
• Aesthetically designed front panel with membrane switches


Specification

Display	4 digit 0.56” 7 segment Red LED display for Temperature 4 digit 0.56” 7 segment Red LED display for current soak timing
Sensor	K thermocouple Temp range : 0 to 1250˚C Accuracy : ±0.1% of Full Scale ± 1 digit
Soak time range	0-999mins
Heater Relay	On/Off with 3˚C hysteresis
Alarm Logic	On for temp < Set Point-100˚C during soak time On for 30 seconds after end of soak time
Relay Rating	5 Amps/220V AC Relay Contact outputs
Memory	Non-volatile EEPROM to save Set Temperature, Time and status
Supply	220V AC ± 15% @ 50/60Hz
Dimensions	96mm x 96mm x 135mm
Weight	800 grams
