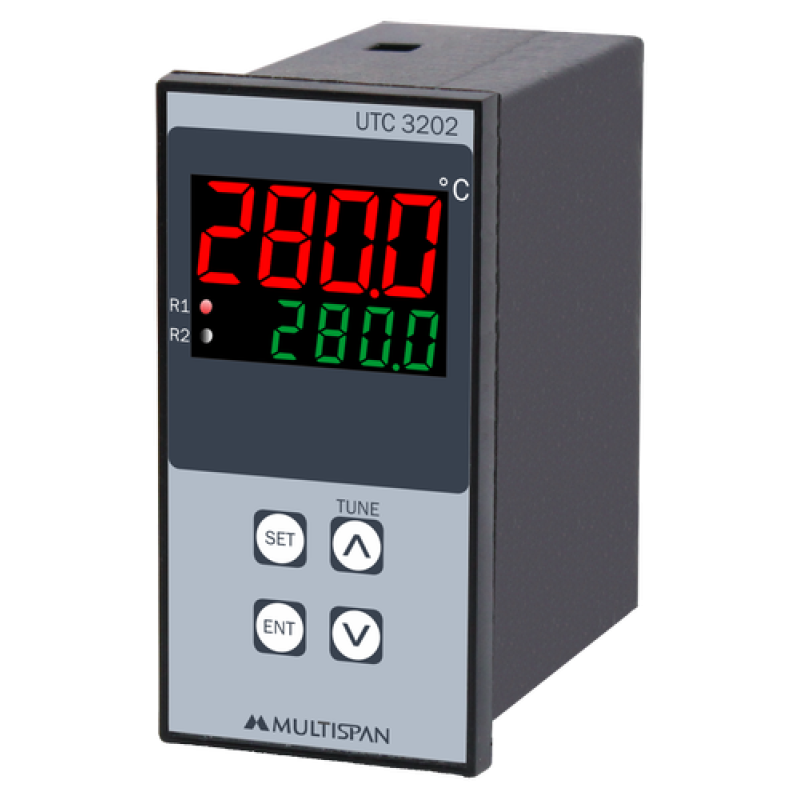

MODEL

UTC-3202

UTC-321P

Dimension (HxWxD) mm

96 X 48 X 75

96 X 48 X 75

Panel Cutout (mm)

44 X 92

44 X 92

Display

Upper Display: 7 segment, 4 digit, 0.39" RED LED display-Process value.Lower Display: 7 segment, 4 digit, 0.28" GREEN LED display-Set value

Sensor

J / K / PT-100 2W/3W (Configurable)

Range

J(0 to 600°C), K(0 to 1200°C), PT-100 2W/3W(- 99°C to 400°C,-99.9°C to 400.0°C)

Control Output

Output1:1 Relay &SSR Both Parallel,Output2:1 Relay for Alarm or Cooling

Output1:1 Relay &SSR Both Parallel

Relay Ratings

1C/O, 5A, 230V AC

SSR/Buzzer

12V DC approximately

Set point

2 - Set Point

1 - Set Point

Control Action

PID / ON-OFF (Configurable)

Operating Mode

SET-1:Heating,Cooling,High Alarm,Low Alarm,Inband,Outband,SET-2::Heating,Cooling,High Alarm,Low Alarm,Inband,Outband,End Alarm

Resolution

1°C Fix

Accuracy

±1% of FSD

Power Supply

100-250V AC/DC, 50/60 Hz, SMPS

Protection

Relay turns OFF in case of sensor break

Indication

"OPn" message is displayed if sensor is disconnected & LED for Relay Status Indication

Enclosure Material

ABS & Polycarbonate

Operating Ambient Temp

0°C - 55°C

Relative Humidity

Upto 95 % RH Non Condensing
