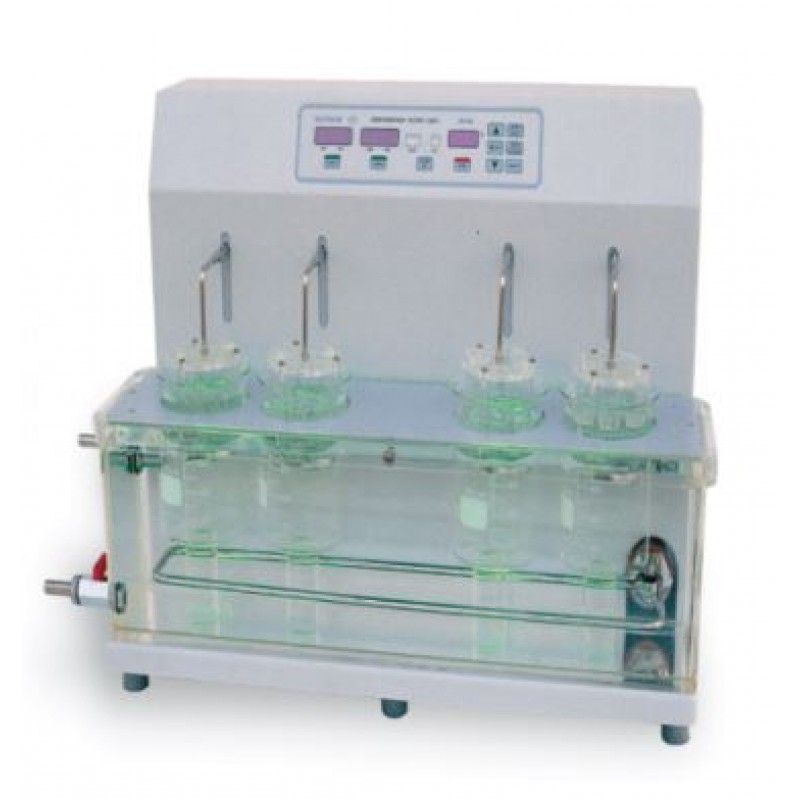

Tablet Disintegration Tester- ED-4AL
Product Details :
- Complies with USP, IP and Ph. Eur. specifications
- Supports 4 USP baskets
- Each pair of baskets controlled by independent timer and motor
- Snap-click loading and a swivel free basket movement
- Green illumination for better visibility of disintegration process
- Programmable temperature controller
- Magnetically coupled pump for water circulation in the bath
- Auto parking of the baskets at the top position at the end of the test
- Ergonomically designed splash proof panel
- External probe for beaker temperature validation
- Dual range timer
- Maintenance-free smooth drive
Specifications :
| Model | ED-4AL |
| Number of baskets | 4 |
| Number of strokes | 30 +0.5 strokes/minute |
| Stroke length | 55 mm +2 mm |
| Number of tubes per basket | 6 |
| No. of motors | 2 |
| Motor type | DC stepper motor of 6V DC and 3.5kg cm torque |
| Range | 20o C to 39.9 oC |
| Control accuracy | + 0.3o C |
| Resolution | 0.1oC |
| Display | 3 digit LED |
| Heater | 750 Watts |
| Sensor | RTD |
| Supply | 230 V AC, 50 Hz (provided internally) |
| Flow rate | 8 litres/minute |
| Material | 6 mm thick clear acrylic |
| Capacity | 17 litres of water (required for the test) |
| Dimensions (L x W x H) | 815 x 255 x 230 mm |
| No. of timers | 2 |
| Range 1 | 1 sec. to 59 mins. 59 secs. |
| Range 2 | 1 min. to 9 hrs. 59 mins. |
| Display | 4 digit LED each |
| Supply | 230V AC, 50 Hz |
| Power consumption | 1 K VA |
| Dimensions (L x W x H) | 350 x 390 x 510 mm |
| Weight | Net : 23 kgs Gross : 32 kgs |
