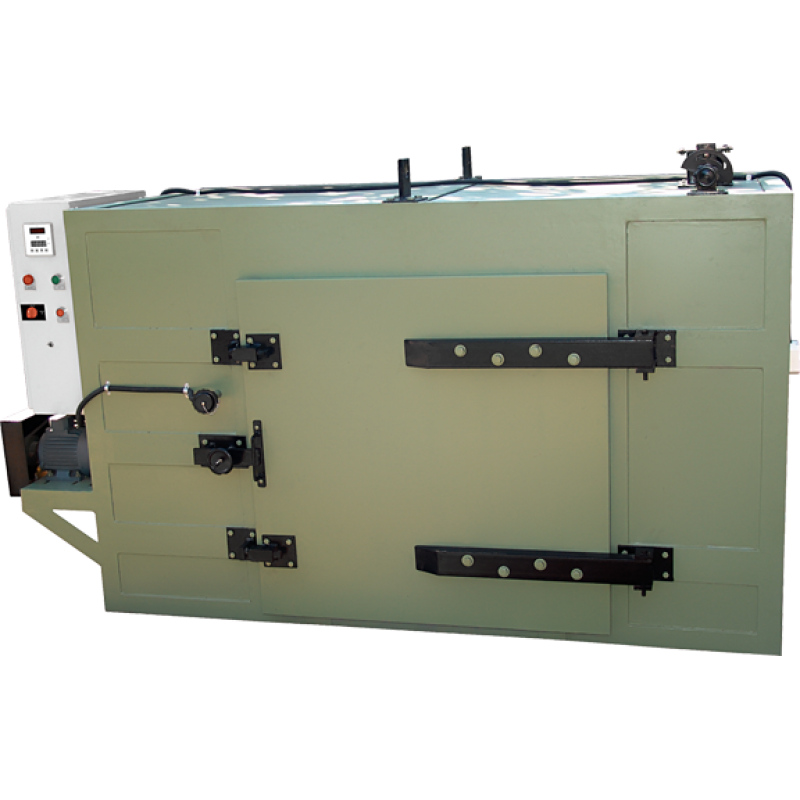

CABINET:

Cabinet of the dryer will be of 6/12/24/48/196 Trays capacity, made from MS angle frame of double wall construction lined internally with 18 SWG and externally 18 SWG MS sheet. The cavity formed in between double wall will be properly insulated with 60 mm thick Glass wool to prevent heat losses from dryer.

DOORS:

Heavy duty airtight hinged doors made from 16 SWG MS sheet backed by 50 mm Glass wool on the inner side and ball catch locking arrangement together with 40 mm asbestoses gasket rope ensure very sturdy construction of the dryer.

 AIR CIRCULATION:

The uniform air circulation within the dryer will be carried by two Nos. of multi blade type MS fabricated fan mounted on externally on ball bearing pedestal and driven by 1 HP TEFC Electric motor. Air inlet and outlet dampers are provided on the top roof of the dryer cabinet.

CONTROL PANEL:

Pre wired control panel will be consisting of Digital Temp. Indicator, Contactor for motor, Over current relay, Fuses, Indicating lamp, Push buttons, Main isolator switch etc.
