TRANSFORMER 50KVA/65KVA /70KVA/100KVA

Product Details :

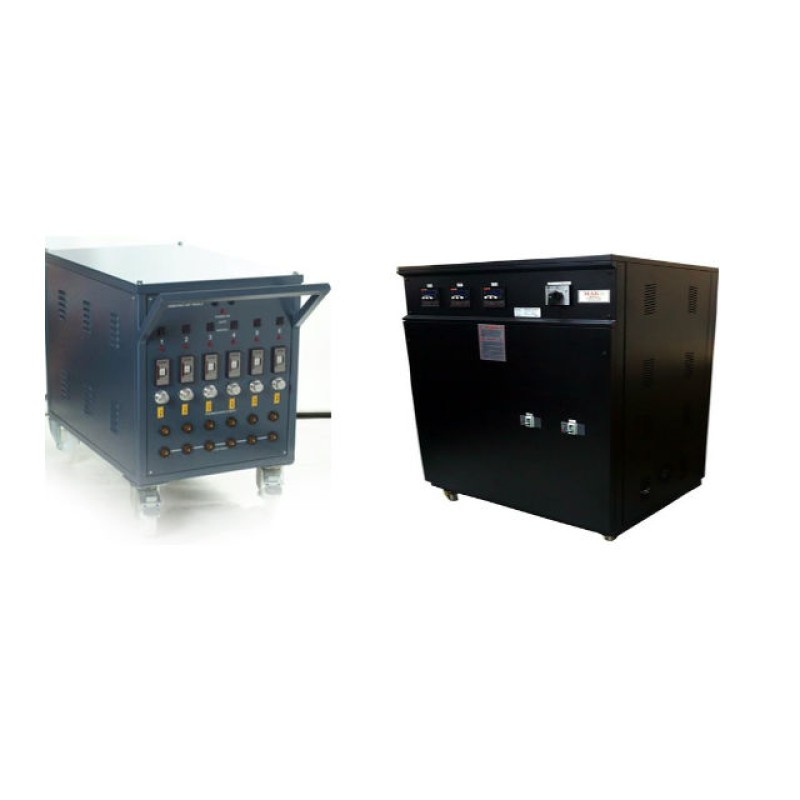

6 way mobile power source transformers, is housed in a robust, mild steel box section frame which has wheels fixed to the base for ease of movement. This transformer has the capacity to run twenty four, 60 volt, 2.7kw ceramic heaters from its secondary output supply. The front control panel consists of mini controllers and energy regulators which can be used to perform pre and post weld heat treatment. Neon indicator lights are fitted to enable the user to see clearly when a channel is in use. It also features an auto/manual switch to allow the use of an external automatic temperature programmer, twelve female panel mounted twist locks are fitted to enable the triple cable sets to be connected and there are six thermocouple sockets on the front of the unit and additional sockets are also fitted to the rear of the unit. The rear of the unit also features 3 x 110V auxiliary sockets, a ventilation fan, main circuit breaker and both multi plug and single channel connections for use with external programmers. The transformer is fully CE Approved.
