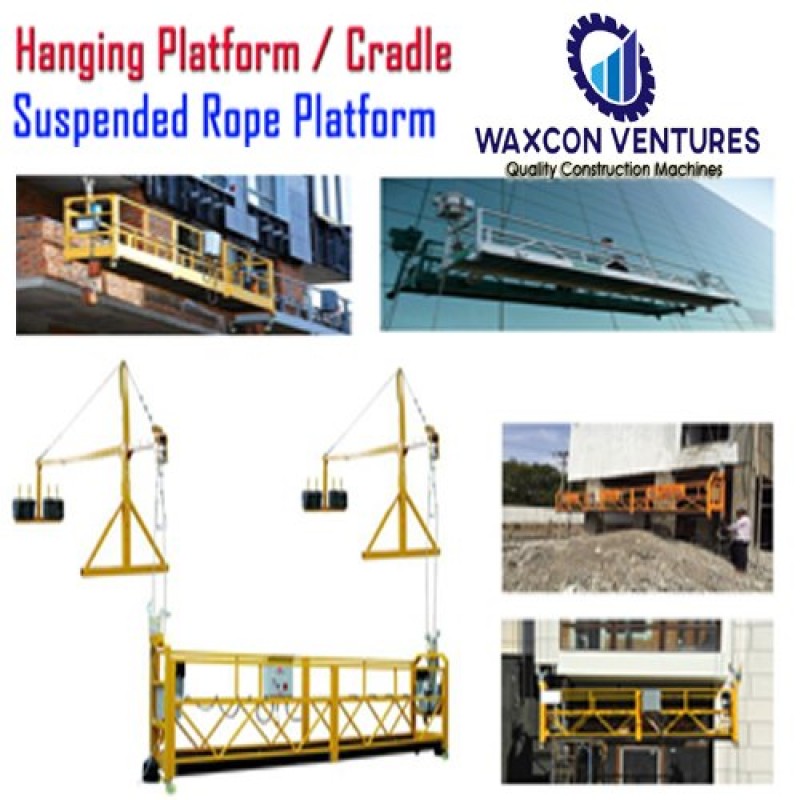

Hanging Platform / Cradle
Product Details :
| Model Name/Number | ZLP-800 |
| Material Of Platform | Galvanized |
| Load Capacity | 800 KG |
| Platform Length | 7.5 MTR |
| Platform Width | 0.75 MTR |
| Type Of Mast | Double Mast |
| Work Surface | Painted Steel |
| Installation | Provided |
| Suspended Height | 150 Mtr |
| Machine Weight | 1900 KG |
| Platform Material | MS |
| Rated Lifting Force | 1.8 KW x 2 Pcs |
| Rated Power Kw | 4 KW |
| Rated Speed | 9 MTR |
| Safety Lock Type | LST30 |
| Usage/Application | Outside Building |
| Counterweight | 40 Pcs |
1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be adjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized steel wire rope
8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot galvanized could choose; price will be different. )
Type | ZLP800-7.5mtr | ||
Rated Load | 800 kg | ||
Lifting Speed | 9 m/min | ||
Max Lifting Height | 100 Meter | ||
Dimension of platform (L X W X H) | (2.5m X 2+1m+1.5m)X0.76mX1.45m | ||
Suspension Mechanism | Front beam overhang | 1.3 ~ 1.7 m | |
Adjustable Height | 1.15 ~ 1.75 m | ||
Hoist | Model | LTD 8.0 | |
Lifting force | 8 KN | ||
Motor | Power | 1.8 KW | |
Voltage | 415 V, 50 HZ, 3 phase | ||
Rotation speed | 1400 R/Min. | ||
Brake Torque | 15.2 Nm | ||
Safety lock | Type | Tilt proof safety lock | |
Locking cable angel | 3-8 degree | ||
Allowable impulsive force | 30 KN | ||
Weight | Suspension platform including hoist, safety lock, electric control panel. | 540 kg | |
| Suspension mechanism | 400 kg | |
| Counterweight | 1000 kg | |
| Whole machine weight without steel wire rope & power cable | 1940 kg | |
Wire rope | Type | 4X31SW+FC-8.6 | |
