Technical Specification
| CAPACITY | PH 2040 | PH 2060 | PH 2448 | PH 3060 | |
| Max. Table Size | mm | 500 x 1000 | 500 x 1500 | 600 x 1200 | 750 x 1500 |
| Max. Longitudinal Travel | mm | 1075 | 1575 | 1275 | 1575 |
| Max. Cross Transverse | mm | 550 | 550 | 650 | 800 |
| Max. Spindle Center Height above Table | mm | 550 | 750 | 750 | 750 |
SPEED AND FEEDS
| Max. Table Speeds | m/min. | 1.5-18 | |
| Power Cross Transverse | mm/min | 1500 | |
| Auto Cross Feed at each Table Reversal (Infinitely variable) | mm | 0.5 to 10 | |
| Least Count of Vertical feed head wheel | mm | 0.002 | |
GRINDING HEAD
| Size of Grinding Wheel | mm | 400 x 50 x 127 | |||
| Power of Spindle Motor | HP | 5 | 7.5 | 10 | |
| Speed of Grinding Spindle | RPM | 1400 | |||
HYDRAULIC SYSTEM
| Working Pressure | Kg/Cm | 30 | |
| Motor | HP | 5 | 7.5 |
| Tank Capacity | Ltrs. | 150 | 200 |
| Note :- We reserved the right for any modification in machine without prior notice & showing all parts are not of standard accessories. | |||
| Machine is Tasted as per IS: 2743:1992 | ISO: 1986:1985 | ||

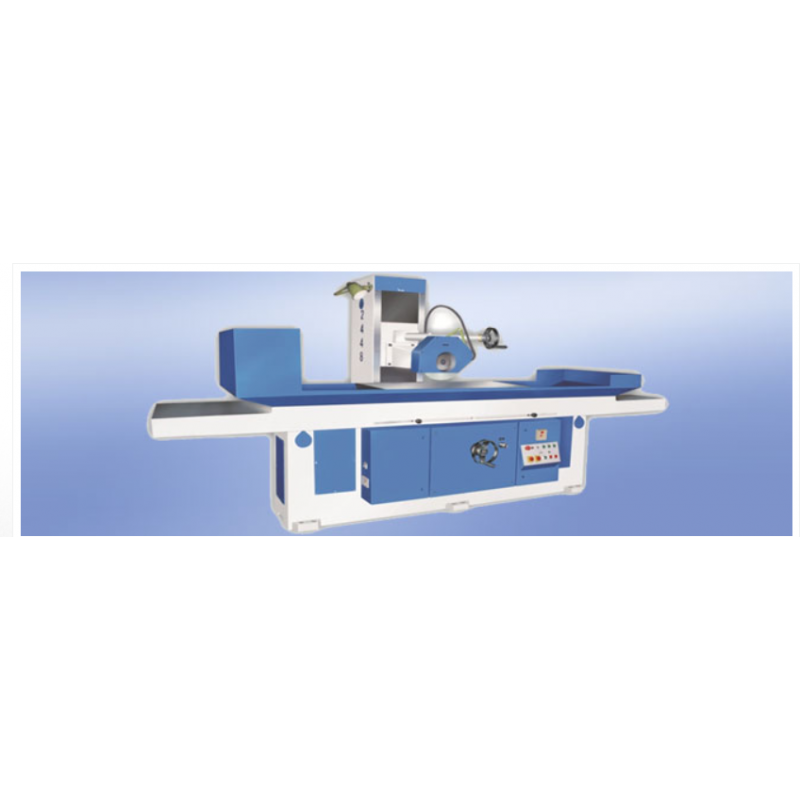

Surface Grinding Machine
- Views: 301
-
Precision Machine Tool - Vendor Type: Manufacturer
- Product Code: PMT0000001
- Availability: In Stock
- ₹0
Seller information
Precision Machine Tools
- Precision Machine Tools
- Ahmedabad, India
- Business Type :Exporter, Importer, Manufacturer
