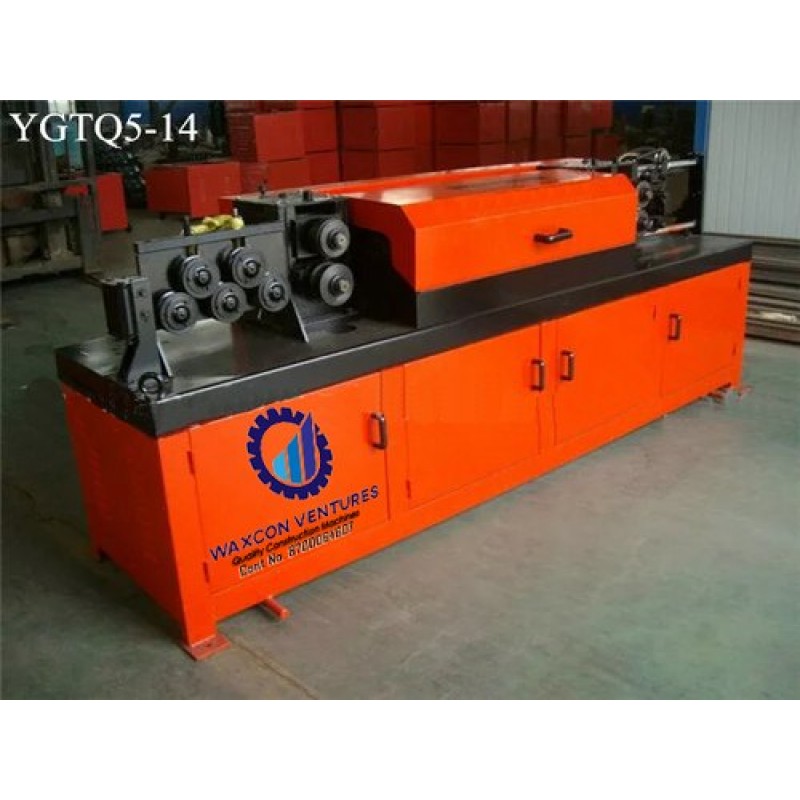

TMT Bar Straightening Machine
Product Details :
Automation Grade | Automatic |
Suitable For | Mild Steel |
Usage/Application | Construction Rings / Stirrups |
Brand | Waxcon Ventures |
Cutting | 5-14 mm |
Working Speed | 48-55 m/min |
Weight | 1200 Kg |
Motor Power | 11 Kw |
Dimension | 2940x800x1100mm |
Steel bar straightening machine is mainly applied in straightening and length cutting and applicable to cold rolling Level III Steel Bar, cold rolling plain round bar, and hot rolling coiled bar round steel.
The machine is highly automatic and pulling speed is fast. It is continuous working system and is equipped with automatic counting shutdown device. After the machine straightening, the surface of linear material shall be free from scratch. The strength loss is small and straightness accuracy is good. At the same time, the machine is easy to operate, blanking process is sample, and production efficiency is high, etc.
