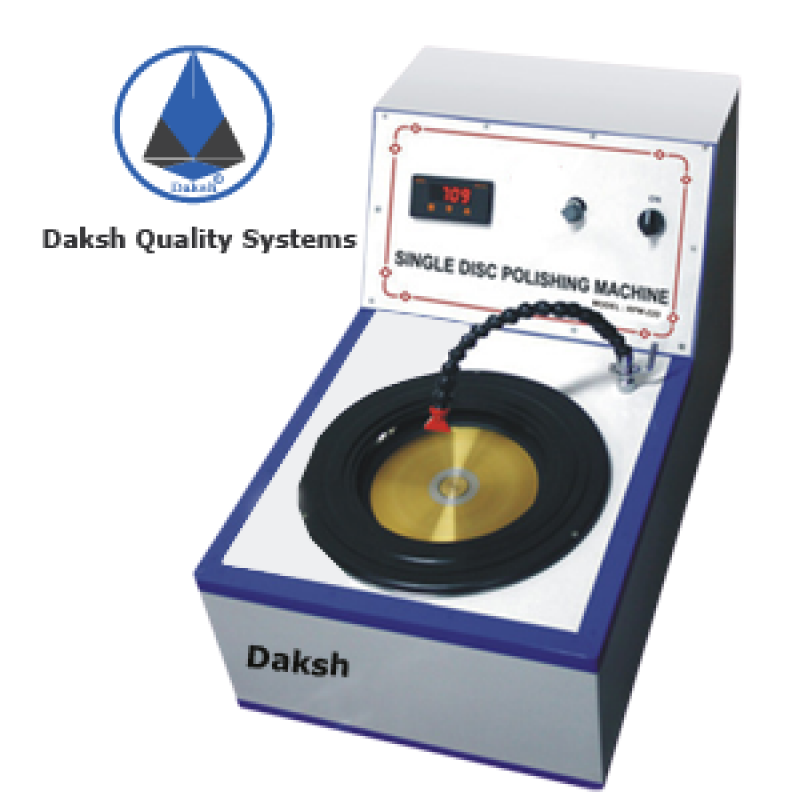

Single Disc Polishing Machine(DC motor)

Product Details :

Single Disc Polishing Machine(DC motor)

This Polishing/Lapping Machine is designed according to the needs of metallographists. Single Disc is independently driven by high torque DC motor. The speed will be continuously varied as indicated on the front fascia. Water faucet arrangement & paper holding band, permits the discs for wet / dry grinding and final lapping. RPM shows by Digital meter and controlled by small knob.

Technical Data

• Disc Diameter : 8 inch
• Motor Capacity : ½ Hp DC
• Supply : 15 Amps, 230V, Single phase.
• RPM : set as per sample preparation upto 1000
• RPM Control : Variable

Description

• Polishing M /c is used for Polishing the Metallography Samples for Microscopic observation to study various metal structures.

Polishing

• Polishing is the final step in producing a surface that is flat, smooth, Scratch - free and mirror like in appearance. Such a surface is necessary for subsequent accurate metallographic interpretation, both qualitative & quantitative.
