Semi-Conductor Diode Characteristics Experiment

Product Details:

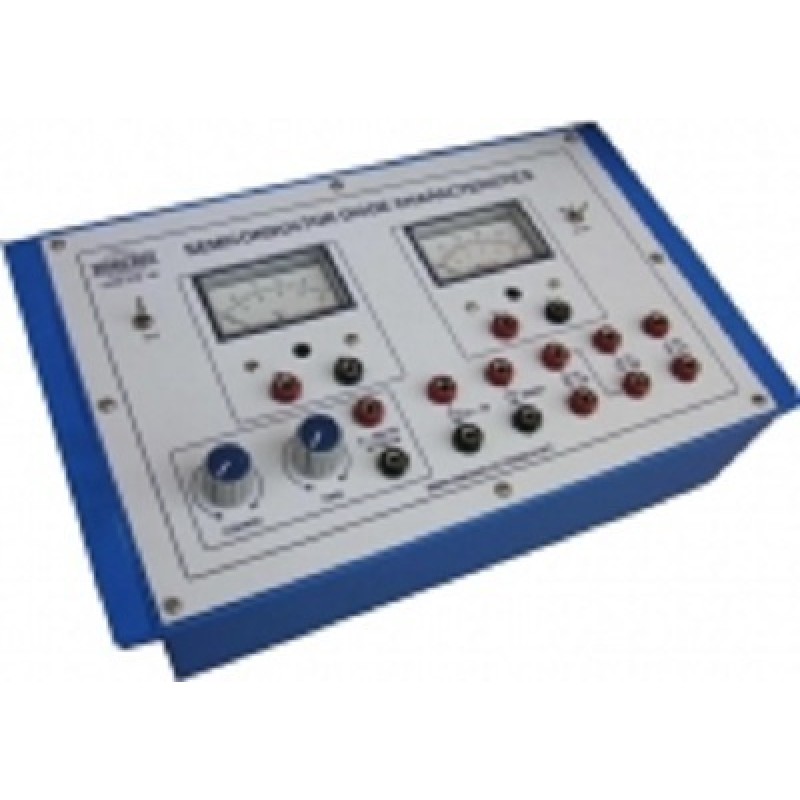

OMEGA TYPE ETB-68 Experimental Training Board has been designed specifically for plotting

Characteristics of Ge & Si Semiconductor Diodes. The board is absolutely self contained and requires no other apparatus. Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

• To Study and Plot the Forward and Reverse Bias characteristics of (Ge & Si) Semiconductor Diodes.
• To Determine the Static and Dynamic resistances of Forward Biased p-n junction of the given Diodes.

Features:

• 0-10V D.C. at 50mA, continuously variable with Coarse & Fine Pots, regulated Power Supply.
• Digital D.C. Voltmeter, 31⁄2 Digit ranges 0-2V/20V.
• Digital D.C. Ammeter 31⁄2 Digit ranges 0-20uA/20mA.
• Ge and Si Semiconductor Diodes
• Adequate no. Of other electronic components.
• Mains ON/OFF switch and Fuse.
• The unit is operative on 230V ±10% at 50Hz A.C. Mains.
• Adequate no. of patch cords stackable 4mm spring loaded plug length 1⁄2 metre.
• Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
• Strongly supported by detailed Operating Instructions, giving details of Object, Theory,
• Design procedures, Report Suggestions and Book References.
• Weight : 3 Kg. (Approx.)
• Dimension : W 340 x H 125 x D 210

Additional Information:

• Item Code: ETB-68
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
• Delivery Time: 1-2 Week
