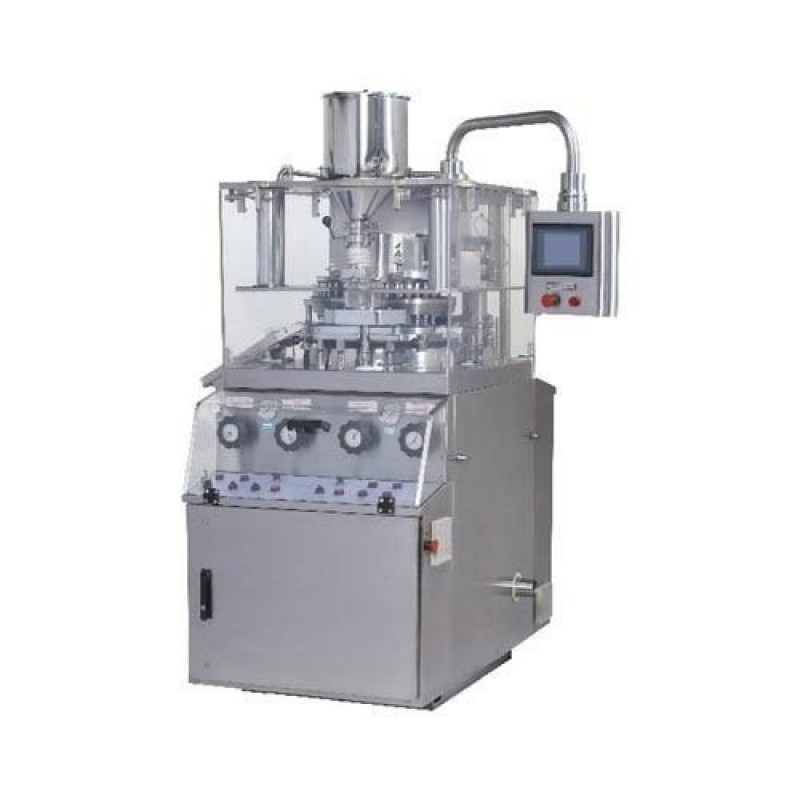

Rotary Tablet Press Machine Pharmaceuticals

Product Details :

Rotary Tablet Press Machine 16 station pharmaceuticals

Description:

We introduce ourselves as a leading manufacturer, Supplier and EXporter of Tablet making machines like, single punch, 6 punch, 10 punch, 8 station rotary tablet press, 16 station rotary tablet press, capsule filling machine manual or hand operated in 100 holes and 300 holes and capsule loader machines also.

Technical Specification:-

• Machine Type: BLTE-651
• Number of Station: 16
• Type of Tooling     : D
• Output tablets / hour: (MAX.) 40,320 (42 RPM)
• Max. Operating Pressure : 10 Tons
• Max. Tablet Diameter: 25 mm
• Depth of Fill    :20.5 mm
• Upper Punch Penetration : 1.5 - 8 mm
• Main Electric. Motor : 5 H.P.,415 Volts, 50 Hz. (Crompton Greaves Make)
• Overall Dimension (mm)  : 980 x 1020 x 1820
• Net Weight : 1100 Kg.
• Gross Weight: 1500 Kg.
• Easy Cleaning & quick change over of Dies & Punches
• Square GMP Model
• Heavy duty construction of the machine with Stainless Steel middle plate
• Phosphorus Bronze bush is provided in Turret and it is mounted on Needle Roller bearing results easy & noiseless running of the machine.
• Upper Punch penetration is provided as a standard features.
• Upper Pressure Roller &Lower pressure roller is made of OHNS material
• Double sided lifting cam is provided for safe movement of Upper punches.
• Variable Speed Pulley is provided for Turret RPM variation.
• Aluminium Turret Guards.
• Imported Needle Roller bearing is provided on the bottom of Turret.
• One Shot Lubrication pump for Upper & Lower Pressure Roller
• Effective dust extraction nozzle is provided along with the machine.
• Interlocking to all upper guard is provided as a safety features
• Electronics digital tablet counter / rpm meter is provided in front control panel
• Reverse direction motion protection is provided to avoid major accidents

Additional Information:

• Item Code: BLTE-111
• Production Capacity: 12000 tablet/hour
• Delivery Time: one month
• Packaging Details: Wooden crate
