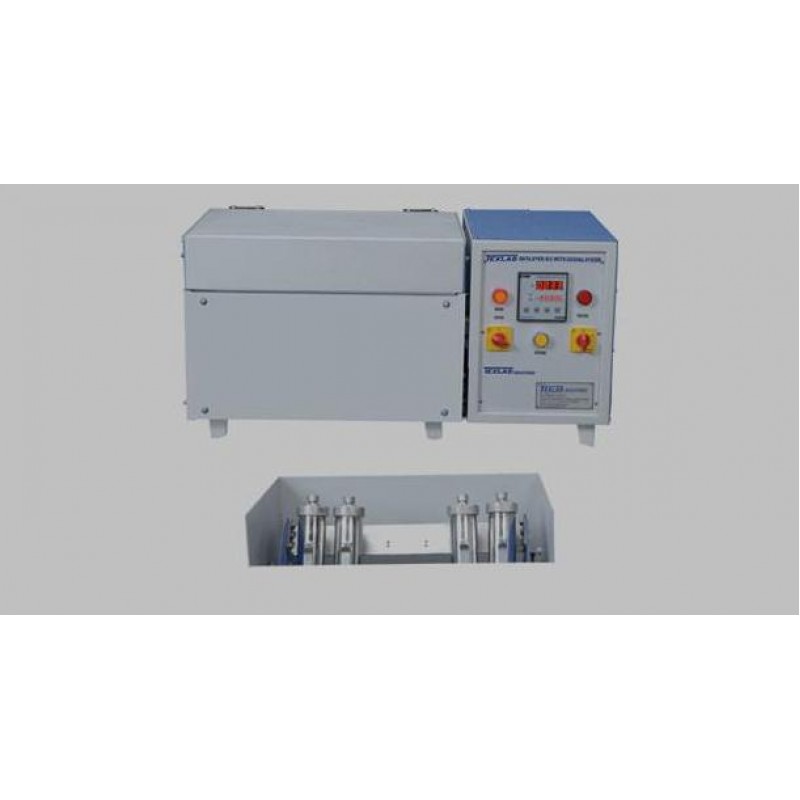

Rota Beaker Dyeing Machine (4 Models)
Product Details :
Easy Locking System
(1) Old Model
With Digital Microprocessor based Temperature Controller & Timer. Also Gives buzzer after completion of set time.
| Materials of Construction. | Whole Machine constructed out of S.S. 304 Material While Beaker &its lead made out of S.S. 316 material. |
|---|---|
| No. of Models. | Two – Model A & B. |
| No. of Beakers | 12 x 250 ML Cap. Model A 18 x 250 ML Cap. Model B |
| Drive | Equipped with 1/8th H.P. Single Phase Geared Motor to give 23 RPM of Motor. |
| Heater. | 2 Nos. immersion Heater each of 3 kw Cap. |
| Electric Supply. | 3 Phase 440 volts.AC |
(2) New Model
With Digital Microprocessor based DP-07 Temperature Controller & Timer. Also Gives buzzer after completion of set time.
| Materials of Construction. | M/c. constructed out of S.S.304 Materials. Panel Material M.S.Powder Coating.Beaker is S.S.316. |
|---|---|
| No. of Models. | Two – Model A & B. |
| No. of Beakers | 12 x 250 ML Cap. Model A 18 x 250 ML Cap. Model B |
| Drive | Equipped with ¼ H.P. Three Phase Geared Motor to give 23 RPM of Rotor. Motor &Gear Box .Itlian Make |
| Heater. | 2 Nos. immersion Heater each of 3 kw Cap. |
| Electric Supply. | 3 Phase 440 volts.AC/ 1 Phase 220V A.C |
(3) Dosing System With Easy Lock system
With Digital Microprocessor based DP-07 Temperature Controller Also Gives buzzer after completion of process time.
| Materials of Construction. | Whole M/c. constructed out of S.S.3304 While Beaker &its lead made out of S.S. 316 Materials with. |
|---|---|
| No. of Models. | Two – Model A & B. |
| No. of Beakers | 12 x 250 ML Cap. Model A 18 x 250 ML Cap. Model B |
| Drive | Equipped with ¼ H.P. Three Phase Geared Motor to give 23 RPM of Rotor. Motor &Gear Box .Itlian Make |
| Heater. | 2 Nos. immersion Heater each of 3 kw Cap. |
| Electric Supply. | 3 Phase 440 volts.AC/ 1 Phase 220V A.C |
Note - In normal Rota Beaker Dyeing machine, you have to open the Cap after 30 minutes. Then you have to add required chemicals like Gober Salt or Caustic Soda. With Dosing system, you need not to open Cap. You can easily inject the required chemicals without opening the cap. This will save lot of time and the pressure stored there- in shall remain same. Hence you will get a brilliant dyeing.
Model A & Model B
(4) Multi Purpose with Easy Lock System
In Single Rotar You can Use the Beaker of 100ML, 150 ML, 250ML & 500ML Cap. With machine we can provide 250 ML Cap. Beaker.
With Digital Microprocessor based DP-07 Temperature Controller & Timer. Also Gives buzzer after completion of set time.
| Materials of Construction. | M/c. constructed out of S.S.304 Materials. Panel Material M.S.Powder Coating.Beaker is S.S.316. |
|---|---|
| No. of Models. | Two – Model A & B. |
| No. of Beakers | 12 x 250 ML Cap. Model A 18 x 250 ML Cap. Model B |
| Drive | Equipped with ¼ H.P. Three Phase Geared Motor to give 23 RPM of Rotor. Motor &Gear Box .Itlian Make |
| Heater. | 2 Nos. immersion Heater each of 3 kw Cap. |
| Electric Supply. | 3 Phase 440 volts.AC/ 1 Phase 220V A.C |
Model A & Model B
Extra for 12 x 100 ML Beaker. Each or 18 x 100 ML
Extra for 12 x 150 ML Beaker. Each or 18 x 150 ML
Extra for 6 x 500 ML Beaker. Each or 9 x 500 ML
(5) Easy Lock System with Washing Fastness facility.
With Digital Microprocessor based DP-07 Temperature Controller Also Gives buzzer after completion of process time.
| Materials of Construction. | Whole M/c. constructed out of S.S.3304 While Beaker &its lead made out of S.S. 316 Materials with. |
|---|---|
| No. of Models. | Model C. |
| No. of Beakers | 18 x 250 ML Cap. Model C |
| Drive | Equipped with ¼ H.P. Three Phase Geared Motor. Motor & Gear Box Italian make. give variable speed Upto 40 RPM. |
| Heater. | 2 Nos. immersion Heater each of 3 kw Cap. |
| Electric Supply. | 3 Phase 440 volts.AC |
Model C
Extra beaker for Washing Fastness 550 Ml Cap.(without Dosing) You can use 9 Beaker of 550 ML cap. In one time for Washing Fastness and dyeing.
