Rock Bolt Pull Out Test Apparatus
Product Details :
| Usage/Application | Laboratory |
| Capacity | 500KN |
| Display Type | Digital |
| Brand | ASI |
| Operating Mode | Semi-Automatic |
| Country of Origin | Made in India |

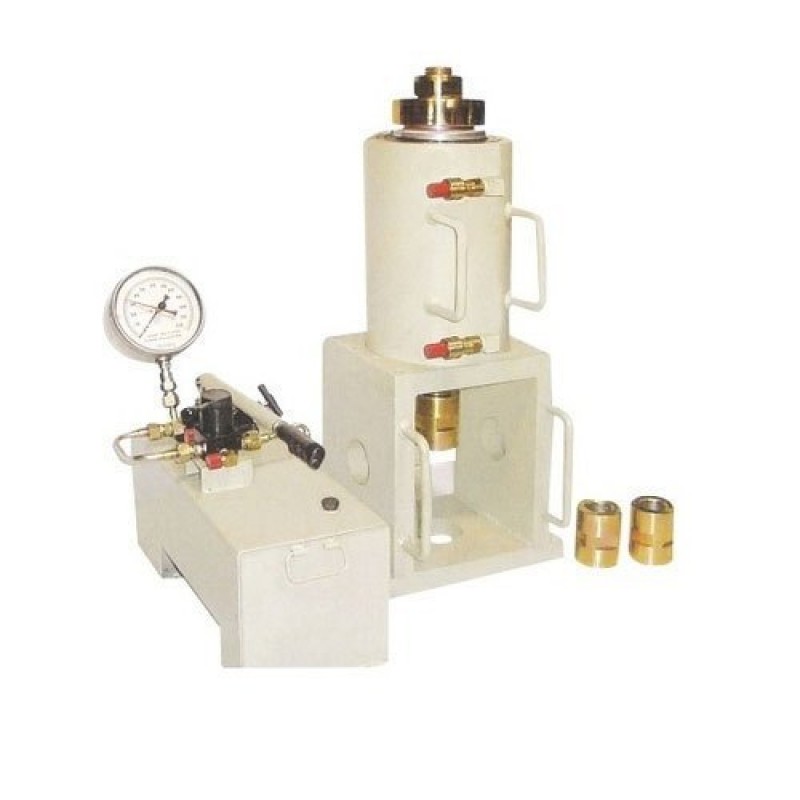

Rock Bolt Pull Out Test Apparatus
- As per B.I.S. – 11309, ASTM D4435, ISRM.
- The objective of the test method is to measure the working and ultimate capacities of rock bolt anchors.
- The system comprises of a central hole jack, hand pump with load gauge, directional control valve (only for central hole jacks above the capacity of 500kN), flexible pipes, truss high tensile test rod with coupling.
- In general the pull out force is indicated on load gauge, however a load cell can be used for the measuring of pull out load. Arrangement is provided for fixing dial gauge for estimating deflection against the load.
- Different size of adopters are provided with the high tensile test rod.
Additional Information:
- Delivery Time: Ready Stock
Rock Bolt Pull Out Test Apparatus
- Views: 62
-
A. S. I. Sales Pvt Ltd - Product Code: ASISPL0024
- Availability: In Stock
