Pulsating Demagnetiser With Conveyor

Product Details :

Vasals has developed and proven in many factories in India, This Electronic Pulsating Demagnetiser is very high precision & effective for use in the manufacture of industrial components, Usually many components / Products need to be magnetised for a specific process and then to be demagnetised before being put into actual use, Otherwise, they are likely to gather metal particle dirts, or suffer from the effects of magnetism. The magnetism is needed to be removed either totally, or at least to a minimum acceptable level of the residual magnetism. Reverse pulses applied to remove the residual magnetism. Standard Demagnetisers themselves consume a lot of energy in the above process, and still do not deliver the product demagnetised to a satisfactory level. The research work done by Vasals team, In this area Vasals has resulted in achieving an excellent quality of minimum residual magnetism after Demagnetisation. The average energy consumption is only 130 watts, as compared to that many times by others manufacturers (2 kW or more). So, the consumption is 25 to 35 times less. Thanks to the above Power saving technology and widely accepted by many Industries.

Vasals Demagnetisers pay back for themselves in a few years. The Demagnetising values repeatability is the highest, with almost zero maintenance.

Vasals Pulsating Demagnetisers can be supplied for in - line operation and On - line where the flow continues. These are highly reliable and durable products, and have started reaching Many factories in India and proved in many Industries. There are several models to cover small components to very large.

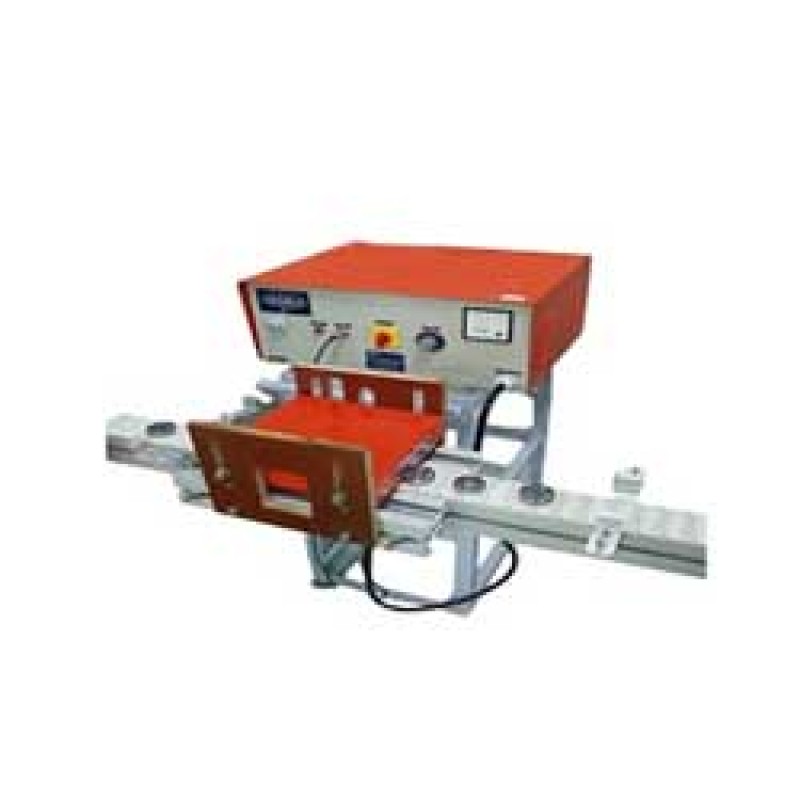

• Vasals Pulsating Demagnetiser is specially suited for the conveyor assembly, where component to be demagnetised online. It consists of power supply unit, demagnetizing coil with Bracket to adjust for fitting.
• When the component to be demagnetised is passed into the Demagnetiser Coil in the centre through Conveyer assembly it is sensed by a sensor then demagnetizing impulse is applied which results in removing the residual magnetism to the maximum possible extent.
• The power supply unit is microcontroller based, negligible energy consumption, consistency of demagnetizing values, easy adaption to customers line.
