Proximate Analyzer

Product Details :

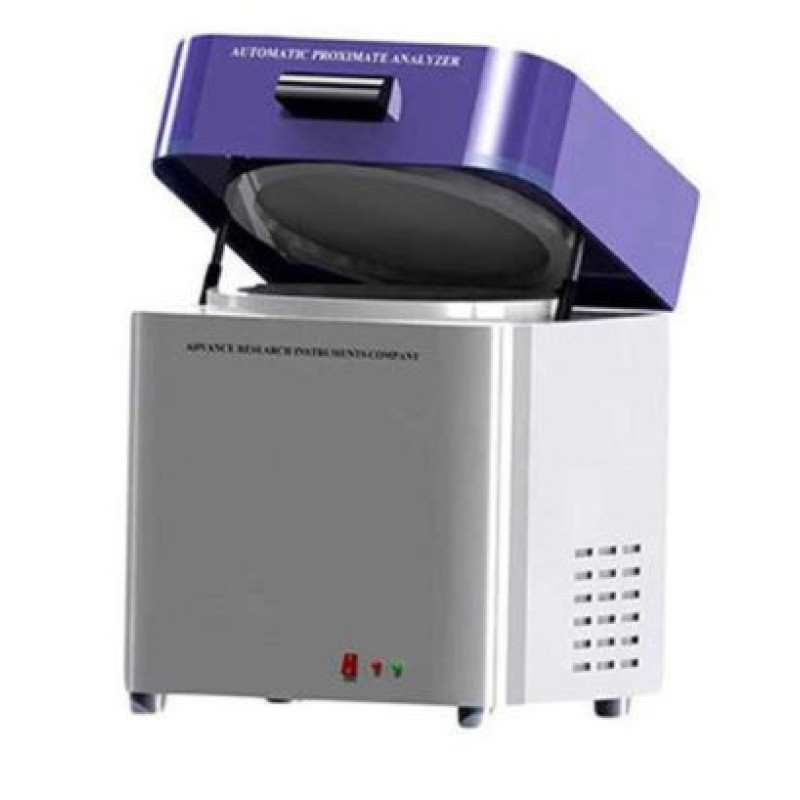

ADVANCE APA Series Fully Automatic Proximate Analyzer is based on Thermogravimetry principle for measuring Air - Dry basis Moisture, Ash, Volatile Matter & Calorific Value in Coal. Each furnace in the instrument is integrated with a high precision electronic balance. Using Thermogravimetry principle, the system quickly, automatically and continuously tests 19 samples in every experiment.

The Air-Dry basis Moisture and Ash can be tested in around 150 minutes, while Volatile Matter takes around 7 minutes per sample. The system can thereafter automatically calculate the Calorific Value, Fixed Carbon and Hydrogen content of the sample.

Key Features

• The Automatic Proximate Analyzer is programmed to perform complete and automatic analysis of Air Dry Basis Moisture, Ash & Volatile Constituent in Coal
• Latest design allows measurement up to 19 samples in every batch
• Additional furnaces can be connected for increased workload to measures 38 or more samples . All the additional furnaces are programmed to be controlled by a single computer
• Both oxidizing and inert atmospheres can be maintained as per ASTM guidelines. Provision shall be made to introduce a sweep gas or a reactant gas, and to remove product of drying, de-volatilization or combustion.
• The sample balance pedestal, crucible and the crucible covers are made of ceramic material as per ASTM guidelines. The crucible and the turn table is capable of withstanding high-temperatures and different furnace atmospheres and is not susceptible to wrapping at high temperature.
• The furnace is programmed to have maximum temperature control up to 1000°C The furnace cover of the analyser is supported by two shafts for better stability and support.
• Instrument has two thermocouples which includes one thermocouple for over-temperature protection for safety and the other one to measure and record temperature near the test crucible.
• The versatile and powerful software allows the instrument to store minimum 7 programmes for Moisture, Volatile Matter and Ash determination at temperature programmed by the user depending on the nature of sample.
• Powerful software ensures easy and accurate determination of all the set parameters
• Advanced dust suction and exhaust system fitted to remove the exhaust gases generated during the experiment
• High Precision Temperature Controller ensure Controlled, Precise and Quick Temperature rise
• The system can also calculate the the Calorific Value, Fixed Carbon and Hydrogen in the samples based on the values of the parameters obtained
• The instrument is configured with a built-in high Precision Electronic Scale to ensure precise and accurate weighing of the samples
• Latest software features Automatic Data Collection, Tabulation and Printing of all test results
• The instruments allows Complete Window Support

Technical Specifications :

Note: Due to process of continuous improvements, specifications are subject to change without prior notice

Accessories

Corundum Crucible with Cover

Controlling Cards

Weighing Shaft for Balance

Lift Motor

Carousel Motor

High Precision Thermocouple

Heater Set

Weighing Balance 0.0001g

Fuse
