MODEL

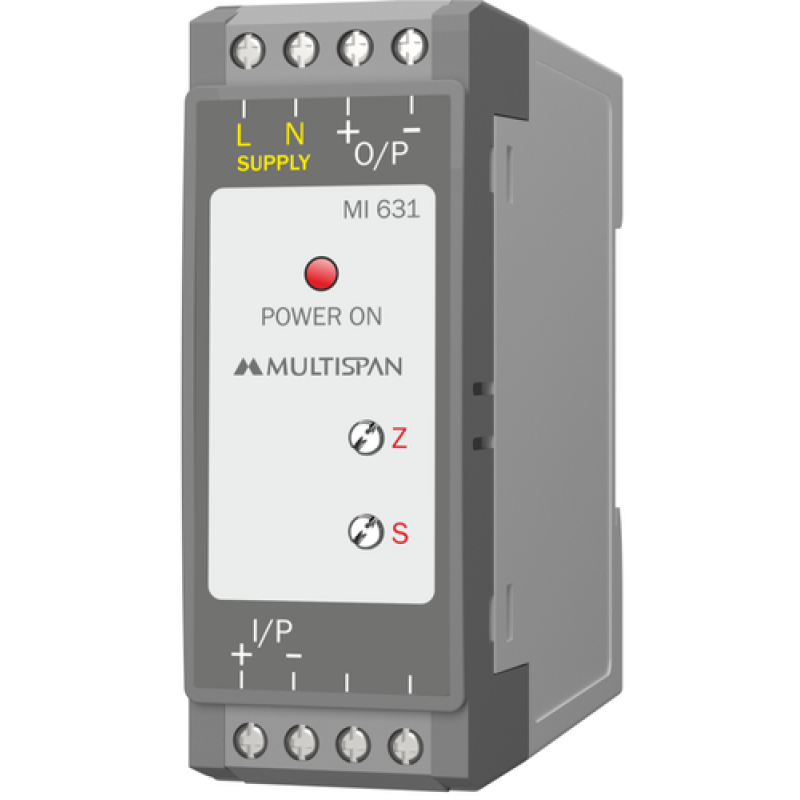

MI-631/MI-632/MI-631P

MI-731/MI-732

CTR-63

Dimention(HxWxD)mm

76x27x116

70x60x110

76x27x116

Mounting

DIN RAIL

DIN RAIL

DIN RAIL

Isolation type

Single Input-Single output/single input-double output

Input Signal

0-20 mA/4-20mA/0-10V DC /-10 V TO 10V DC/0 TO 300V DC/0 TO 3000V AC/Resistance 2W or 3W Port/Any range in Mv DC,J/K/PT-100 2W/3W

Control Output

0-20 mA/4-20mA/0-10V DC(Single or Dual output)(Factory set)

Power supply

100-250V AC/DC,50/60Hz ,SMPS/24V DC(Factory set)

Enclosure Material

Plastic

Relative humidity

upto 95%RH Non Condensing

Note

J o K input is only possible in MI-63,24V DC Transmitter Supply is available in MI-731/MI-732
