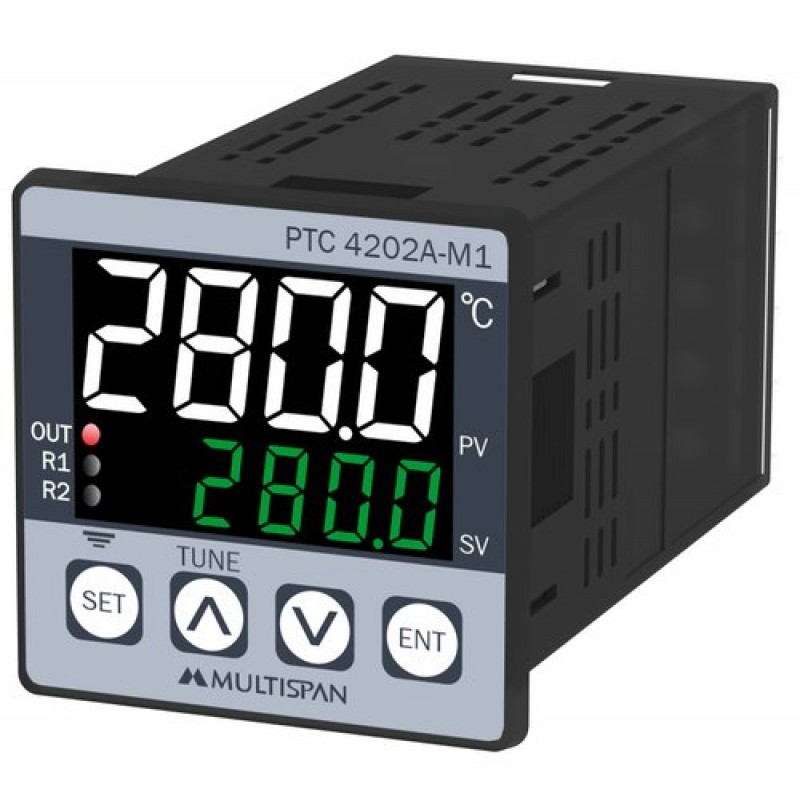

Input

J / K / PT-100 2 Wire or 3 wire,

0-10 V DC / 4-20 mA DC / 0-20 mA DC

Range

J(0°C to 600°C), K(0°C to 1200°C),

PT-100 (-99°C to 400°C & -99.9°C to 400.0°C),

0-10 VDC/4-20 mA DC/0- 20 mA DC(-999 to 9999)

Resolution

J/K/PT-100 = 1°C

PT.1 =0.1°C

0-10 VDC/4-20 mA DC/0- 20 mA DC = 1/0.1/0.01/0.001

Display

UPPER : 7 seg., 4 digit, 0.56" RED LED- Display For P.V

LOWER : 7 seg., 4 digit, 0.33" GREEN LED- Display For S.V

Dimension

(HxWxD) mm

48 X 48 X 95

Panel Cutout

(HxW) (mm)

45 X 45

Control Action

PID / ON - OFF

Operating Mode

Heat / Cool / Alarm

Control Output

2 Relay (NO - C) ,5 A 230 V AC

Analog Output (Optional)

Retransmission Output: 4 - 20 mA DC / 0 - 10 V DC

Controlling Output : 4 - 20 mA DC / 0 - 10 V DC

Communication (Optional)

RS 485 Modbus Communication

Accuracy

±1% of FSD

Mounting Type

Panel Mounting

Power Supply

100-250 V AC / 50-60 Hz

Certification

CE
